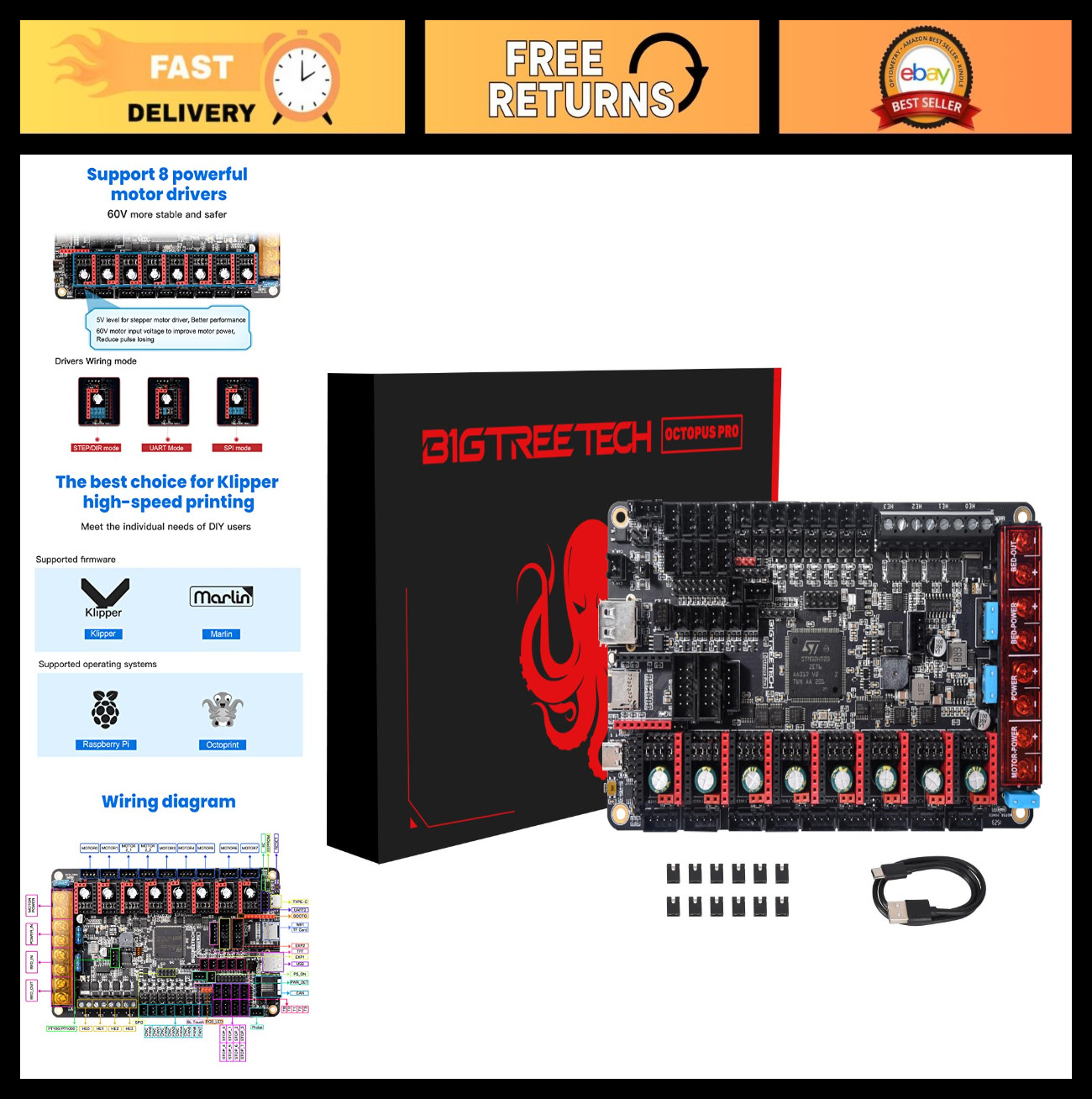

Octopus Pro V1.1 H723 Klipper/Marlin 32bit Control Board 550MHz Product Overview Main Control Chip: Octopus pro v1.1 h723 board adopts the ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, 512KB flash, processing is more stable and fast. Key Features - About Firmware: Supports Marlin and Klipper, compatible with BTT Pi V1.2/Pi 2 or CB1/CB2+Pi4b adapter, the best choice for Klipper high-speed/voltage printing, meet the individual need of DIY users, support operation systems Raspberry-Pi / Octoprint.
- Stepper Motor Upgraded: Support 8 axis powerful motor driver, support 5V level for stepper motor driver, better performance. Support max 60V motor input voltage to inprove motor power, reduce pulse losing. Support STEP/DIR/UART/SPI Mode, such as.
- Onboard MAX31865: Support 2/4-wire PT100/PT1000 temperature measurement without welding (the soldering resistance can also support 3-wire PT100/PT1000 temperature measurement. Onboard Jst interface, support Canbus function.
- Expanded function interface: Support Bltouch, biqu microprobe v2.0, eddy v1.0 auto bed leveling sensor, resume printing, Wifi. RGB light, SFS V2.0 filament runout detection. Power shundown, Proximity sensor...etc. dsiaplay compatible with HDMI5 v1.2.
- Increase Motherboard Protector Level Conversion Chip: Convert 3.3V signal to 5V signal, improve driver performance, 8 isolation chips to protector the motherboard, avoid reverse drive insertion or short circuit, the main control chip is burnt.
- Attation: If you have any problems during use, please tell us at the first time. We will give you a satisfactory solution.
Product Details - Color: black
- Display Type: touchscreen
- Item Weight: 11.7 ounces
- Material Type: PCB
- Model: US-1020000408
- Type: 3D Printer Controllers
 |
|
