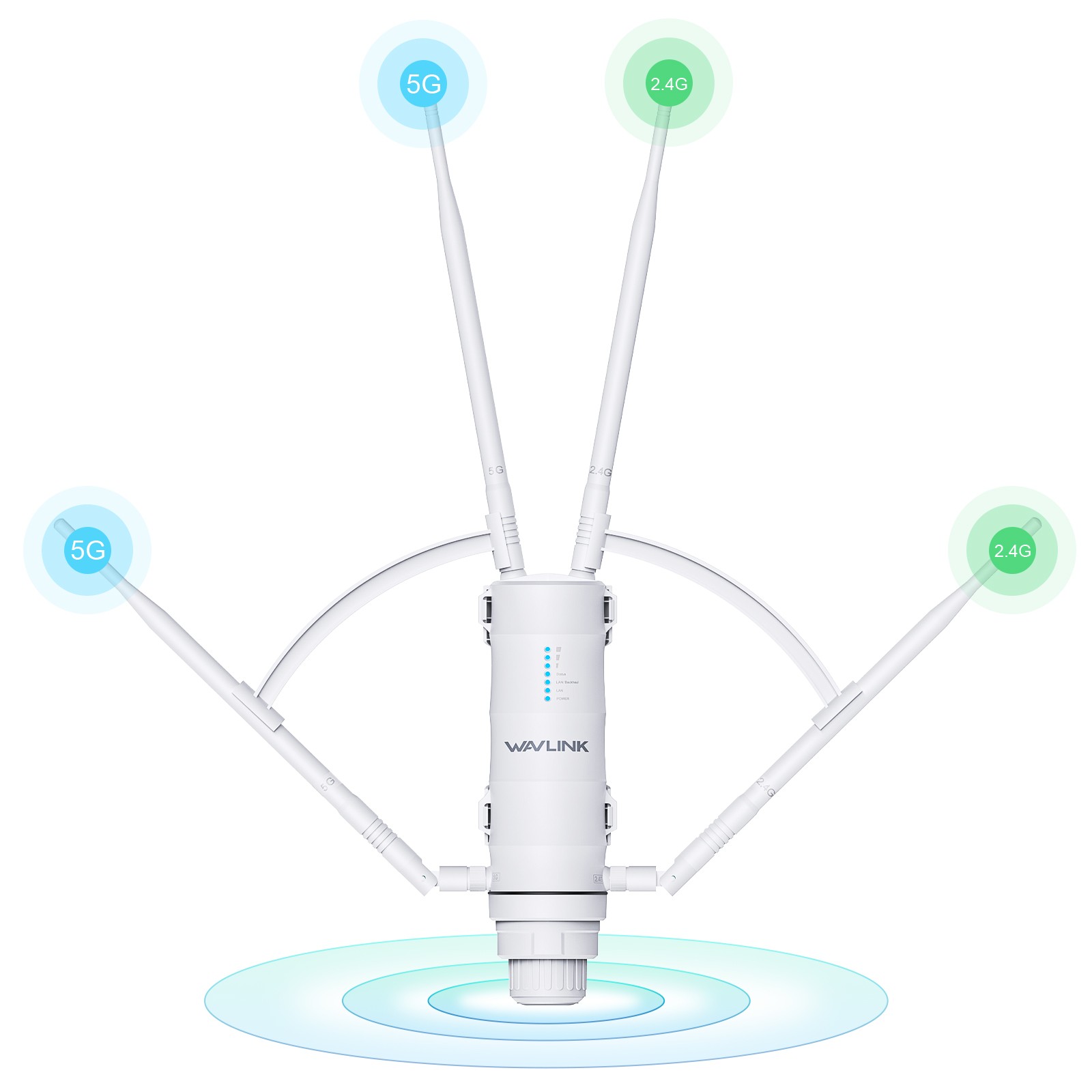

- WAVLINK AC1200 Outdoor Mesh WiFi AP/Router/Repeater/Extender: Conquer Extreme Terrains & Scale Networks Effortlessly
Unlock the full potential of outdoor Wi-Fi with the WAVLINK WN572HP3-B/WING 12HP, a powerhouse of a router that transforms
your surroundings into a seamless, industrial-strength WiFi ecosystem. Supports Fit AP Mode and Everything Mesh technology,
this wireless access point is the perfect solution for expansive properties, contractors overseeing multiple sites,
and smart cities launching public Wi-Fi initiatives - delivering blazing-fast, reliable, and far-reaching connectivity
that redefines the boundaries of wireless networking.Parental Control
Take charge of your family's screen time with granular parental controls: Set custom schedules or
filter risky websites without resetting routers manually. Guest WiFi
Safely share your internet with Airbnb guests, farmstay visitors, or wedding party attendees, while keeping your private network,
smart devices, and sensitive data fully isolated and protected. Specifications:
- Model: WL-WN572HP3-B/WING 12HP
- Frequency: 2.4GHz & 5GHz, speed up to 1,200Mbps
- Interfaces: 1x 10/100/1,000Mbps WAN, 1 x 10/100/1,000Mbps LAN
- Antennas: 4 x 7dBi omni antennas
- Operation modes: Repeater, AP(FAT/FIT), Mesh Router, Mesh Extender
- IP65 Waterproof: 15KV ESD and 4KV lightning protection
- Security: WPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise, Open.
- LEDs: 7 x status LED indicators
- Power adapter: 100-240V/50-60HZ; DC 54V(Active PoE and Passive POE)
- Support 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Support Fat AP Mode.
- Support Fit AP Mode with WAVLINK AC controller.
- Distance: Outdoor 300m(Change with the actual environment)
- Unit Size(without antennas): 21.5cm x 6.2cm x 6.2cm/8.5x 2.4x 2.4in (L x W x H )
- Antenna Length: 25cm/9.8in Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
5. Under Mesh Mode, the repeater supports max. 10 nodes(including the host devices). In the Box
- 1 x AC1200 Wireless Outdoor Access Point
- 4 x Omni Antennas
- 1 x RJ-45 Networking Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fittings
- 1 x Quick Start Guide AX1800 WiFi 6/2.4G(574Mbps)+5G(1201Mbps)/up to 128 Devices Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: GreenIn the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet CableWarm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.AX3000 WiFi 6/2.4G(573Mbps)+5G(2402Mbps)/up to 256 Devices Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: GreenIn the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet CableWarm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
|
|
