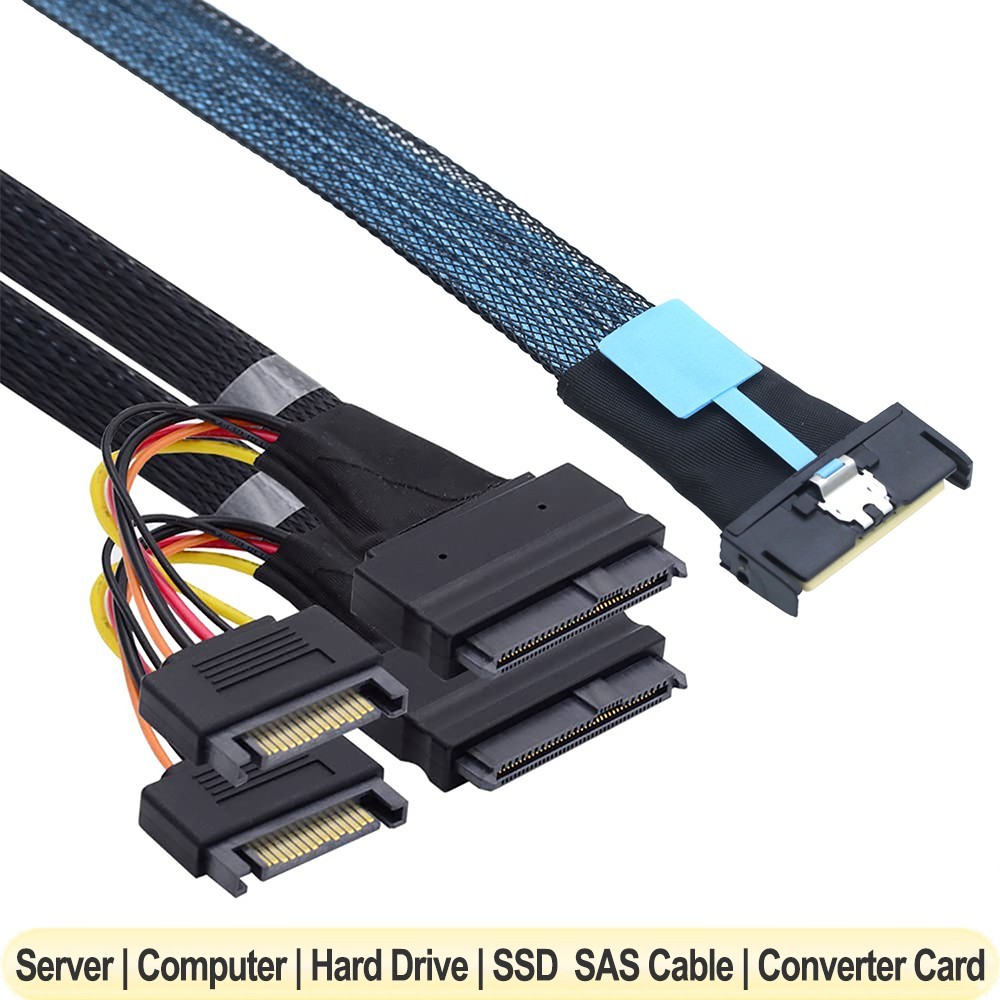

PCIE5.0 Slimline SAS MCIO 8i 74Pin to 2xSFF 8639 with 15Pin SATA Server Data Adapter CablesProduct Overview
Slimline SAS MCIO 8I to 2 SFF8639 with 15Pin SATA Power Server Data Connection Cable is a high performance data connection cable designed for servers. It adopts MCIO 8X interface, which can connect two SFF8639 devices at the same time and support 15P SATA power supply, providing stable and high-speed data transmission for servers.
Usually it is suitable for servers that need to expand hard drives, such as data centers, cloud computing platforms, enterprise-class servers, etc. By using Slimline SAS MCIO 8I to 2 SFF8639 with 15P SATA Power Server Data Connection Cable, you can easily realize multi-hard drive expansion and improve server storage capacity and performance.
Product Features:
1. High performance: it adopts MCIO 8I to support high-speed data transmission and improve server performance.
2. Expandability: two SFF8639 devices can be connected at the same time to meet the demand for multi-hard disk expansion.
3. Stable and Reliable: Supports 15P SATA power supply to ensure stable operation of the device and reduce the risk of failure.
4. Easy to install: Compact product design, easy to install, suitable for a variety of server chassis.
5. good compatibility: compatible with a variety of server motherboards and operating systems to meet different user needs.
Applications:
1. RAID (Redundant Array of Independent Disks )
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Signal Integrity
Transmission rate 24Gbps.
Meet SAS4.0 specification.
Mated Connector Impedance: 85 ohm±15%
Cable Absolute Impedance: 85 ohm±10%
Cable Pair Matching: ±5 ohm
Common Mode Impedance: 25 to 40 ohms
Insertion loss: -6dB maximum up to 4.5Ghz;
Crosstalk: -26 dB up to 24Ghz;
Key Highlights
Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum for Mini SAS.
Unmating Force: 49 N maximum for Mini SAS.
Contact Current Rating: 0.5Amperes maximum per pin when mated.
Voltage Rating: 30VAC per contact when mated or unmated.
Contact Resistance: 30mohm max. initial, 15mohm maximum after stress test.
Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown.
Packing List: 1 x SAS MCIO 8X to 2x SFF-8639+15Pin SATA Cable
