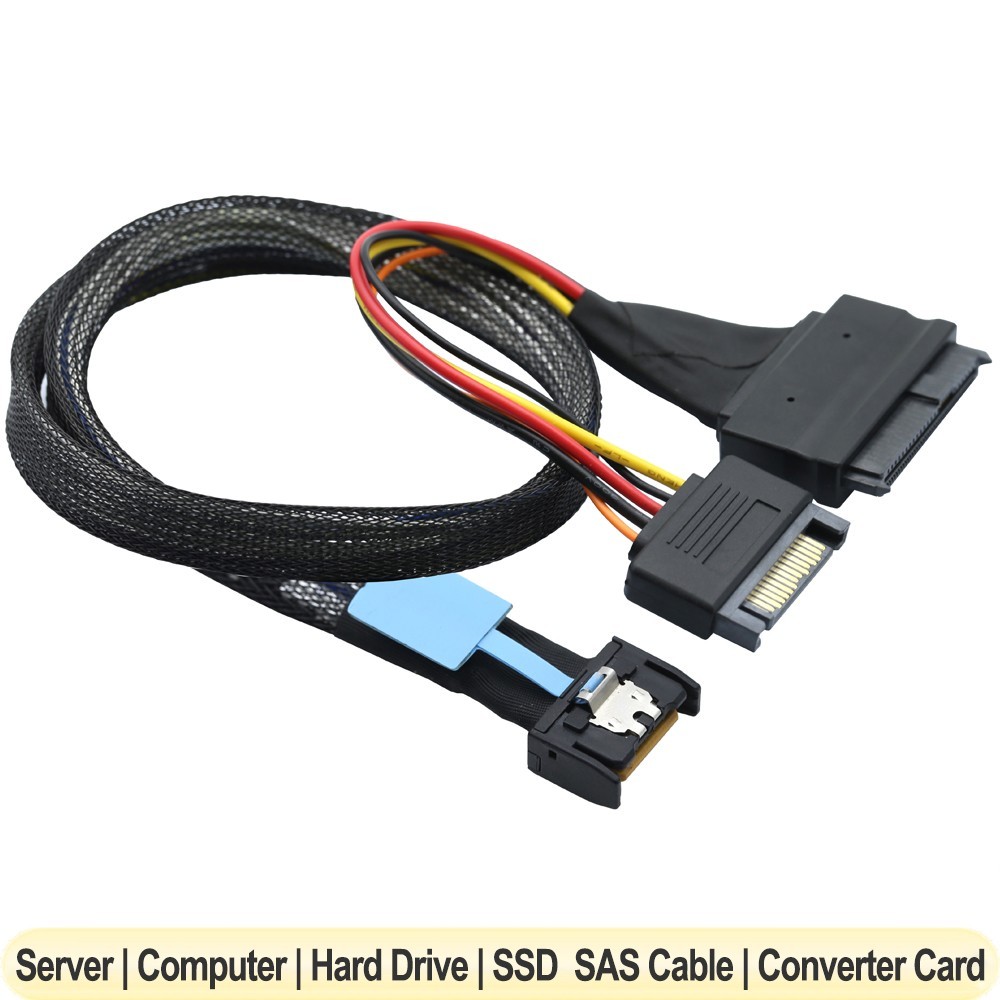

PCIE Slimline SAS MCIO 4X SFF-8654 4I to U.2 NVMe SFF-8639 with 15Pin SATA Power Adapter CableProduct Overview
Slimline SAS MCIO 4X to SFF8639 with 15Pin SATA Power Server Data Connection Cable is a high performance data connection cable designed for servers. It adopts MCIO 4X interface, which can connect SFF8639 devices at the same time and support 15P SATA power supply, providing stable and high-speed data transmission for servers.
Slimline design: compact for space-saving installation.
68Pin connector: reliable high-speed data transfer.
MCIO to U.2: easy connection for NVMe SSDs.
MCIO 4i Gen5: supports Gen5 NVMe and SAS devices.
SAS SFF-8654: compatible with SAS and U.2 drives.
Applications:
1. RAID (Redundant Array of Independent Disks )
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Signal Integrity
Transmission rate 24Gbps.
Meet SAS4.0 specification.
Mated Connector Impedance: 85 ohm±15%
Cable Absolute Impedance: 85 ohm±10%
Cable Pair Matching: ±5 ohm
Common Mode Impedance: 25 to 40 ohms
Insertion loss: -6dB maximum up to 4.5Ghz;
Crosstalk: -26 dB up to 24Ghz;
Key Highlights
Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum for Mini SAS.
Unmating Force: 49 N maximum for Mini SAS.
Contact Current Rating: 0.5Amperes maximum per pin when mated.
Voltage Rating: 30VAC per contact when mated or unmated.
Contact Resistance: 30mohm max. initial, 15mohm maximum after stress test.
Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown.
Packing List: 1 x SAS MCIO 4X to SFF-8639+15Pin SATA Cable
