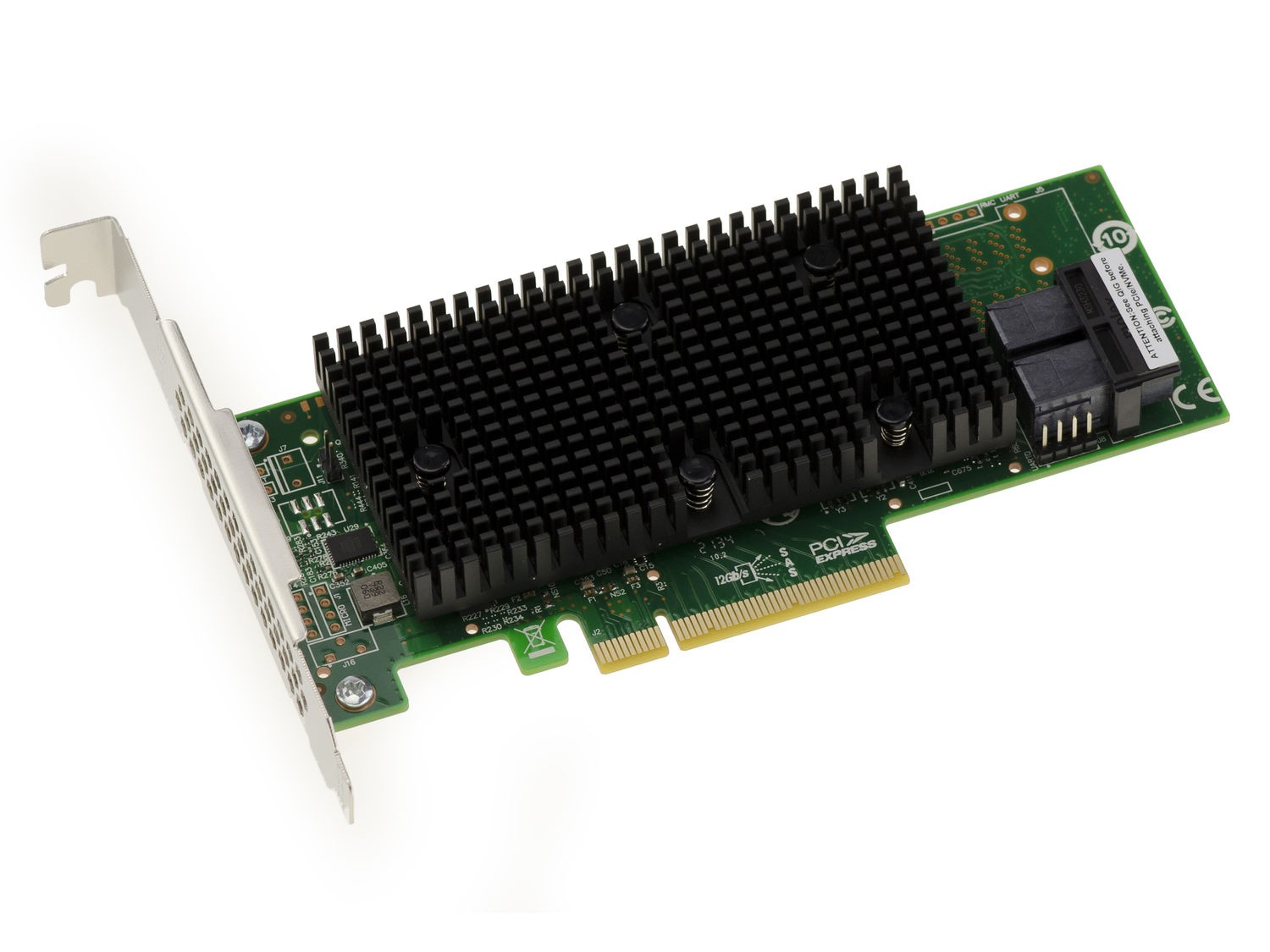

Card in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website. It allows you to add 8 internal SAS ports to a PC or server via a PCIe 3.1 (or higher) 8x (or 16x) connector.
Benefits :
Support for 8 SAS or SATA drives, NVMe SSD compatible.
PCIe 3.1 x8,
HDD, SSD and NVMe SSD compatible,
High performance, with transfer rates of 12GB/s and multiple SAS cores,
Description:
SAS 3408 controller.
8 internal ports through 4 Mini SAS HD SFF8643 connectors each supporting 4 drives.
12Gb/s data transfer rate compatible with SAS 3.0.
Maximum NVMe support: 2 SSDs at x4 or 4SSD at x2.
Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD.
PCIe 3.1 type 8x bus.
Dimensions: 155.65mm x 68.90mm.
Form factor: Low Profile, delivered with Low and High Profile brackets.
Support for Passive Copper connectors.
Operating voltage +12V +/-8% 3.3V +/-9%.
Power consumption 11.95W.
Environment: operation from 0°C to 55°C, Storage from -45°C to 105°C, RH 5 to 90%.
Lifespan greater than 4,500,000 hours.
Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debian Linux, Oracle Enterprise Linux, Fedora, and FreeBSD. Card in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website. It allows you to add 8 internal SAS ports to a PC or server via a PCIe 3.1 (or higher) 8x (or 16x) connector. High performance, with transfer rates of 12GB/s and multiple SAS cores, 8 internal ports through 4 Mini SAS HD SFF8643 connectors each supporting 4 drives. Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD. Form factor: Low Profile, delivered with Low and High Profile brackets. Environment: operation from 0°C to 55°C, Storage from -45°C to 105°C, RH 5 to 90%. Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debian Linux, Oracle Enterp
