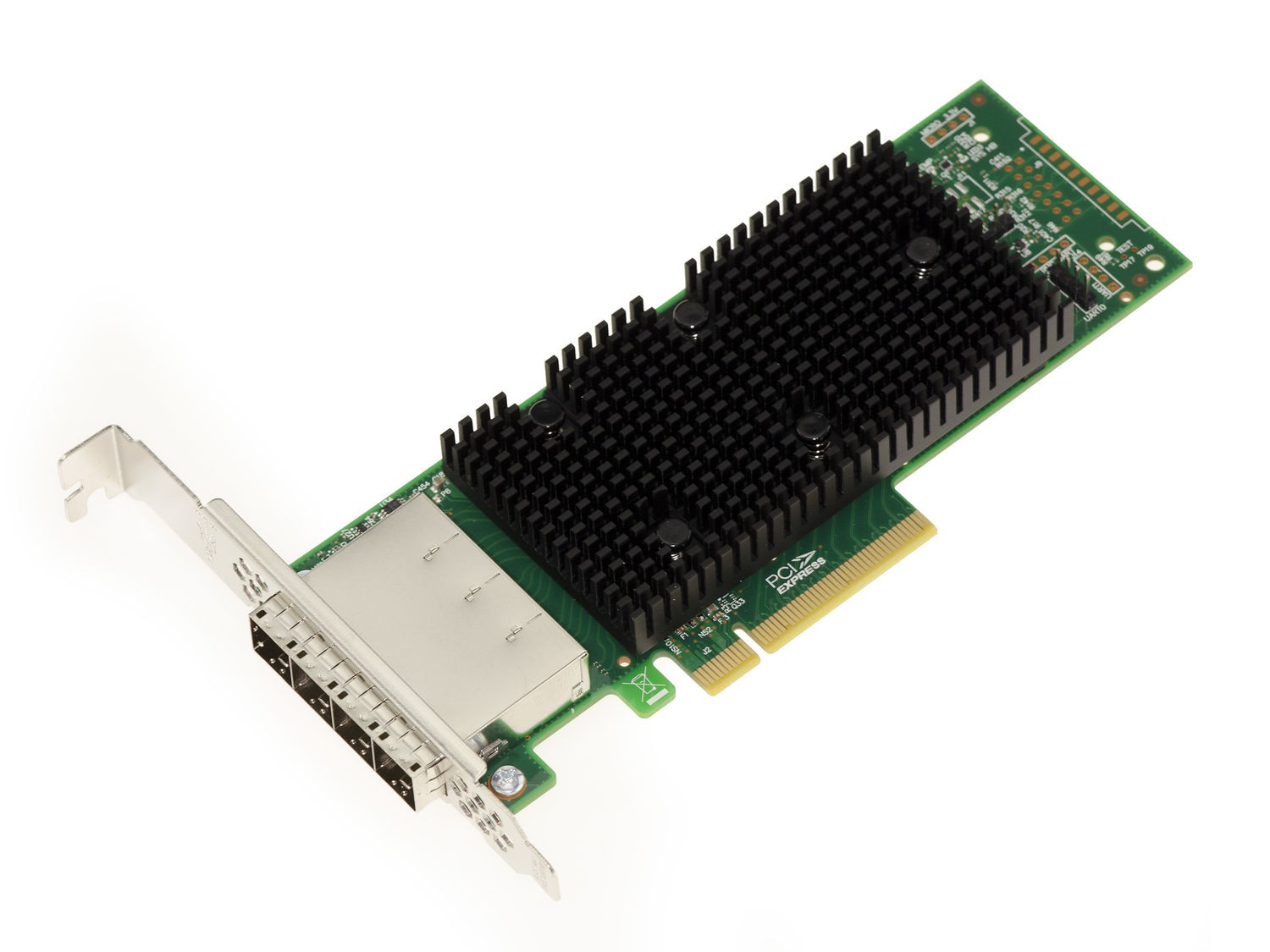

Card in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website. It allows you to add 16 external SAS ports to a PC or server via an 8x (or 16x) PCIe 3.1 (or higher) connector.
Benefits :
SAS and SATA support.
PCIe 3.1 x8,
High performance, with transfer rates of 12GB/s and multiple SAS cores,
Description:
SAS 3416 controller.
16 external ports through 4 Mini SAS HD SFF8644 connectors each supporting 4 drives.
12Gb/s data transfer rate compatible with SAS 3.0.
Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD.
PCIe 3.1 type 8x bus. Form factor: Low Profile, delivered with Low and High Profile brackets. Support for Passive Copper, Active Copper, Active Optical connectors.
Operating voltage +12V +/-8% 3.3V +/-9%.
Power consumption 11.18W.
Environment: operation from 0°C to 55°C, Storage from -45°C to 105°C, RH 5 to 90%.
Lifespan greater than 4,500,000 hours.
Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debian Linux, Oracle Enterprise Linux, Fedora, and FreeBSD. Card in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website. It allows you to add 16 external SAS ports to a PC or server via an 8x (or 16x) PCIe 3.1 (or higher) connector. 16 external ports through 4 Mini SAS HD SFF8644 connectors each supporting 4 drives. Maximum number of devices supported: 1024 SATA or SAS HDD / 24 NVMe SSD. PCIe 3.1 type 8x bus. Form factor: Low Profile, delivered with Low and High Profile brackets. Support for Passive Copper, Active Copper, Active Optical connectors. Environment: operation from 0°C to 55°C, Storage from -45°C to 105°C, RH 5 to 90%. Compatible with the following OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS, Linux, Debi
