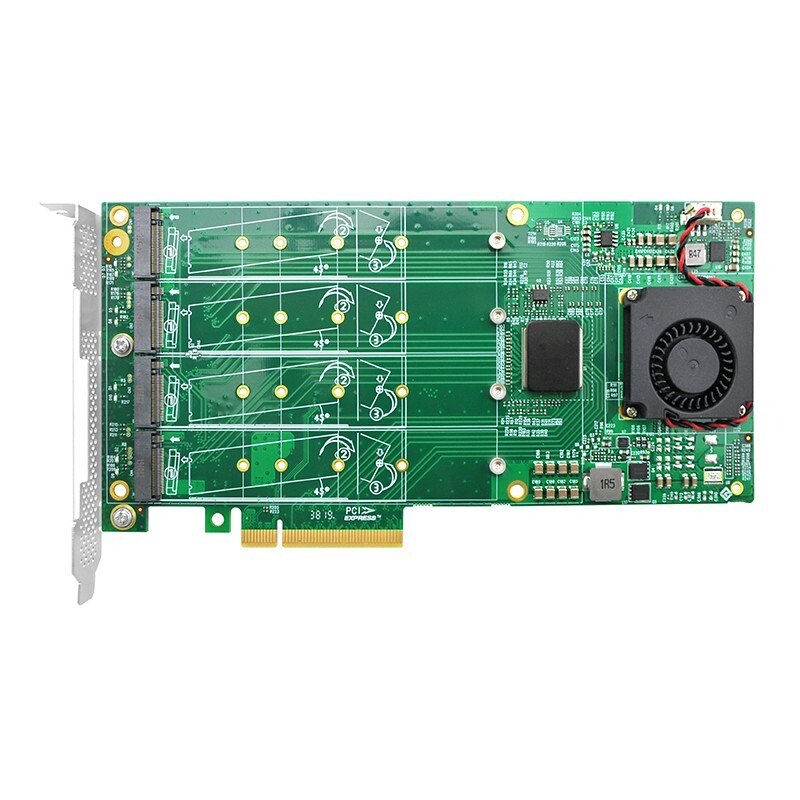

Product Model:8747-4I-M2
Product Name:Quad PCIe 3.0 x8 to M.2 NVMe SSD Adapter(Without SSD)
Chipset：PEX8724
Interface Type：4*M.2 Connectors
Support Equipment：4*NVMe SSD for 2230, 2242, 2260, 2280 and 22110mm
Host Bus Type：PCIe 3.0 x8

8747-4I-M2 NVMe Series is PCI Express x8 Gen3 Multi-Host PCIe switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.

Features

1. PCI Express basic Specification，r3.0(Be compatible with w/ PCIe r1.0a/1.1 & 2.0)
2. PCI power specificationr1.2
3. Be compatible with microsoft Vista
4. Supportaccess control service
5. Dynamic Link Width Control
6. Dynamic SerDes Speed Control
7. Support PCIe M.2 SSDs (NVMe): 2230,2242,2260,2280 and 22110 drives

8. HARDWARE

   Model

   8747-4I-M2

   Number of Drives

   4 internal

   I/O Controller

   PLX PEX8724

   Compatible Device Type

   M.2(PCIe, M-Key, NGFF)

   Interface

   PCI Express

   CONNECTOR(S)

   Device Connector

   Host Bus Type

   PCI Express x8

   ENVIRONMENTAL

   Humidity

   15% ~ 90%

   Operating Temperature

   5°C to 50°C (41°F to 122°F)

   Storage Temperature

   -25°C to 70°C (-13°F to 158°F)

   PHYSICAL CHARACTERISTICS

   Dimension

   108mm*210mm

   Weight

   260g

   WARRANTY INFORMATION

   Warranty

   2 Years

   WHAT'S IN THE BOX

   Included in Package

   1 –PCIe Quad M.2 NVMe SSD Adapter Card

   1 - full-profile bracket (installed)

   4- Screw & Nut for SSD

   4- Screw for heatsink
