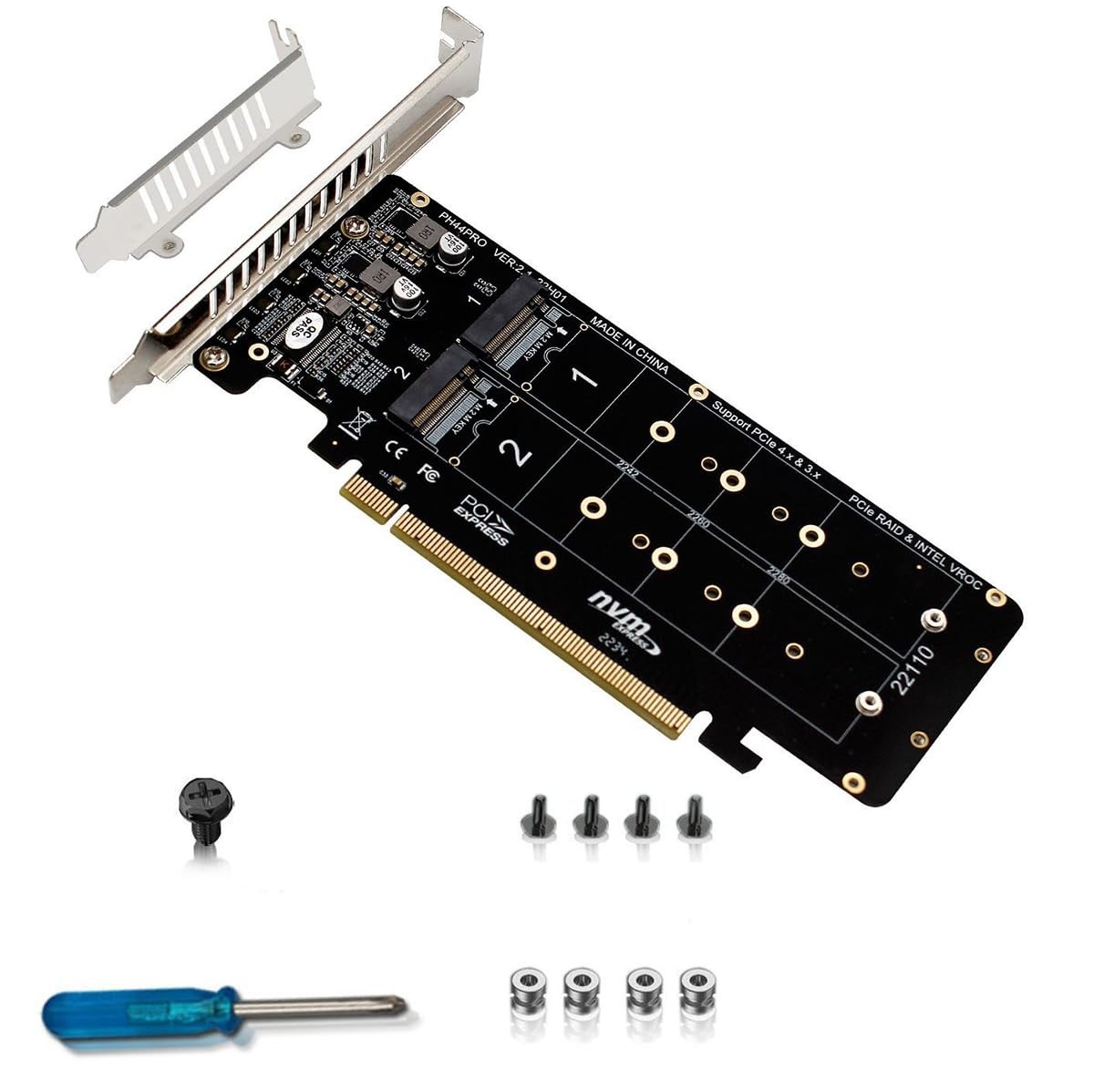

PH44PRO Dual-sided 4* M.2 M-key NVME to PCIe X16 Splitter Card 4*32Gbps 2U Server RAID Array Expansion Adapter 2242 2260 2280 22110 SSD

Note: This product can run 4 NVME at the same time, but only if the motherboard supports PCIE signal split motherboard or PCI-RAID function.

Parameters

Name:Double-sided 4-disk NVME raid PCI-X16 splitter card

Model:PH44PRO

hard disk:M.2NVME protocol SSD/M.2PCI-devices

Transfer speed:4*32Gbps

Packing size:213*125*34MM

Product weight:134.8G

Details

Dual Sided Quad Disk M.2 PCIe RAID Card PCI-E4.0 X16 Full Speed Signal Simultaneous Expansion

PCI-E4.0 RAID 0 mode, read rate up to 14000+Mb/S

Simultaneous expansion of 4 disks on both sides

with 2242 2260 2280 22110

Supports 4 X4 full-channel full-speed M.2 M-KEY NVME protocol SSDs

Supports M.2 PCle protocol expansion cards and devices

Equipped with full-height & half-height baffle

2U server small chassis installation

Soft indicator

Green light on when the disk is plugged in and powered on, green light blinks when reading and writing.

High-end PCB circuit board with gold-plated surface, good conductivity, strong wear resistance, anti-oxidation and high fire rating.

Note: This product can run 4 NVME at the same time, but only if the motherboard supports PCIE signal split motherboard or PCI-RAID function.
hard disk:M.2NVME protocol SSD/M.2PCI-devices .Transfer speed:4*32Gbps .
PCI-E4.0 RAID 0 mode, read rate up to 14000+Mb/S.with 2242 2260 2280 22110 size NVMe SSD.
Supports 4 X4 full-channel full-speed M.2 M-KEY NVME protocol SSDs .Supports M.2 PCle protocol expansion cards and devices.
Equipped with full-height & half-height baffle .2U server small chassis installation.
