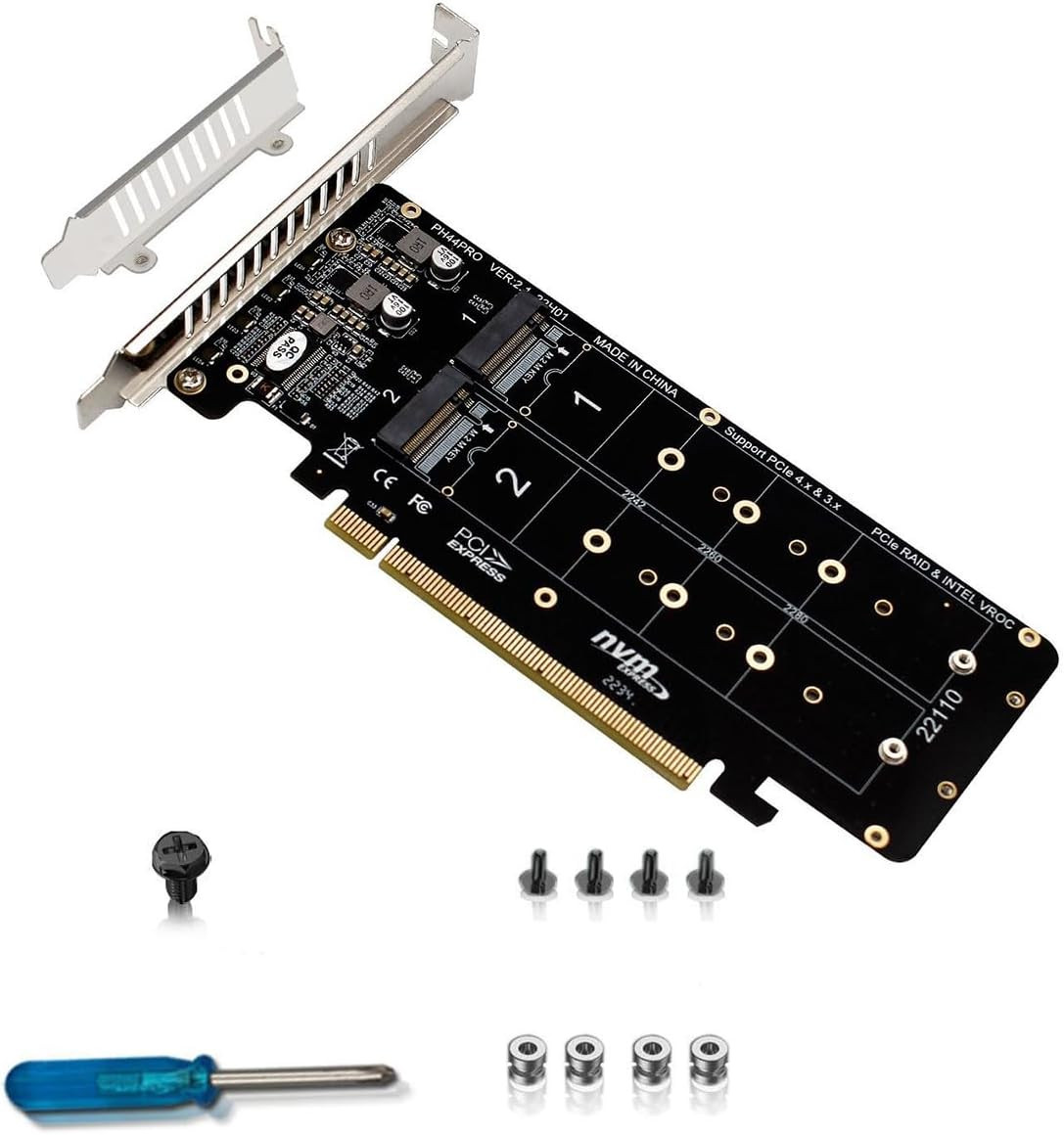

PH44PRO Dual-sided 4* M.2 M-key NVME to PCIe X16 Splitter Card 4*32Gbps 2U Server RAID Array Expansion Adapter Support 2242 2260 2280 22110 SSD

Note: This product can run 4 NVME at the same time, but only if the motherboard supports PCIE signal split motherboard or PCI-E RAID function.

Parameters

Name:Double-sided 4-disk NVME raid PCI-E X16 splitter card

Model:PH44PRO

Support hard disk:M.2NVME protocol SSD/M.2PCI-E devices

Transfer speed:4*32Gbps

Packing size:213*125*34MM

Product weight:134.8G

Details

Dual Sided Quad Disk M.2 PCIe RAID Card PCI-E4.0 X16 Full Speed Signal Simultaneous Expansion

PCI-E4.0 RAID 0 mode, read rate up to expansion of 4 disks on both sides

Compatible with 2242 2260 2280 22110

Supports 4 X4 full-channel full-speed M.2 M-KEY NVME protocol SSDs

Supports M.2 PCle protocol expansion cards and devices

Equipped with full-height & half-height baffle

Support 2U server small chassis installation

Soft LED indicator

Green light on when the disk is plugged in and powered on, green light blinks when reading and writing.

High-end PCB circuit board with gold-plated surface, good conductivity, strong wear resistance, anti-oxidation and high fire rating.

• Note: This product can run 4 NVME at the same time, but only if the motherboard supports PCIE signal split motherboard or PCI-E RAID function.
• Support hard disk:M.2NVME protocol SSD/M.2PCI-E devices .Transfer speed:4*32Gbps .
• PCI-E4.0 RAID 0 mode, read rate up to 14000+Mb/S.Compatible with 2242 2260 2280 22110 size NVMe SSD.
• Supports 4 X4 full-channel full-speed M.2 M-KEY NVME protocol SSDs .Supports M.2 PCle protocol expansion cards and devices.
• Equipped with full-height & half-height baffle .Support 2U server small chassis installation.
