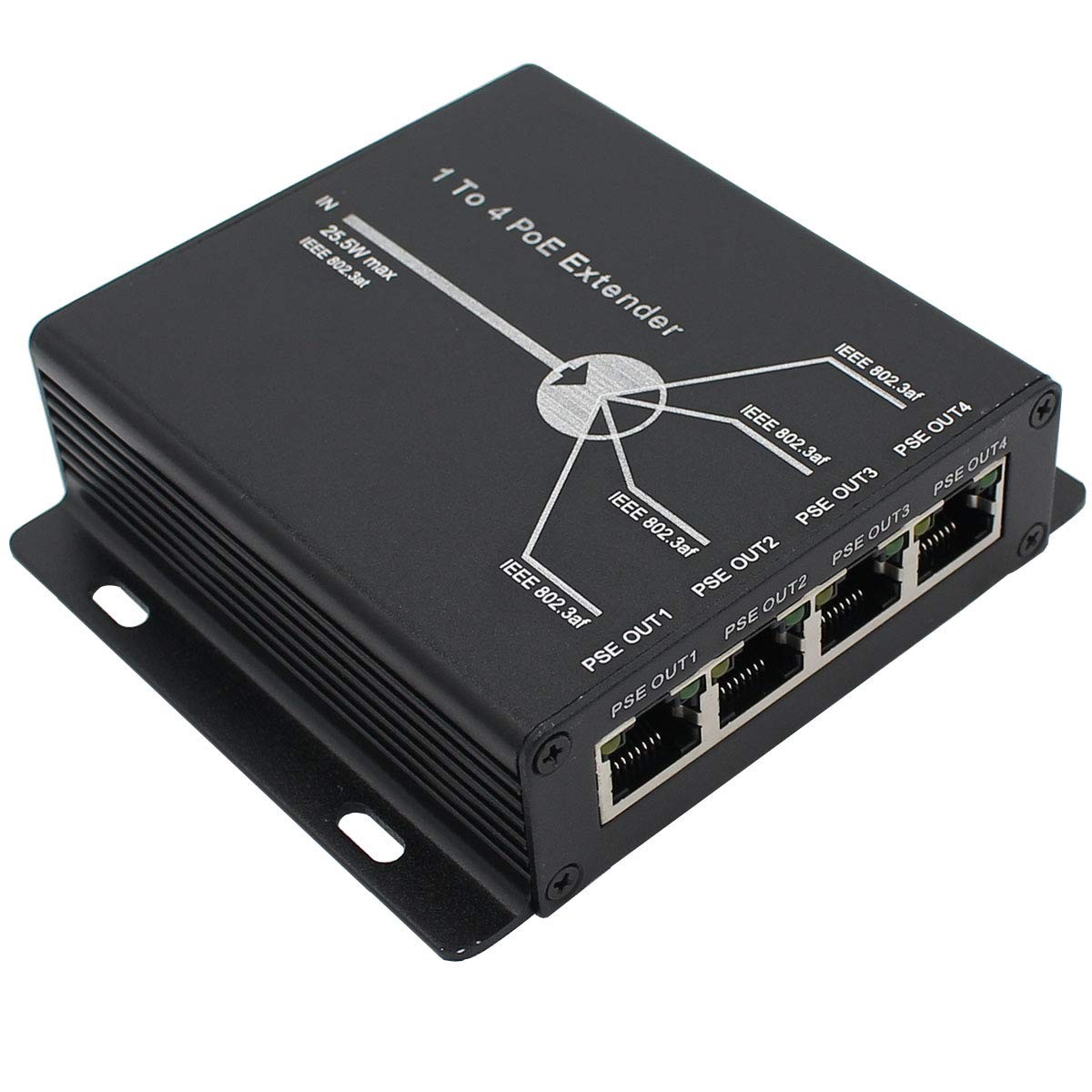

POE Extender RJ45 4-Port 10/100M IEEE802.3at (Power-in) to IEEE802.3af (Power-Out) for Ethernet/PoE Power AP, IP Camera, IP Telephone and Other Network equipments

• A PoE-powered PoE-sourcing ethernet switch. Used for network equipment with PoE signal function, as relay equipment to achieve signal extension. Total output power 25.5w, Maximum output each channel of 4 ports 15.4W. Not able to provide all 4 port at 15.4W in the same time. Total output power of 4 ports should be less than 25.5w.
• Applicable Range: A Used with AP, IP camera, IP telephone and the other network equipments in the situation of the lack of power line or far away from the power outlets. A Installed at hotels, schools, buildings,etc.When using and installing, please strictly follow the product power and related electrical parameters, and follow the product instructions.
• Network Medium: Cat5 or better UTP cables(less than 120m) ;PoE input-1 RJ45 port, PoE output: 4 RJ45 port;
• PoE Standard: IEEE 802.3at (power-in),IEEE 802.3af(power-out);PoE Port Power: input power-25.5Watts,output power-24Watts;PoE Power Supply Type:1/2(+),3/6(-),Mode A,End-Span;
• NOTE: 1. Using high quality transmission cable can transmit up to 100~120m. With poor cable, transmission may not able to reach 80meters. 2.If the power consumption in front end device is too large, its working voltage may not be enough. 3.Cascading series too much will cause low voltage, may not working. 4.Strictly refer to poe extender Manual Guide to install the equipment,that will perfectly meet with your project requirement .

Features:

PoE Injector Adapter, Comply with IEEE 802.3af Power over Ethernet;
10/100M Supported;
Extender the range of PoE an additional 120 meters;
Automatically detects and protects PoE equipments from being damaged by incorrect installation;
Plug-and Play no configuration required;
4Port PoE extender can forward both ethernet and PoE power for 4 terminal equipment via Cat5 UTP cable.

Product Review:
4-Ports PoE Extender has 5 10/100M PoE ports,among them,1port for power input,and others for power output. Comply with The power input is 25.5W in total;Power output for single port is 15.4W(MAX).
PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cables. It offers you great flexibility to extand the distance of PoE.

Other Specification:
Port Description: PoE input-1 RJ45 port, PoE output: 4 RJ45 port;
Network Medium: Cat5 or better UTP cables (less than 120m);
Repeater Mode: Store and forward;
MAC Address Table: 2K;
Packet Buffer Memory: 48 Byte;
Switching Capacity: 400Mbps;
PoE Standard: IEEE 802.3at (power-in),IEEE 802.3 af(power-out) ;
PoE Port Power: input power-25.5Watts,output power-24Watts;
PoE Power Supply Type:1/2(+),3/6(-),Mode A,End-Span;
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
Working Temperature: 0°C~40°C,Working Humidity: 10%~90%,No Condensation,Storage Temperature: -30°C~70°C,Storage Humidity: 5%~90%, No Condensation;
Dimension:105*93*28.5mm.

Note:
To prevent the water seeping into the extender,please keep PoE extender away wet environment.
Package Include:
1x 4-Port 10/100M PoE Extender
