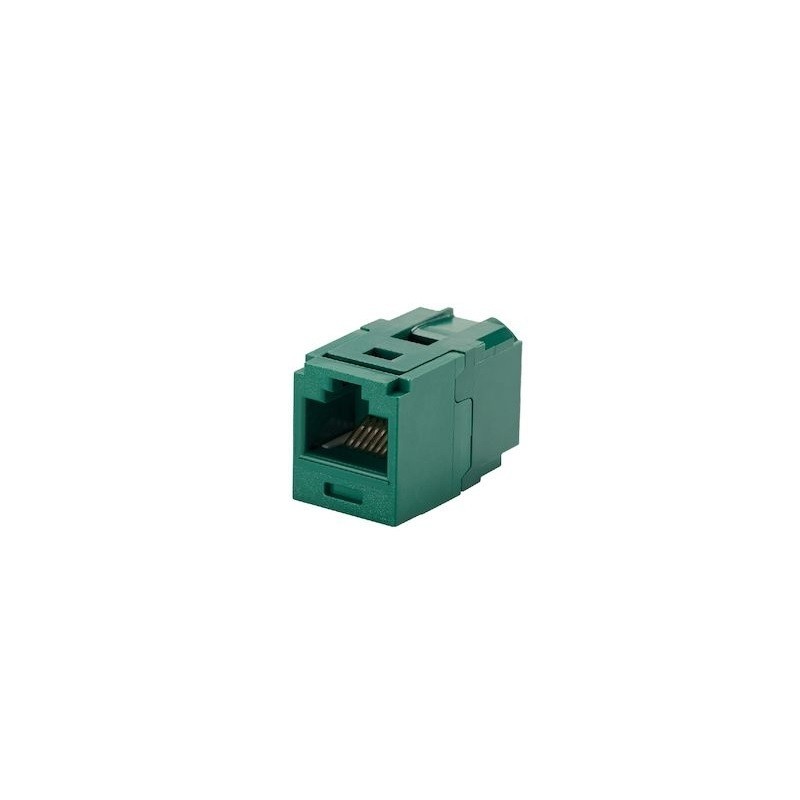

Panduit CC688GR Cat-6 Jack Module Unshielded UTP RJ45 8P8W Green Click Thumbnails to EnlargeDESCRIPTION
• The Mini-Com Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is Green.
STANDARDS
• Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
PRODUCT SPECIFICATIONSProduct Type Jack Module
Performance Level Category 6Connector Type
Coupler Module
Termination Style CouplerBody Material PolycarbonateContact Material Plated Phosphor BronzeModule Type Mini-ComWiring Scheme
T568A/T568BShield Type
Unshielded (UTP)Resistance Properties
Heat-ResistantColor GreenOverall Length (inch) 1.09Overall Width(inch) 0.62Overall Depth(inch) 1.09Overall Height(inch) 0.71Shipping
