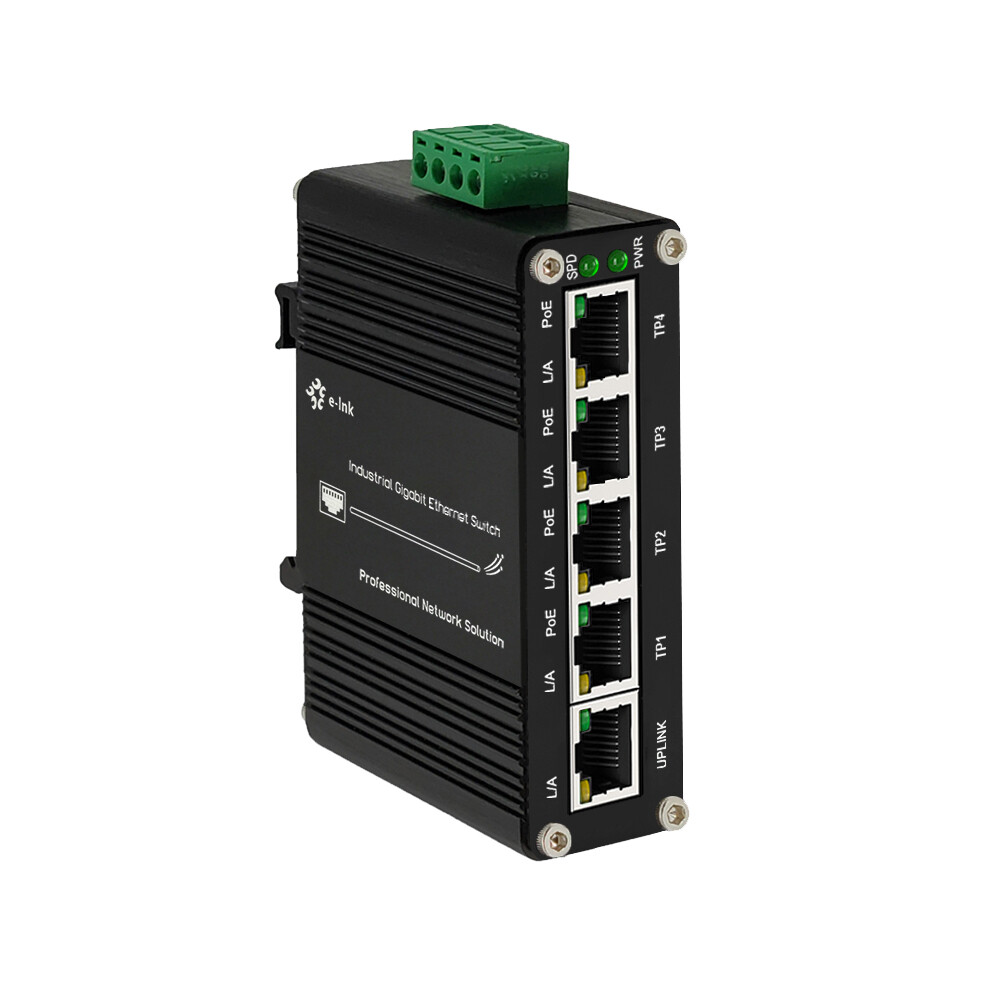

PoE Mini Industrial 5 Ports Gigabit Ethernet Switch Hardened 1000Mbps 12~48V DCMini Industrial 5-Port Gigabit (PoE) Ethernet SwitchOverviwe
LNK-IMC005GP Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet PoE+ Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet class="a-spacing-mini" style="box-sizing: border-box; list-style-type: disc; overflow-wrap: break-word; margin: 0px;">Interface: Gigabit Ethernet Unmanaged PoE+ Switch is equipped with 4 10/100/1000BASET RJ45 ports & 1 Uplink Port，RJ45 ports support auto-negotiation, auto MDI/MDIX, full/half-duplex(10/100Mbps half/full duplex and 1000Mbps full duplex)
- Wide Input: The Ethernet Switch supports 12~48V DC(Terminal Block) power input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
- 2 Installation Methods: The Gigabit Network Switch come with 35mm din-rail mounting bracket and wall mount accessory, supports Din-Rail & Wall Mount Installation
- Industrial Grade Quality : The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40, With reliable and simple operation against vibration and shock, and wide operation temperature range (- 40°F - 176 °F) for harsh environments
- Industry Standards&Variety Usage: Our Network Fiber Optical Switch Complies with IEEE 802.3az Energy Efficient Ethernet (EEE). At the same time, it also supports 802.3x Flow control. With its reliable design and ease of use, the ethernet PoE switch is a great choice for integrating networks consisting of network devices such as IP phones, IP cameras, and wireless access points between remote locations. It can be use in traffic, mine field, factory, office, homes, and so on.
Technical Indexes
Product Features:
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Injector: supports 12~48V DC input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Up to 120W port
The Ethernet Switch supports 12~48V DC(Terminal Block) power input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC).
Further cost reduction
This is simpler PoE+ uses standard cabling (Cat 5/6) to work with normal Ethernet interfaces, so no "new wires" are required. This means that existing network cabling infrastructure can be utilized without the need to run high voltage AC power or separate power connections for each embedded switch.
Industrial Grade Quality
The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40, With reliable and simple operation against vibration and shock
Application scenarios of Our POE Swich
With its reliable design and ease of use, the Ethernet PoE Switch is a great choice for integrating networksconsisisting of network devices such as IP phones, IP cameras and wireless access points between remote locations. It can be use in traffic, mine field, factory, office, home and so on.
Package Content
- LNK-IMC005GP Media Converter x 1
- Quick Start Guide x 1
- L-shaped wall mount bracket x 1
Note：Due to the colour of the monitor, the colour of the photos may differ slightly from the actual product.
