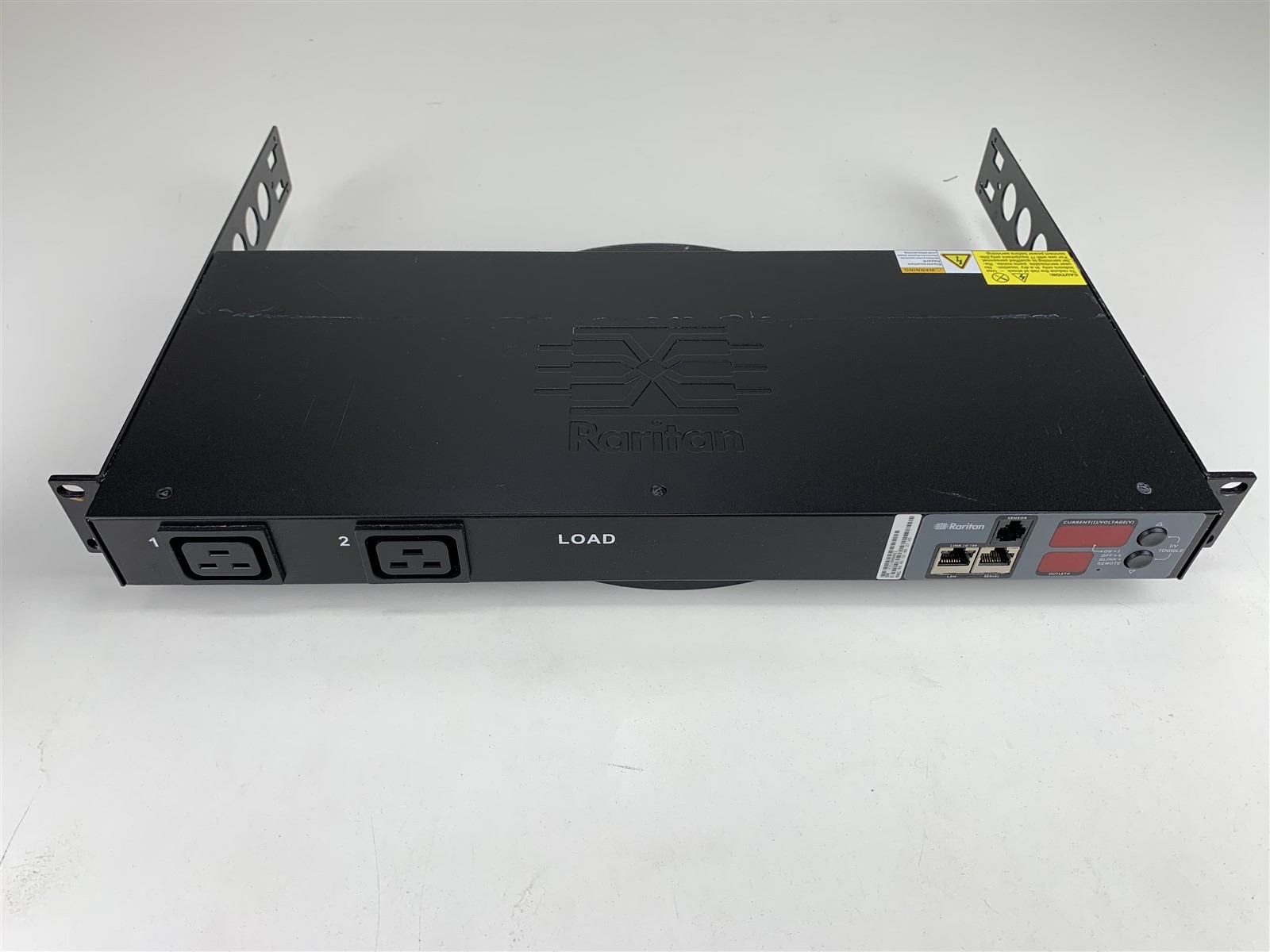

Raritan Dominion PX-3211 Power Distribution Unit 1U 1PH 100-240V 16A C20 C19

ITEM DESCRIPTION:
Tested. Good working condition.
(Please Note: This item is used and may have marks, scratches, small dents, scuffs or other cosmetic defects as to be expected from a used item. Please see photos.)

ACCESSORIES:
None. No manual, cables or other accessories.

Raritan Dominion PX-3211 Features:

• Power Sequencing (User Defined)
• Receptacle Status Retention
• Circuit Breakers
• Power Alarm
• Environmental Monitoring
• Seven-Segment LED Display
• IP Auto Configuration with DHCP, BOOTP
• Flexible Remote Access Options
• Dynamic DNS Support
• IPMI and SMASH CLP
• HTML User Interface
• Outlet Grouping
• Virtual Outlets
• Integration with Multiple Raritan Solutions
• Up to 256-bit AES Encryption
• SSL Certificate
• Event Logging
• Local and Remote Authentication and Authorization
• User-Rights Per Outlet

Raritan PX-3211 Specifications:

MechanicalHeight1.7 in. (44 mm.)Width17.3 in. (440 mm.)Depth11.3 in. (287 mm.)Weight10.5 lbs. (4.8 kg.)Rack Space1UMountingRack mount brackets includedColorBlack powder coatEnvironmentalOperating Temperature5-45 degrees CelsiusHumidity5-90% RH non-condensingAltitude10,000 feetInputNominal voltage100 - 240V AC, single phaseMaximum current per line20ARated current16A per lineLoad capacity3.8 kVAFrequency50-60 HzInput type2 x IEC C-20OutputNominal voltage100 - 240V ACCurrent draw16A or 20A per line depending on output cableOutput type2 x IEC C-19MeteringInputCurrent, voltage and power for each lineOutputCurrent, voltage and power for each outlet and total PDU
Current and trip state (on/off) for each circuit breakerRack Environment ManagementOptional temperature and humidity sensors (RJ-12 connector)Interface and Protocol Support10-100 Mbps Ethernet (RJ-45 connector)RS-232 serial (RJ-45 connector)
SNMPv2, v3 TRAPs, GETs, SETs
Web browser and command line interface accessApprovalsFCC Part 15, A; UL and c-UL 60950, RoHS compliant
