Rack Power Distribution Units (PDUs)
Rack PDU PX4-532A-E7V2K1

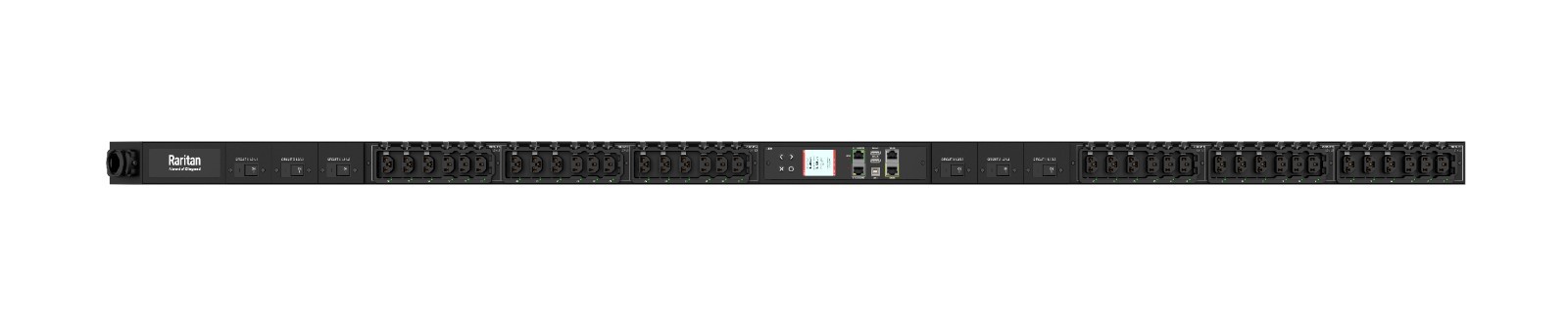

Raritan PX4-532A-E7V2K1 36-Outlets 3-Phase 60A 208V Power Distribution UnitSpecifications
Model Number: PX4-532A-E7V2K1
Brand: Raritan
Alt Part Number(s): PX4-532A-E7V2K1
Product Type: Power Distribution UnitSpecifications
Brand: Raritan
Model: PX4-532A-E7V2K1
Number of Outlets: 36
Phase: 3-Phase
Maximum Input Current: 60A
Rated Input Current: 48A
Nominal input voltage: 208V
Nominal output voltage: 200-208V
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: Rack-Mountable
208V, 3-Phase Delta (L-L), 17.3kVA, 48A
Energy MeteringVoltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering AccuracyClass 0.5 meter
Metering per input lineYes
Metering per Branch Circuit BreakerYes
Metering per Output ReceptacleYes
Remote Outlet SwitchingYes
Power Quality MonitoringVoltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor
Outlet Power DistributionAlternating Branch
Replaceable ControllerYes, hot-swappable
Environmental Sensor ReadyYes
Compatible SensorsTemperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.
PDU LinkingLink up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
CascadingPhysically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
LinkingYes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.
Networking(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Remote ManagementHTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API
Onboard DisplayColor, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.
Input Plug 208V Delta 60A IEC 60309 3P+G 9Hr
Nominal Voltage 208V
Maximum Input Current 60A
Rated Input Current 48A
Power Capacity 17.3kVA
Cord Length 10ft/3m
OutputNominal Voltage 208 - 240V
Receptacles (Output Connections) (18) C13, (18) Cx
Overload Protection 6
Dimensions (WxDxH) 56mm x 65mm x 1780mm
Unit Weight 24 lbs
Shipping Weight 30.2 lbs
Shipping Dimensions (HxDxW) 1940 x 255 x 125 mm
Mounting Temperature/Environment 60 C
Operating Relative Humidity 85%
Operating Elevation 0-10000ft
Inlet metered + outlet Metered + switched Power Distribution Unit, 208V Delta 60A IEC 60309 3P+G 9Hr, 17.3 kvA, Bottom/Angled input, 36 outlets: 18x C13, 18x combined C13/C19 outlets, FEATURES: Billing-Grade (± 0.5%) Energy and Power Quality Metering [kW, kVA, V, A, Voltage and Current Harmonic Distortion, True and Displacement Power Factor, Voltage Dip and Voltage Swell, Neutral Current and Voltage, Current Inrush, and Crest Factor]. Remote network monitoring via HTML, JSON-RPC, Redfish API, SSH, Telnet, MODBUS/TCP, and SNMPv3. Hot-swappable Controller with onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Physically cascade 32 PDUs under one Ethernet port or 16 PDUs with USB. Linking (Shared GUI) of up to 8 PDUs. Environmental monitoring [temp/humidity] capable – up to 32 sensor functions or 12 sensor packages. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. Data logging via HTTP/S or MQTT. Wi-Fi Capable. USB Webcam Capable. iOS or Android App. Dual 10/100/1000 Ethernet port. Mechanical locking function for Outlets. 16A Breakers, 10kAIC. Breaker metering and alarming (0V detection). Maximum ambient temperature 60°C at full load. Attested passed VAPT (Vulnerability Assessment and Penetration Testing), IPv6 Ready, ISO 27001 compliant.
Vendor: Raritan; Part Number: PX4-532A-E7V2
