ezcap279 SDIDigi HDMI SDI Video Capture Card Recording Box

Thanks for purchasing ezcap279SDIDigi SDI Full HD Recorder.
It is with a 5inch screen, can record1080p60video from SDI or HDMI source video,
and playback the recorded file directly, one key record and play,no need a computer.

Features:

- 100% Genuine original,brand new and high quality,buy with confidence !

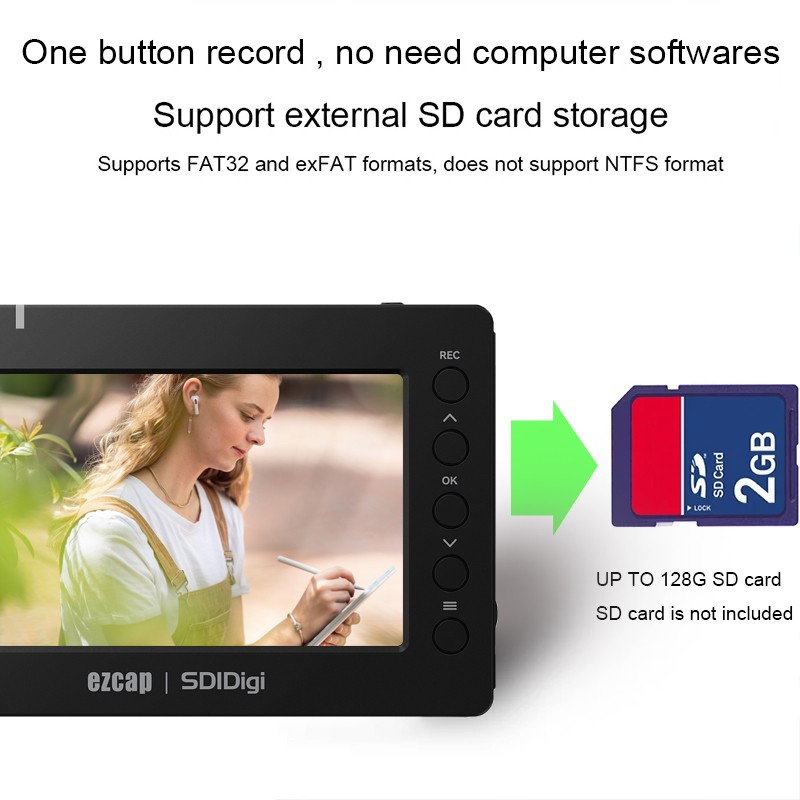

- Record SDI or HDMI video, save into SD card (no SD card), up to 1080P60fps resolution.
- With clear 5" HD color screen, can playback recorded video directly.
- Record your voice with video together.
- Unique PAUSE RECORDING technology.
- Image snapshot during reording.
- Download recorded files to your computer.
- Schedule Recording and Time Watermark.
- Speaker and battery inside.


Specifications:

- Interface: USB 2.0
- Video Input: HDMI ® 1.4 enabled, SDI (micro SDI jack, 3G SDI)
- Audio Input: HDMI, SDI, microphone input (3.5mm 4-pole CTIA standard)
- Video Output: HDMI, 5 inch screen
- Audio Output: HDMI, Speaker, Earphone (3.5mm 4-pole CTIA standard)
- Storage: SD card, supports FAT32 and exFAT, and NTFS is not supported.
- Input / Pass-Through Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(50p/60p),
1920 x 1080 (50i/60i/25p/30p/50p/60p).
- 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(60p), 1920 x 1080 (50p/60p)
- Record Format and Quality: H.264 MP4, Max 22Mbps@1080P60fps, 3.8GB per file
- Power Supply: 2900mAh lithium battery inside, Playback-approx.2.5 hours, Preview- approx.2 hours,
HDMI record-1.5 hours, SDI record-1 hour. USB Type-C jack,
DC 5V2A (5V2A USB power adapter is not included).


Package Contents:

ezcap279 SDIDigi SDI Full HD Recorder x1
Manual x1
USB-C cable x1
SDI adapter cable x1
Audio adapter cable (CTIA to TRS adapter) x1

Without retail box and other accessories,if any need,pls contact us before purchase.

PLS Attention :
