New Arrival 1080p SDI HDMI Video switcher for live streaming


Item Introduction :

Our new product ! Brand new and high quality,buy with confidence!

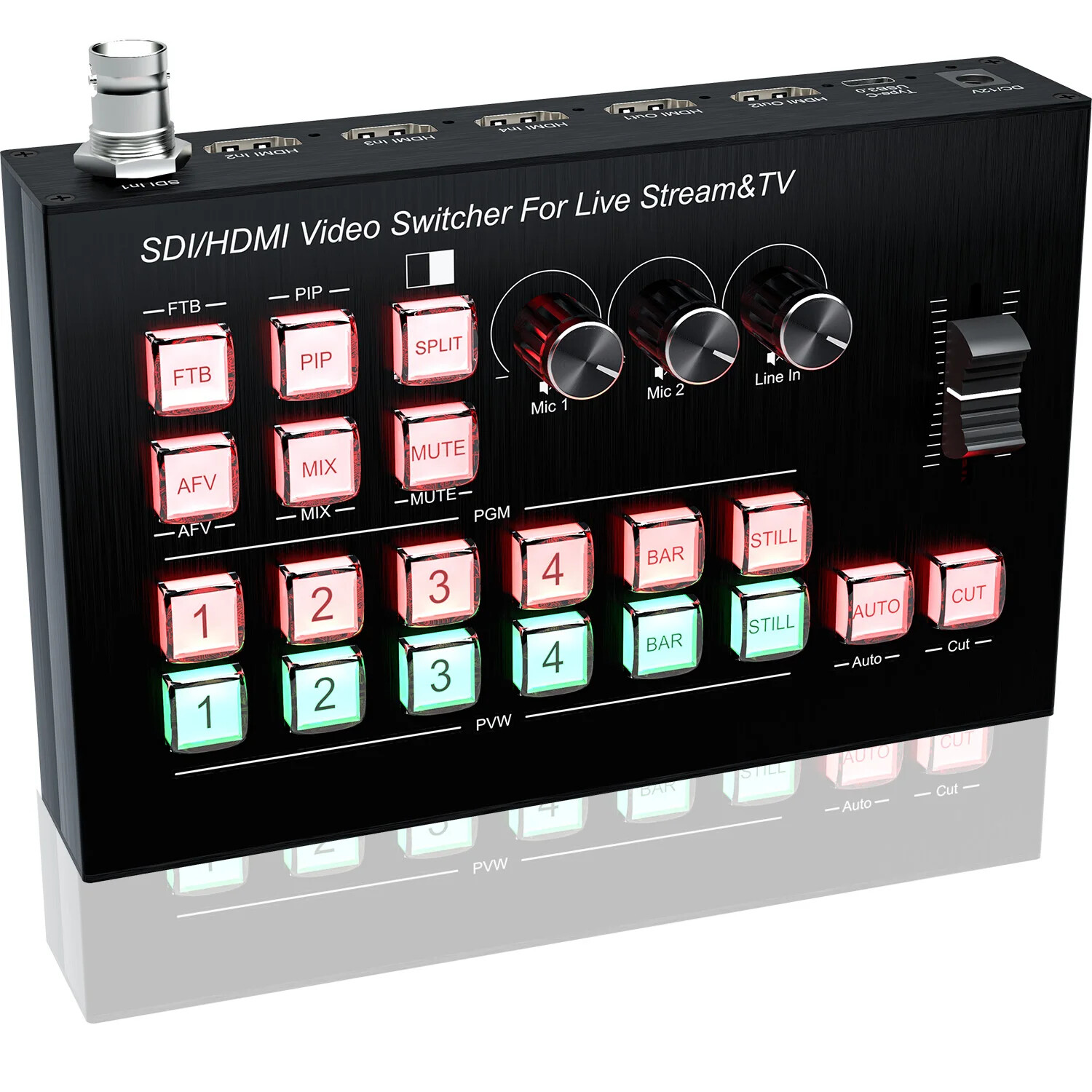

This SDI/HDMI video switcher for live streaming, 1 SDI input and 3 HDMI input supportresolution
1080P@60Hz, and support HDCP1.4 standard, support HD embedded audio orexternal analog audio,
after mixed processing, can be embedded in the output HD signalor output from the analog port.

All resolution of the input signal is automatically adapted,the output resolution is 1920X1080@60Hz,
To satisfy the requirements of Radio andtelevision program production, live production of interviews
and speeches, outdoorexperience events, school courseware production and other video switching needs.
It canbe used in live streaming and various event venues.

Features:

* 1 SDI signal input supports a resolution of 1920*1080/60hz,
and supports 100m lossless transmission;
* Easy convert broadcast-level SDI signal;
* 3 HDMI input; 2 HDMI output;
* One Type-C 3.0 capture port, supports video format YUY2;
* Support OSD display input channel signal, resolution information, volume information;
* Support MIC,LINE IN,HD mixing output (LINE OUT fixed mixing output);
* Support HD audio following (fixed following PGM);
* Support LINE OUT and HD audio output;
* Support power-off save settings;
* High quality keys, color backlight design.


Specifications:

SDI input resolution Up to 1080P@60Hz
SDI transmission rate up to 2.97Gbps
SDI input cable length .................. Max 100 meters, using RG6 75R HD digital video cable
HDMI input resolution 1080P@60Hz
HDMI output resolution 1080P@60Hz
Type-C 3.0 capture and push network traffic video format ......................... YUY2,MJPEG
Supports audio format PCM
The maximum bandwidth transmission 148.5MHz
Maximum transmission rate 1.65 x3Gbps
The input cable length ............................ 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length .......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current 0.85 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range (-15℃ to +55℃)
Size 180x130x52(mm)
The weight 557g


Package Includes:

1. SDI/HDMI Video switcher 1PCS
2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs)1PCS
3. DC/12V power adapter1PCS
4. User manual1PCS

Without retail box and other accessories,if any need,pls contact us before purchase.

PLS Attention :

1. Due to different factory produce batches,sometimes real item may be a little different,this is uncontrollable,
pls understand,if you have any special demand,pls must confirm with us first before purchase ,thanks~
2. We are not responsible for any customs duties or any fees which is charged at your country
(if any fees,buyer has to pay for it and bear all the corresponding loss)
3.All products are shipped without retail box and Come from China.
4.As to the delivery time,it depends on post office,customs department and your ability to solve customs clearence,
etc. many factors,IF you need it very Urgently , pls contact us to pay extra for DHL/Fedex etc. Express shipping !
5. If the product is defective, or sent wrong or any problem,pls contact us timely for solution
6. PLS do NOT leave any bad response, or open a dispute before contacting us,it will be appreciated,thanks :)
7.If you do not agree with our policies,please do not make order,thanks for your support!
