SHARK TECHNOLOGY®

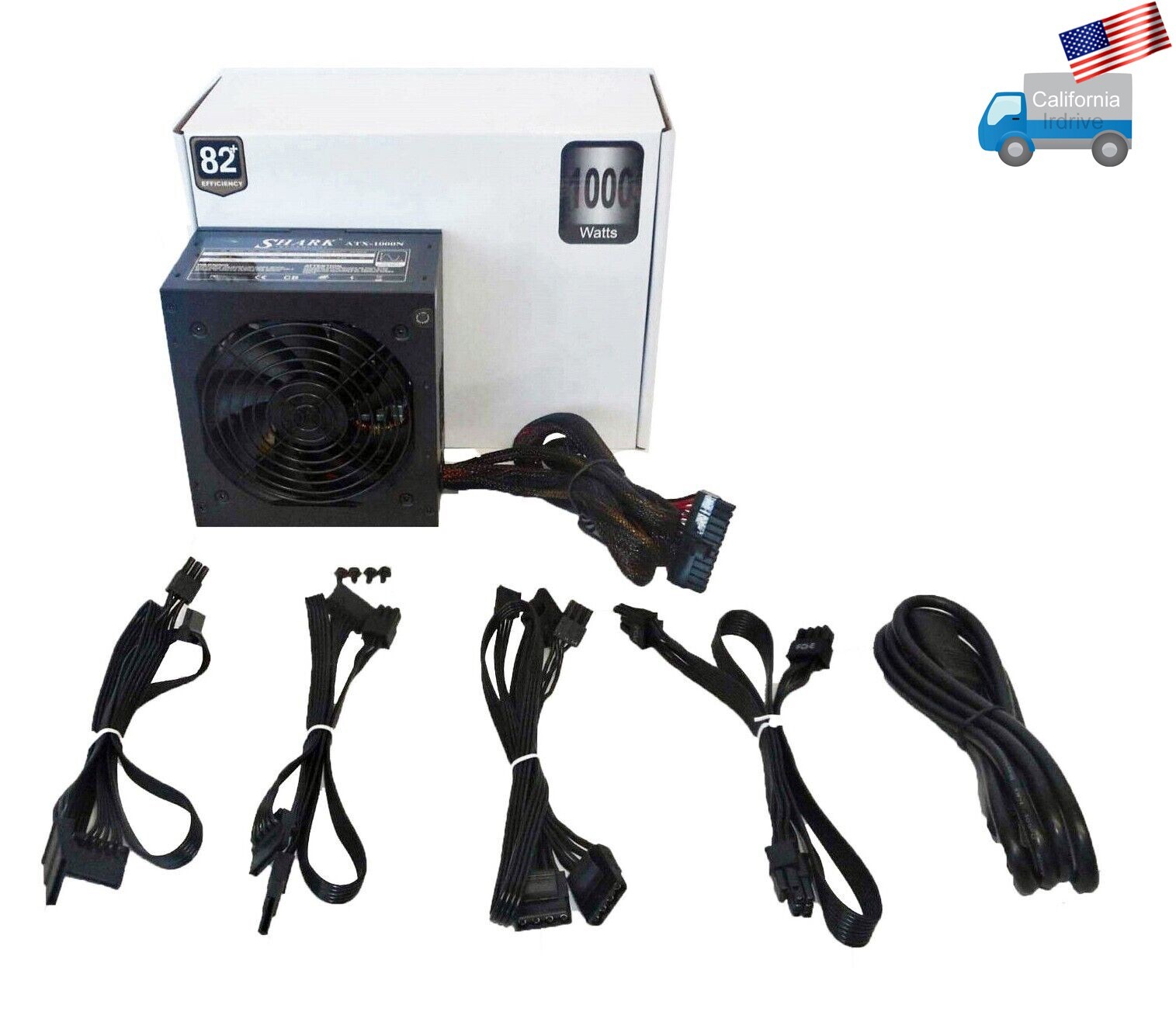

1000-Watt Modular Cable Gaming PC Power Supply
Full AC Range Auto-Switch
Energy Efficient & Quiet
Bonus: 4pcs new factory sealed SATA III 6Gb/s data cables
Wanta better ATX power supply that can provide stable power to your PC systemwithout frequent reset, self shut-down, hang-up, or sensitivity to ACinput voltage fluctuation? Look no further.ThisSHARK TECHNOLOGY® unit comes bundled with all matching flat modularcables, 4 installation screws, and UL certified safety power cord.. Allcables are long enough to fit perfectly in gaming cases where PSU arebottom mounted as well. Modular cable management design allows use ofonly the cables you need to improve internal airflow and reduce clutter.New flat modular cables now take up even less space and further improveairflow. This unit can operate anywhere in the world automatically withany AC input voltage from 100V to 240V. The sophisticated highefficiency design allows the unit to operate with less heat and lowercooling fan noise than most PC power supply models in the market.
- 1000-Watts Output Power
- Flat modular cable design for neat internal system cabling with better internal airflow
- Low heat & Low noise operation
- Silent low-RPM over-sized cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- High efficiency power conversion allowing lower electrical bill
- Less than 1W standby power consumption - EuP 2010 Lot 6 Compliant
- ATX 12V/ EPS 12V compliant
- RoHS Compliant Lead-free - made with all hazardous-free components
- Smartfan controller with on-board thermostat dynamically control fan speedto ensure ultra quiet operation - virtually fanless quiet
- ATI Radeon®RXReady
- Supports nVidia®graphic card
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD Dual/Quad Core/FX-series A6/A10 6-core, 8-core, Ryzen desktopsystems
- Safe to Operate - Designed and tested to meet major international safety agency standards
- 6x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
- Made with high quality safe components as well as high current capacity wires
- Complete 6*StarTMelectrical protection features built-in
- Eachunit is verified for safety by going through a thorough HI-POT test.Additionally, a 1,500 Volt AC spike is introduced at each ATX-1000N unitfor up to 60 seconds under 10mA. Only units that can pass these testsget to be shipped out
Connector Details:
(1) Main power connector (20+4 pin)
(1) 12V (4pin/8pin) power connector
(3) Molex peripheral power connector
(6) SATA power connector (right angle type)
(1) Floppy power connector(2) PCI-Express (both 6+2pin) power connector
Additional Accessories Included:
- 5-foot long UL certified safety power cord
- Installation screws (4pcs)
Dimensions:150 x 160 x 86 mm
Electrical Specifications
AC INPUT :100-240V Full Range with Automatic AC input Switching.AC Voltage Selection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically.Input Frequency Range: 50-60Hz. Maximum Input Current: 15A
DC & Power1000W
Complete Built-in Electrical Protection System:
- Over Voltage Protection
- Under Voltage Protection
- Over Current Protection
- Short Circuit Protection
- Over Power Protection
- Over Temperature Protection
Power Good Signal100~500msHold Up Time>16 Temperature0~45 degree C
Operating temperature range: 10 - 45 degree C (50 - 113 degree F)
Operating relative humidity range: 20 to 90%
Energy-efficient: over 82% under 20%, 50%, or 100% load under 110v and 220v AC.
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
