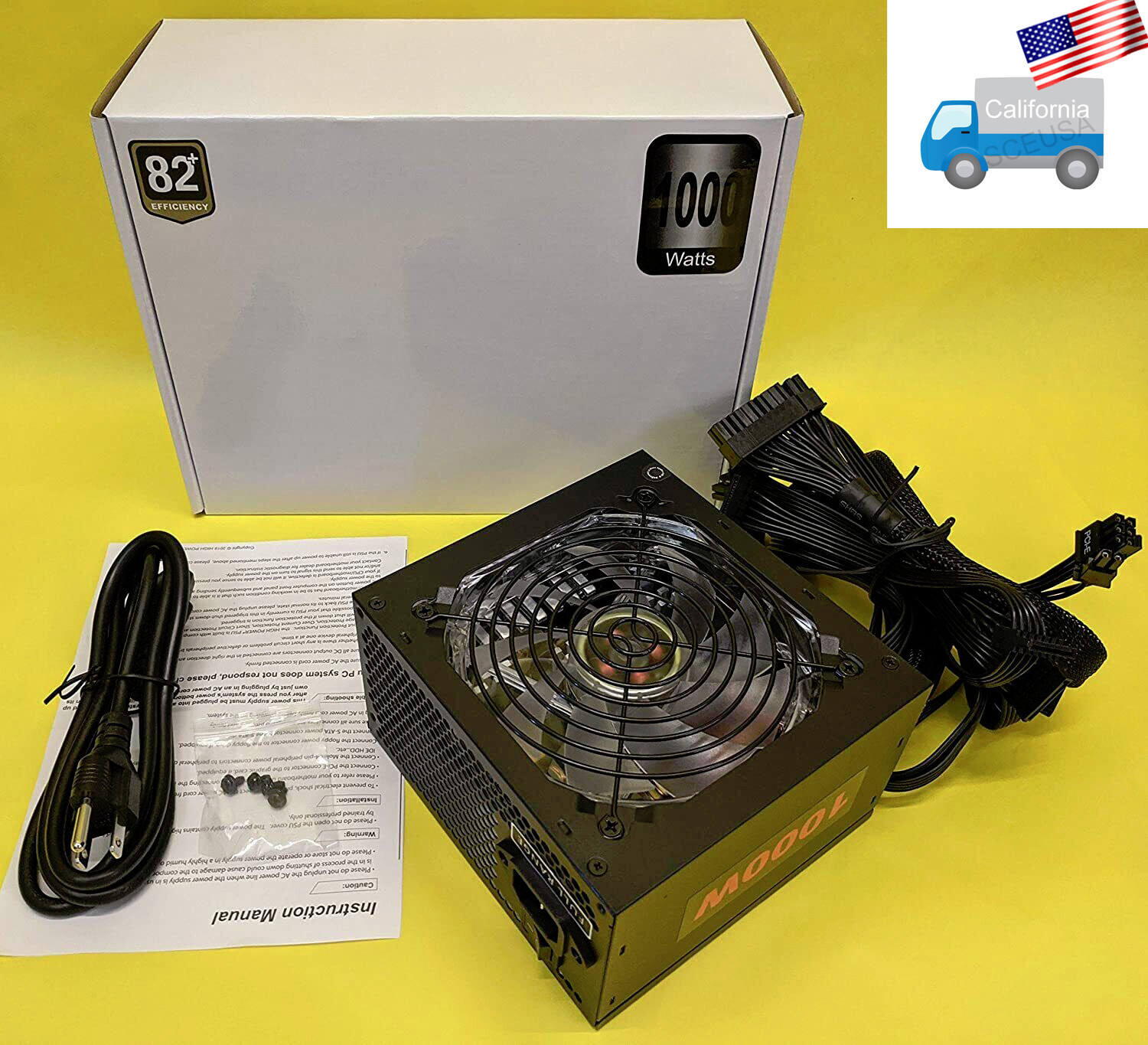

Great PSU for Gaming ! SHARK TECHNOLOGY ® 1000-Watt High Efficiency Blue LED Fan Gaming UL safety AC power cord,
Black installation screwsBonus: anti-vibration pad (see last 2 pictures) Bonus: 4pcs new factory sealed SATA III 6Gb/s data cables
H i g h E f f i c i e n c y
This unit can operate anywhere in the world automatically with any AC input voltage from 100V to 240V. The sophisticated high efficiency design allows the unit to operate with less heat and lower cooling fan noise than most PC power supply models in the market. L o w H e a t L o w N o i s e
- 1000-Watts Output Power
- Low heat & Low noise operation
- Silent low-RPM 120mm cooling fan
- Active PFC for reduced harmonic distortion
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- Typical 85.77%, average 84.16% efficiency
- High efficiency power conversion allowing lower electrical bill
- Dual +12V Output Rails
- Smart fan controller with on-board thermostat dynamically control fan speed to ensure ultra quiet operation - virtually fanless quiet
- Quad blue color LEDs turns on when the PSU is on
- ATI Radeon® Ready
- nVidia® Ready
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Haswell, Core i7, Core i5, Core i3, Intel X, Extreme Edition, and AMD 64, Athlon, Ryzen 3/5/7/9, Vega Multi-Core based systems
- Safe to Operate - Designed and tested to meet major international safety agency standards
- 5x SATA Power Connectors and 2x PCI-Express (6+2pin) Power Connectors
- RoHSCompliant - made with hazardous-free components
- Complete 4*StarTM electrical protection features built-in
- Each unit is verified for safety by going through a thorough HI-POT test. Additionally, a 1,500 Volt AC spike is introduced for up to 60 seconds under 10mA. Only units that can pass these tests get to be shipped out.
ConnectorsDetails
1 x 20+4pin Main Power Connector (supports both 20 & 24pin motherboards)
-20 inches
1 x 4+4 12V Power Connector (supports standard 2x2 P4 OR 2x4 8pin 12V boards) -21 inches
5 x SATA Power Connector (on two separate line of cables for unrestricted reach)
2 x Peripheral Molex Power Connector (on 2 separate line of cables)
1 x Floppy Drive Power Connector2 x 6+2 PCI-E Power Connector, supports 6pin OR 8pin PCIe SINGLE USE Graphic card. (on two separate line of cables for unrestricted reach)
Smart Design: Cables are long with power connectors strategically spaced out on several cable lines to support various system configurations in standard as well as larger tower cases
Better Mechanical Design
Massive 120mm fan draws heat from CPU area and cools the power supply at the same time. Special slippery circular tube design black anodized fan-guard allows air to flow in smoothly and quietly while providing protection against unintended installation injury.
This SHARK TECHNOLOGY® unit comes with cables that are long enough to fit perfectly in gaming cases where PSU are bottom mounted as well.Want a better power supply that can provide stable power to your PC system without frequent reset, self shut-down, hang-up, or sensitivity to AC input voltage fluctuation? Look no further
Technical Specifications
AC INPUT : 100-240V Full Range with Automatic AC input Switching. AC VoltageSelection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically. Input Frequency Range: 50-60Hz. Maximum Input Current: 10A
AC INPUT 115V/230V - 60/50Hz DC OUTPUT +3.3V +5V +12V1
+12V2 -12V +5VSB 1000W Max
Combined
Peak Watts 28A 30A 38A
38A 0.8A 3A 1000W
- Maximum Power Output: 1000W
- Manual power shut-down rocker switch
- Dimension: 150mm x 86mm x 145mm (the 145mm length is the side that extends inside the case when installed)
Complete Built-in Electrical Protection System:
- Over Voltage Protection
- Over Current Protection
- Short Circuit Protection
- Over Power Protection
Operating temperature range: 0 - 40 degree C (32 - 104 degree F)
Storage temperature range: -20 - 85 degree C (-4 - 185 degree F)
Operating relative humidity range: 5 to 90% RH
Energy-efficient: typical 85.77%, average 84.16% efficiency
MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Power Good Signal 100~500ms Hold Up Time >16 ms Efficiency 82% Plus Dimensions: 150x160x86mm
Safe to Operate. Safe to the Environment.
Lead-FREE
Cadium-FREE
Mercury-FREE
Hexavalent chromium-FREE
PBB-FREE
PBDE flame retardants-FREE
RoHSCompliant - made with hazardous-free components
