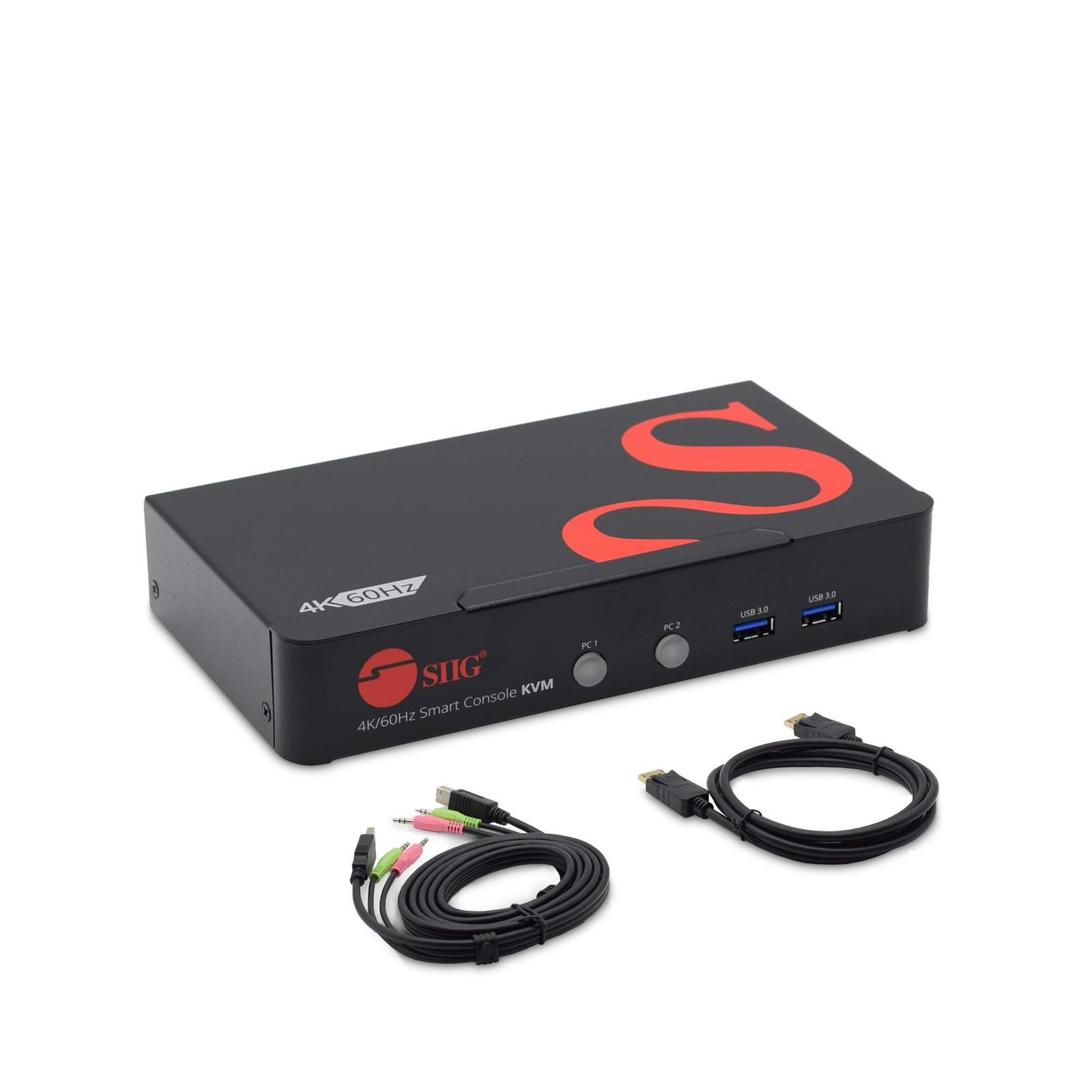

SIIG 2-Port 4K60 DisplayPort KVM, USB 3.0, TAA, CE-DP0F11-S1 - Create a high-performance workstation via one set of keyboard and mouse to control 2 DisplayPort 1.2 computers with USB 3.0 and audio devices
- Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate
- Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, 3D, Deep color. Supports MST Passthrough for multiple displays
- Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported
- 2x DisplayPort ports, 4x USB 3.0 Type-A ports for USB peripherals such as flash drives, printers…, 2x USB 1.1 ports for keyboard and mouse, 6x 3.5mm audio jack ports for stereo speakers / earphone or microphone, 1x Micro USB port for Firmware update, 1x DIP Switch, and 1x Slide Switch (signal level)
Specifications:
Hardware
Chipset TI SN75DP130
Software
OS Compatibility Windows® 10, Mac OS ® 10.10 or new
Video
DisplayPort 1.2 3840x2160@60Hz YUV 4:4:4 8-bit
Bandwidth DisplayPort: Up to 21.6Gbps
Video cable length DisplayPort: Up to 3M (max)
USB 3.0 4x Type-A, Gen 1 up to 5Gbps
USB 1.1 2x Type-A, up to 12Mbps
Power Adapter
Input AC 100-240V/50-60Hz
Output DC 12V/2A
UL Listed E163743 /Level: VI
Audio: 7.1 channel surround sound
PCM 2.0 channel stereo digital audio
Environmental conditions
Operating temperature 32 to 104 degrees F
Storage temperature -4 to 140 degrees F
Relative humidity:
|
|
