2 Port 4K 60HZ DisplayPort 1.2 KVM Switch with USB 3.0 and Multi-Media ports (245480) 2 Port 4K 60HZ DisplayPort 1.2 KVM Switch with USB 3.0 and Multi-Media ports (245480)
International Customers: All electronic products are packaged for sale in the US with US voltage.

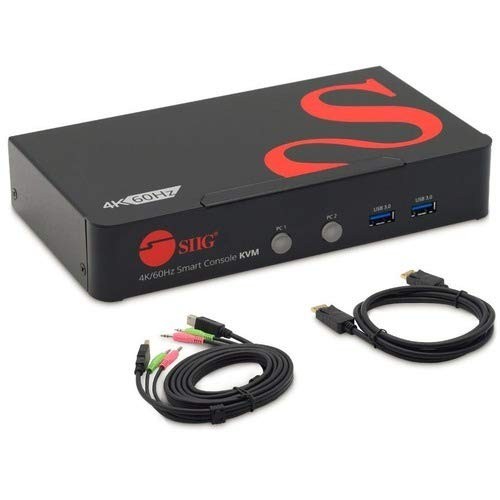

Package Contents: 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media Power Adapter + Power cord DisplayPort 1.2 cable, 1.8 meters (2pcs) 2 x USB 3.0 + MIC + Stereo 3-in-1 cable, 1.8 meters User Manual
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Control two computers with 4K@60Hz DisplayPort 1.2 video system via one keyboard, mouse, and display
Offers true 21.6Gbps Ultra-HD 4K@60Hz
Features Auto-EDID detection which ensures easy display detection
Easy system selection via front panel selection buttons or keyboard hot-key commands
Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports for connecting multiple USB peripherals such as flash drives, printers, and more simultaneously
Includes 3.5mm jack for microphone input and stereo speakers/headphones
Auto-scan feature for quick browsing and system monitoring
Firmware upgrade feature via Micro USB port for future compatibility
Plug-n-play, no driver installation
Compatibilty:
- not DDM fast switching compliant
- 4K@60Hz HDR is not supported Version:
DisplayPort 1.2 specification Video bandwidth:
Up to 21.6Gbps Video resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
DisplayPort: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
3.5mm: PCM 2-ch stereo Audio USB data transfer rate:
USB 1.1: up to 12Mbps
USB 3.0: up to 5Gbps Color:
Black Housing material:
Metal Connector:
Source:
2x 20-pin DisplayPort, Female
2x 9-pin USB 3.0 Type-B, Female
4x 3.5mm phone jack for Microphone and Stereo audio, Female
1x 5-pin Micro USB, FW update, Female
2x 2-pin DIP Switch Device:
1x 20-pin, DisplayPort, Female, Output
1x 3.5mm jack, Microphone, Female, Input
1x 3.5mm jack, Stereo audio, Female, Output
4x 9-pin USB 3.0 Type-A, Female
2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse) Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
UL Listed: E163743 8F35/Level:VI Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity:
