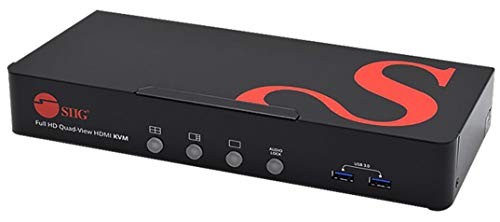

SIIG Full HD Quad-View 1080p HDMI KVM Switch MultiView Processor SIIG Full HD Quad-View 1080p HDMI KVM Switch MultiView Processor
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Full HD Quad-View HDMI KVM MultiView Processor Power Adapter, DC 12V/2A 4 x USB 3.0 + MIC + Stereo 3-in-1 Cable 4 x HDMI 2.0 Cable User Manual
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
SIIG 1080p Quad View HDMI KVM Switch, Mouse Roaming & Seamless Switch to Control Four PCs in Quad View Mode, 4xUSB3.0 ports, Hotkey Control, Metal Housing, ESD protection, TAA compliant (CE-KV0A11-S1)
- Allows you to control four Full HD HDMI computers via one set of keyboard, mouse, and display
- Advanced single-head HDMI KVM switch to offer Full HD 1080p at 60Hz and also support mouse roaming between four Windows PC, Mac, or laptop
- Supports 3 display modes: Single View Mode, Quad View Mode, Quad View Cycled Mode
- Supports seamless switching in Single View Mode
- Built-in USB 3.1 Gen 1 4-port hub shares up to 4 USB devices among the computers
- Supports independent HID keyboard and mouse ports
- Firmware upgradeable for support of new features and technology enhancements
- Keyboard hot-keys and front push button for convenient computer switching
- Plug and Play installation, no driver installation needed
- Brand Name: SIIG
- Ean: 0662774044552
- Housing Height: 1.7 inches
- Input Power: 24.00 watts
- Item Weight: 2.23 pounds
- Manufacturer Series Number: CE-KV0A11-S1
- Material: Metal
- Model Number: CE-KV0A11-S1
- Mounting Type: Rack Mount
- Operating Voltage: 12.0 volts
- Part Number: CE-KV0A11-S1
- Specification Met: Ul , Rohs , Ce , Fcc
- UNSPSC Code: 43211800
- UPC: 662774044552
- Warranty Description: 3 years limited Warranty
Specifications:
Compatible with HDMI 1.4, HDCP 1.4
Video resolution: bandwidth: Up to 6.75Gbps
USB 3.1 data transfer rate:
USB 2.0: Up to 480Mbps
USB 3.1: Up to 5Gbps
Audio support: Bypass
Display Modes: Single View Mode, Quad View Mode, Quad View Cycled Mode
Mounting: 1RU rack-mount with ears and Wall hanging holes
ESD protection:
Human body model 15kV [air-gap discharge]
Human body model 8kV [contact discharge]
Product:
Dimensions: 11.10" (L) x 1.70" (H) x 4.39" (W)
Weight: 2.23lbs
Housing Color: Black
Housing material: Metal
Unit Package:
Dimensions: 13.03" (W) x 6.38" (H) x 8.03" (D)
Weight: 5.70 lbs
Power Adapter:
Input: 100-240V AC / 50-60Hz
Output: DC 12V/2A
UL listed: E263376 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: <85% RH FCC, CE, RoHS
TAA compliant
Warranty: 3 years limited
Country of origin: Taiwan
Package contents
Full HD Quad-View HDMI KVM MultiView Processor
Power adapter, DC 12V/2A
USB 3.0 + MIC + Stereo 3-in-1 cable (4pcs)
HDMI 2.0 cable (4pcs)
User Manual
Package Contents:
- Full HD Quad-View HDMI KVM MultiView Processor
- Power Adapter, DC 12V/2A
- 4 x USB 3.0 + MIC + Stereo 3-in-1 Cable
- 4 x HDMI 2.0 Cable
- User Manual
SpecificationPower DescriptionInput Voltage Range100V AC to 240V ACInput Voltage
Physical CharacteristicsForm Factor
Weight (Approximate)2.23 lbHeight1.7"Width4.4"Rack Height1UDepth11.1"WarrantyLimited Warranty3 YearInterfaces/PortsNumber of USB Ports10Number of HDMI Ports5USBYesHDMIYesVideoMaximum Video Resolution1920 x 1080General InformationBrand NameSIIGMarketing Information Control up to four computers using one keyboard, mouse, and 1080p display, with quad viewing, mouse roaming, 4-port USB 3.1 hub Features Allows you to control four Full HD HDMI computers via one set of keyboard, mouse, and display Advanced single-head HDMI KVM switch to offer Full HD 1080p at 60Hz and also support mouse roaming between four Windows PC, Mac, or laptop Supports 3 display modes: Single View Mode, Quad View Mode, Quad View Cycled Mode Supports seamless switching in Single View Mode Built-in USB 3.1 Gen 1 4-port hub shares up to 4 USB devices among the computers Supports independent HID keyboard and mouse ports Firmware upgradeable for support of new features and technology enhancements Keyboard hot-keys and front push button for convenient computer switching Plug and Play installation, no driver installation needed Product TypeKVM SwitchboxProduct NameFull HD Quad-View HDMI KVM MultiView ProcessorManufacturerSIIG, IncManufacturer Part NumberCE-KV0A11-S1TitleProduct TitleSIIG Full HD Quad-View 1080p HDMI KVM Switch MultiView Processor (CEKV0A11S1)Technical InformationNumber of Computers Supported4Number of Local Users Supported1 Shipping
