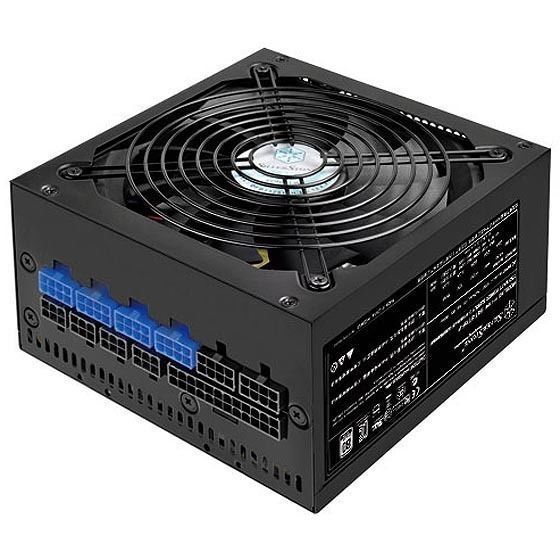

? 750W 24hour continuous power output with 40?operating temperature
? 800W peak power
? 100% modular cables
? Efficiency 85%~88% at 20%~100% loading
? Class-leading single +12V rail with 60A (peak 66A)
? Strict ±3% voltage regulation and low ripple & noise
? Japanese main capacitors
? Silent running 135mm fan with 19dBA minimum
? Dual EPS 8pin connectors support
? Dual PCI-E 8pin and four PCI-E 6pin connectors support
? Supports ATX 12V 2.3 & EPS 12V
? Active PFC
Model No.SST-ST75F-PMax. DC Output750W(Peak 800W)Power density363W per literLoad (%)±3%±3%±3%±5%±10%Line Paint)combined +3.3, +5V150Wcombined +12V720W/60A(Peak 66A)Input Voltage90V~264VInput Frequency Range47Hz~63HzPFCActive PFC(PF>0.95 at full load)Efficiency85%~88%(20% to 100% loading)MTBF100,000 hours at 25°C, full loadOperating temperature0°C ~ 40°CProtectionOver current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
No load protectionConnectors1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
2 x 8/6-Pin PCIE connector(550mm)
2 x 6-Pin PCIE connector(550mm)
6 x SATA connector(500mm / 250mm / 250mm)
6 x 4-Pin Peripheral connector (500mm / 250mm / 250mm)
2 x 4-Pin Floppy connector(500mm / 250mm / 250mm / 150mm)Cooling SystemSilent 135mm fanNoise Level19dBA-36dBADimension150 mm (W) x 86 mm (H) x 160 mm (D)Weight2.8 kgForm factorATX PS/2Certification80 PLUS SilverOtherCompatible with ATX12V v2.4
