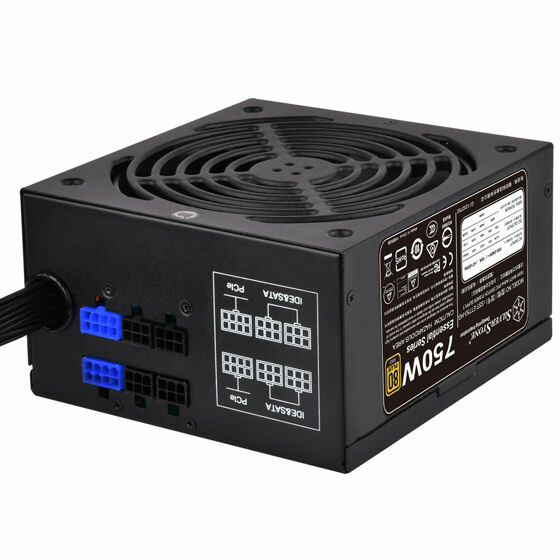

￭ High efficiency with 80 PLUS Gold certification
￭ Semi-modular cables facilitate cable management
￭ 24/7 continuous power output with 40°C operating temperature
￭ Class-leading single +12V rail
￭ Silent running 140mm fan with 18 dBA
￭ PCIe 8pin and PCIe 6pin connectors support
￭ All-black flat cables design
￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)Model No. SST-ET750-HGMax. DC Output 750WPower density 363W per literLoad Range+3.3V +5V +12V +5VSB -12VMax.(Amps)22A 22A 62A 2.5A 0.3APeak (Amps)/ / / 3.0A /Min.(Amps)0A 0A 0A 0A 0ARange (%)±5% ±5% ±5% ±5% ±10%Line Reg.(%)±1% ±1% ±1% ±1% ±1%Ripple(mVp-p)50mV 50mV 120mV 50mV 120mVColor Black（Lead-Free Paint）Combined +3.3V & +5V 120WCombined +12V 744WInput Voltage 90 ~ 264 VrmsInput Frequency Range 47Hz ~ 63HzPFC Active PFC（PF>0.9 at full load）Efficiency 87% ~ 90% at 20% ~ 100% loadingMTBF 100,000 hoursOperating temperature 0°C ~ 40°CProtection Over current protectionOver power protectionOver voltage protectionShort circuit protectionConnectors V1.11 x 24 / 20-Pin motherboard connector (500mm)1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)9 x SATA connector ("500mm / 150mm / 150mm" x 3)3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
V1.21 x 24 / 20-Pin motherboard connector (500mm)*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)9 x SATA connector ("500mm / 150mm / 150mm" x 3)3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)Cooling System Single 140mm silent fanForm factor ATXNoise Level 18dBA minimumDimension 150 mm (W) x 86 mm (H) x 160 mm (D)5.91" (W) x 3.39" (H) x 6.3" (D)Weight 2 KgCertification 80 PLUS Gold
