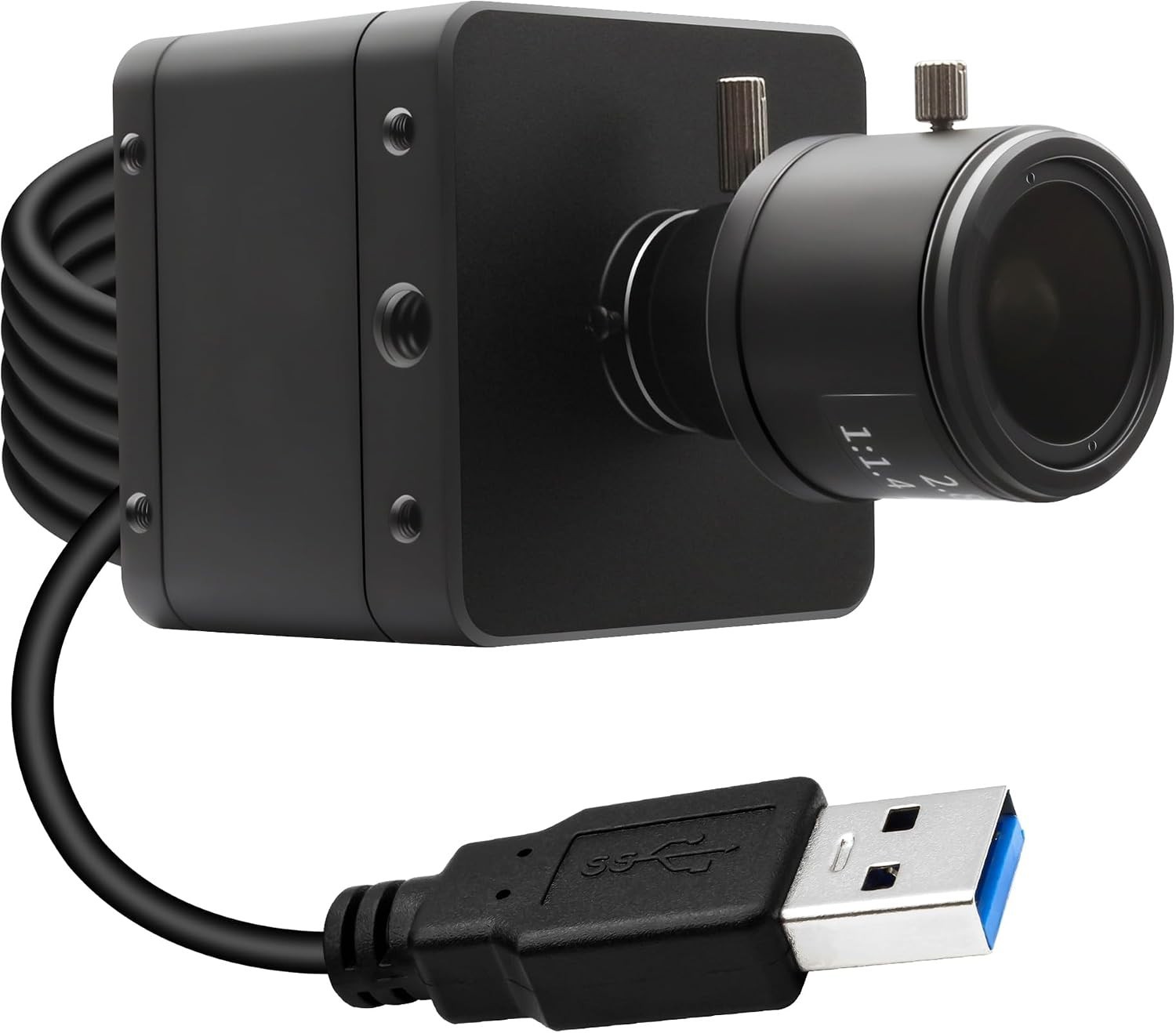

SVPRO 5MP 60FPS Global Shutter USB 3.0 Machine Vision Camera

Capture fast-moving subjects with greater clarity using the SVPRO 5MP Global Shutter USB 3.0 Camera. Built around the 1/2.5" OG05B10 sensor, this high-speed industrial camera combines global shutter technology, up to 2592 × 1944 resolution, high frame rates, and a versatile 2.8–12mm manual M12 zoom lens.

With UVC plug-and-play compatibility across Windows, Linux, Android, and macOS, it's well suited for machine vision, motion analysis, laboratory equipment, robotics, Raspberry Pi and Jetson Nano projects, industrial inspection, and other high-speed imaging applications.

HIGH-SPEED GLOBAL SHUTTER

Unlike conventional rolling-shutter cameras, the global shutter captures the entire frame simultaneously, helping minimize motion blur and rolling-shutter distortion when imaging fast-moving objects.

The 1/2.5-inch OG05B10 sensor is designed for applications requiring high resolution, fast capture, and low-latency imaging.

Ideal for:

• Machine Vision

• Industrial Inspection

• Motion Imaging

• High-Speed Object Tracking

• DIY Vision Systems

• Slow-Motion Applications

5MP HIGH-RESOLUTION IMAGING

Capture detailed images at resolutions up to 2592 × 1944.

The combination of 5MP resolution and global shutter technology makes the camera particularly useful when both fine detail and accurate motion capture are important.

HIGH-SPEED USB 3.0 PERFORMANCE

The USB 3.0 interface provides the bandwidth needed for high-resolution, low-latency image transmission.

In YUY2 format, supported performance includes:

• 2592 × 1944 – Up to 35 FPS

• 1920 × 1080 – Up to 60 FPS

The camera supports a maximum frame rate of up to 60 FPS, making it suitable for capturing and analyzing moving subjects.

2.8–12MM MANUAL M12 ZOOM LENS

The included 2.8–12mm manual lens provides flexibility for different working distances and fields of view.

Manually adjust the lens according to your application rather than being restricted to a single fixed focal length.

APPROX. 60°–115° FIELD OF VIEW

The adjustable lens provides an approximate 60° to 115° field-of-view range, allowing you to tailor the image coverage to your setup.

Use a wider view when you need to capture more of the surrounding area or narrow the field for more focused imaging.

UVC PLUG-AND-PLAY COMPATIBILITY

The camera supports the UVC (USB Video Class) standard, allowing operation on compatible systems without requiring a proprietary camera driver.

Compatible platforms Pi

Jetson Nano

This broad compatibility makes the camera useful for developers, engineers, researchers, integrators, and DIY projects.

USB 3.0 WITH USB 2.0 BACKWARD COMPATIBILITY

For maximum high-resolution and high-frame-rate performance, connect the camera through USB 3.0.

The camera also maintains backward compatibility with compatible USB 2.0 hosts, although available resolution/frame-rate performance may be limited by USB 2.0 bandwidth.

DURABLE ALL-METAL HOUSING

The camera is enclosed in a compact all-metal housing designed for demanding machine-vision and industrial environments.

The metal enclosure provides:

• Mechanical Protection

• Improved Durability

• Efficient Heat Dissipation

• Compact Integration

THREE 1/4" MOUNTING POINTS

Standard 1/4-inch threaded mounting holes on three sides of the housing provide greater installation flexibility.

Mount the camera according to the requirements of your machine, laboratory equipment, tripod, test fixture, robotic system, or custom vision setup.

2-METER USB CABLE

A 2-meter USB cable provides useful reach when integrating the camera into industrial equipment, workstations, laboratory setups, or development projects.

PRODUCT SPECIFICATIONS

• Brand: SVPRO

• Product Type: Industrial / Machine Vision USB Camera

• Sensor: OG05B10

• Sensor Size: 1/2.5"

• Resolution: Up to 2592 × 1944

• Maximum Frame Rate: Up to 60 FPS

• 2592 × 1944 YUY2: Up to 35 FPS

• 1920 × 1080 YUY2: Up to 60 FPS

• Shutter Type: Global Shutter

• Interface: USB 3.0

• USB 2.0 Backward Compatible: Yes

• UVC Compatible: Yes

• Lens Mount: M12

• Included Lens: 2.8–12mm Manual Lens

• Field of View: Approx. 60°–115°

• Housing: All Metal

• Cable Length: 2 Meters

• Mounting Threads: 1/4" Threads on 3 Sides

• Windows Compatible: Yes

• Linux Compatible: Yes

• macOS Compatible: Yes

• Android Compatible: Yes

• Raspberry Pi Applications: Yes

• Jetson Nano Applications: Yes

BUILT FOR HIGH-SPEED MACHINE VISION

The SVPRO 5MP Global Shutter Camera provides the combination of speed, resolution, lens flexibility, and cross-platform compatibility needed for demanding imaging projects. Its OG05B10 global shutter sensor, USB 3.0 interface, up to 60 FPS capture, adjustable 2.8–12mm M12 lens, all-metal housing, and three-sided mounting system make it a versatile solution for industrial, laboratory, development, and machine-vision applications.

5MP • OG05B10 Global Shutter • USB 3.0 • Up to 60 FPS • 2592×1944 • 2.8–12mm M12 Manual Lens • 60°–115° FOV • UVC • Windows/Linux/macOS/Android • Raspberry Pi/Jetson Nano • All-Metal Housing • 2m USB Cable
