Overview

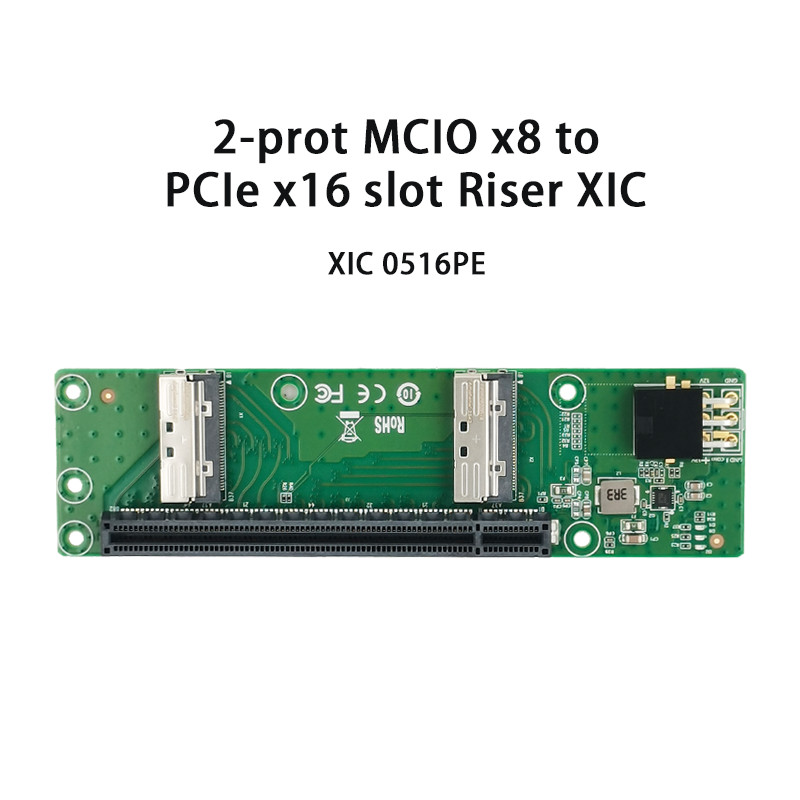

XIC 0516PE is a Mini Cooledge IO(MCIO8I) to PCIex16 slot risercard, It can be extended to a PCIe x16 slot by plugging into a PCIe AIC card (e.g., Switch, Retimer, etc.) with 2 MCIO connectors, providing greater bandwidth and faster transfer speeds. Itcan also connect only the first MCIO connector to realize the use of PCIe x8 devices to achieve the purpose of connecting more PCIe devices.

It can easily connect graphics cards, accelerator cards, and other Add-in-Card devices to improve efficiency.

Key Features

■ two 56G PCIe5.0 MCIO 8i input

■one PCIe x16 electrical/mechanical output

■PCIe gen5 - high quality Amphenol SMT slot,

■ 85OhmUltra Low Loss PCB

■ can work in x8 mode with one cable (input near the power plug)

■ can work in x16 mode with both inputs connected (must be the same CPU host port and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help!)

■GPU Power connector to supply 12V. DO NOT connect the wrong power connector, it will destroy the Adapter and your GPU!!!

■6A 12V->3.3V buck voltage regulator

Product Type

XIC 0516PE

Power Connector

ATX 2*3 GPU Mini fit 5569

DeviceCount

1 PCIe AIC

Host Connectors

2 MCIO 74Pin

Physical Dimensions

138.5mm*38mm

weight

250g

Operating Voltage

+12V +/-8%;

Environmental

Operating: 0°C to 70°C

Storage: -40°C to 70°C

5 to 90% non-condensing

Option

MCIO 8i to MCIO 8i Cable L=800mm

MCIO 8i to SFF-8654 8i Cable L=1000mm
