Overview

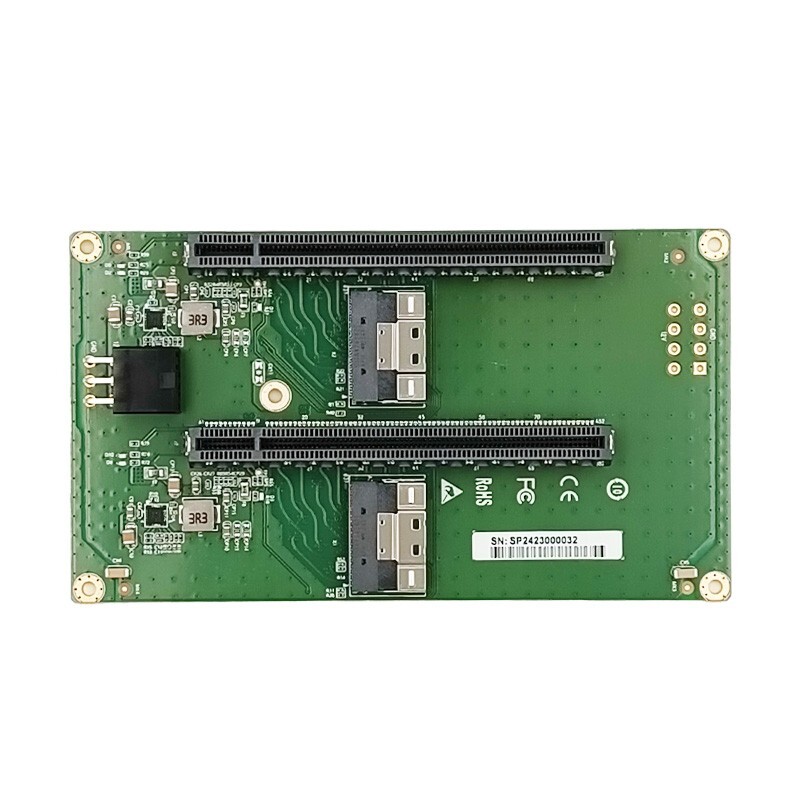

XIC 548PE2is twoSlimSAS(SFF-8654) 8ItotwoPCIex16 slot risercard, It can be extended to twoPCIe x16 slot by plugging into a PCIe AIC card (e.g., Switch, Retimer, etc.) with 2 SFF-8654connectors, enabling the use of PCIe x8 devices to connect more PCIe devices.

Key Features

■ two 24G PCIe4.0 SFF-86548i input

■one PCIe x8electrical, PCIe x16 mechanical output

■PCIe gen4- high quality SMT slot,

■ 85OhmUltra Low Loss PCB

■ can work in x8 mode with percable

■GPU Power connector to supply 12V. DO NOT connect the wrong power connector, it will destroy the Adapter and your GPU!!!

■6A 12V->3.3V buck voltage regulator

Parameters

Product Type

XIC 548PE2

Power Connector

ATX 2*3 GPU Mini fit 5569

DeviceCount

2 PCIe AIC

Host Connectors

2 SFF-8654 74Pin

Physical Dimensions

142mm*80mm

weight

250g

Operating Voltage

+12V +/-8%;

Environmental

Operating: 0°C to 70°C

Storage: -40°C to 70°C

5 to 90% non-condensing

Option

SFF-8654 8i to SFF-8654 8i Cable L=700mm

MCIO 8i to SFF-8654 8i Cable L=1000mm
