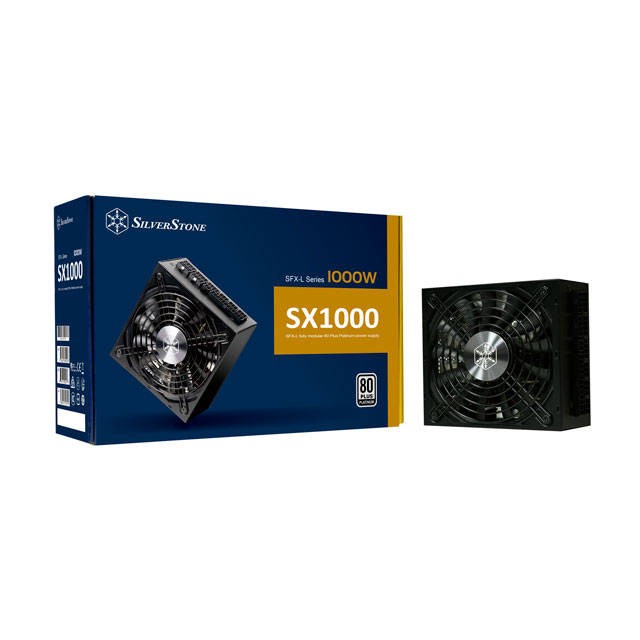

SilverStone SSTSX1000LPT 1000W Fully Modular SFX-L Power Supply Platinum SilverStone SSTSX1000LPT 1000W Fully Modular SFX-L Power Supply Platinum
International Customers: All electronic products are packaged for sale in the US with US voltage.
Energy Efficiency Certification: 80 Plus Platinum
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
SilverStone Technology SX1000 Platinum, 80 Plus Platinum 1000W Fully Modular SFX-L Power Supply, SX1000-LPT-X V1.1
- SFX-L form factor for use in small form factor computers
- 1000W continuous power output rated for 24/7 operation at 50? operating temperature
- Class-leading single +12V rail with 83.3A
- Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
- High quality construction with all Japanese capacitors
- Brand: ?SilverStone Technology
- Series: ?SST-SX1000-LPT-X
- Item Weight: ?3.06 pounds
- Product Dimensions: ?5.12 x 4.92 x 2.5 inches
- Item Dimensions LxWxH: ?5.12 x 4.92 x 2.5 inches
- Manufacturer: ?SilverStone
Since its launch in 2015, the SFX-L form factor has garnered popular recognition and support among enthusiasts with its larger 120mm fan able to achieve better balance of power and quietness in small form factor PCs than what was possible with standard SFX. And as a leader in power supply miniaturization, SilverStone has continued its efforts in advancing the SFX-L forward to reach ever higher limit. The SX1000-LPT not only has unprecedented 1000 watts of power output but also has the second highest level of 80 PLUS efficiency with a Platinum rating. It includes all features available from top of the line SilverStone PSUs such as flexible flat cables, all Japanese capacitors and advanced semi-fanless capability. For those looking to build the most efficient small form factor systems possible with great quality and power, the SX1000-LPT is definitely the top choice.
SpecificationPower DescriptionInput Frequency63HzNumber of +12V Rails1Output Power1000 WInput Voltage
Output Voltage Detail
- 3.3 V DC @ 25 A
- 5 V DC @ 25 A
- 12 V DC @ 83.3 A
- 5 V SB @ 3 A
- -12 V DC @ 0.3 A
Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- 5 V SB
- -12 V DC
Physical CharacteristicsForm FactorSFX-LWeight (Approximate)3.06 lbProduct ColorBlackHeight2.5"Color of (6+2 pin) PCI Express Power Connectors6Number of (4+4 pin) CPU Power Connectors1Number of SATA Power Connectors8PCI Express ConnectorYesGeneral InformationBrand NameSilverStoneMarketing Information Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity. 100% modular cable design Flat cables have much greater flexibility to allow for tighter folding and management of cables. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking. ±3% regulation and low ripple & noise performance for high stability. High quality construction with all Japanese capacitors. Ultra-quiet 120mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU's loading reaches 20%. Advanced protections for safety and security Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection Product TypePower SupplyProduct NameSX1000 Platinum 80 PLUS Platinum 1000W fully modular SFX-L power supplyManufacturerSilverStone Technology, IncManufacturer Part NumberSST-SX1000-LPTProduct ModelSST-SX1000-LPTProduct SeriesPlatinumTitleProduct TitleSilverStone SX1000 Platinum 80 PLUS Platinum 1000W fully modular SFX-L power supply (SSTSX1000LPT)Technical InformationFan Diameter120 mmEfficiency92%Number of Fans1Fan Bearing TypeDual Ball Fan BearingProtection Type
- Over Current
- Over Power
- Over Voltage
- Short Circuit
- Over Temperature
ModularYesPower Factor Correction (PFC)ActiveReliabilityMTBF100000 HourEnvironmental ConditionsMaximum Operating Temperature122°F (50°C)Minimum Operating Temperature32°F (0°C) Shipping
