Silverstone SST-SX500-LG SFX-L Form Factor 500W Modular Power Suppl For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

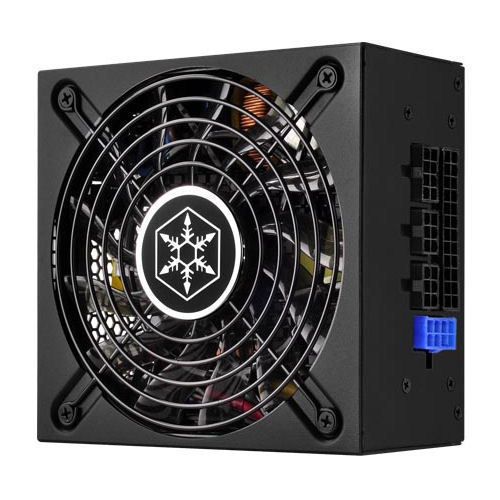

Silverstone SST-SX500-LG SFX-L Form Factor 500W Modular Power Suppl

Price: US $127.00

•Silent running 120mm fan with intelligent semi-fanless operation
•Support SFX-L form factor and ATX via included bracket
•High efficiency with 80 PLUS Gold certification
•100% modular cables
•All cables made with flexible flat arrays
•500W continuous power output at 40℃ operating temperature rated for 24/7 operation
•Class-leading single +12V rail with 40A
•Strict ±3% voltage regulation and low ripple & noise
•Support dual PCI-E 8/6pin connectors
•Active PFC

Model No.

SST-SX500-LG

Max. DC Output

500W

Load Range

+3.3V +5V +12V +5VSB -12V

Max.(Amps)
20A 20A 40A 3.0A 0.3A

Peak (Amps)
/ / / / /

Min.(Amps)
0A 0A 0A 0A 0A

Range (%)
±3% ±3% ±3% ±5% ±10%

Line Reg.(%)
±1% ±1% ±1% ±1% ±2%

Ripple(mVp-p)
50mA 50mA 120mV 50mV 120mV

combined +3.3, +5V

105W

combined +12V

480W

Input Voltage

90V ~ 264V

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.95 at full load）

Efficiency

87%~90%（20% to 100% loading）

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over voltage protection
Under voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector（300mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
2 x 8 / 6-Pin PCIE connector（400mm / 150mm）
3 x SATA connector（300mm / 200mm / 100mm）
2 x 4-Pin Peripheral connector （300mm / 200mm）
1 x 4-Pin Floppy connector（300mm / 200mm / 200mm）

Color

Black（Lead-Free Paint）

Cooling System

Single 120mm silent fan

Noise Level

0 ~ 36 dBA

Dimension

125 mm (W) × 63.5 mm (H) × 130 mm (D)

Weight

1.4 Kg

Form factor

SFX-L
