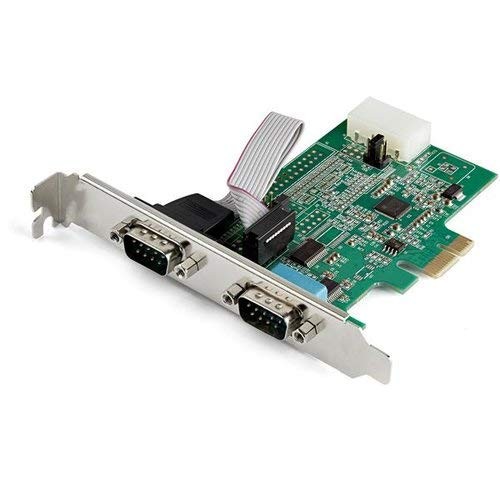

StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux (241493) StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux (241493)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Contents: 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART 1 x Low Profile Bracket 1 x Quick Start Guide
Environmental Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Industry standard 16950 UART compatible
Supports max baud rate of up-to 921.6Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO cache per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits (one per port)
Asix AX99100 chipset
Base PCI Express 1.1 compliant
Low and full-profile brackets included
The Choice of IT Pros Since 1985
conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local Technical Advisors have broad product expertise and work directly with our Engineers to provide support for our customers both pre and post-sales.
Applications
Connect to automated self-service kiosks or ATM machines
Connect in retail POS applications
Install in home or office workstations
HARDWARE
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
Asix AX99100
Interface
Serial
Port Style
Integrated on Card
Ports
2
PERFORMANCE
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Max Baud Rate
921.6 Kbps
MTBF
222,366 hours
Parity
None, Odd, Even, Space, Mark
Serial Protocol
RS-232
Stop Bits
1, 1.5, 2
CONNECTOR(S)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
2 - DB-9 (9 pin, D-Sub) Male
Internal Ports
1 - LP4 (4 pin Large Drive Power) Male Input
SOFTWARE
Microsoft WHQL Certified
Yes
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
Note
Selectable power output on pin 9 of the serial port
ENVIRONMENTAL
Humidity
5-85% RH
Operating Temperature
-10oC to 80oC (14oF to 176oF)
Storage Temperature
-20oC to 100oC (-4oF to 212oF)
WHATS IN THE BOX
Included in Package
1 - Two Port Serial Card
2 - Low Profile Bracket
1 - Quick Start Guide
Item Dimension (L"x W"x H")
6 x 7 x 2
Weight
1.00 LB
Warranty Information
Lifetime Warranty
Package Contents:
- 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
- 1 x Low Profile Bracket
- 1 x Quick Start Guide
SpecificationPhysical CharacteristicsForm FactorPlug-in CardCard WarrantyLifetimeInterfaces/PortsNumber of Serial Ports (External)2General InformationBrand Name
