Supermicro Chassis P/N:CSE-819U

Supermicro Motherboard P/N:X10DRU-i+

Supermicro Backplane P/N: SAS815TQ

In Good Condition, Full Working Order

Tested

1 Year Warranty

Disk caddies not included - if required we can supply for £7 each

CTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required

Included

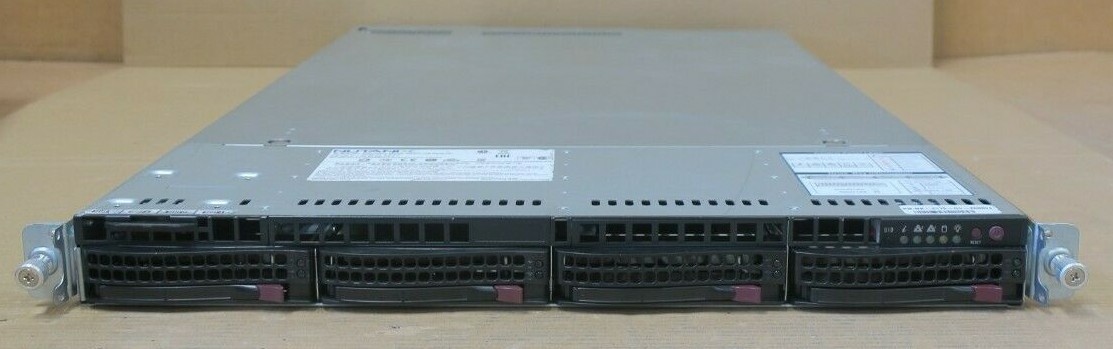

• 1 x Supermicro SuperServer CSE-819U With:
• 4 x 3.5" SAS Bay Backplane - Super SAS815TQ rev 1.00 with 4 x 3.5" disk caddies and screws
• Motherboard - X10DRU-I+ rev 1.02B
• 1 xSupermicro AOC‑2UR6‑i4XT2U Ultra Riser with 4x 10Gbase-T Ethernet RJ45 Ports,1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (internal)
• 1 x Supermicro 1U Right PCI-E x8 Riser CardRSC-R1UW-E8R rev 1.10
• 1 x Supermicro 1U Left PCI-E x16 Riser CardRSC-R1UW-2E16 rev 2.00
• 2 x 1000W Power Supplies Specification:
  Motherboard

  Super X10DRU-i+Processor/CacheCPU
  • Intel® Xeon® processor E5-2600v4†/ v3 family (up to 160W TDP)*


  • Dual Socket R3 (LGA 2011)
  Cores / Cache
  • Up to22 Cores†/ Up to55MB†Cache
  System Bus
  • QPI up to 9.6 GT/s
  Note†BIOS version 2.0 or above is required
  System MemoryMemory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB†ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • 2666/2400 ECC DDR4 NVDIMM
  DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  • NVDIMM: 16GB
  Memory Voltage
  • 1.2 V
  Error Detection
  • Corrects single-bit errors
  On-Board DevicesChipset
  • Intel® C612 chipset
  SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Connectivity
  • 4x 10GBase-T ports viaAOC-UR-i4XT
  • Intel® X540 10GBase-T
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
  Graphics
  • ASPEED AST2400 BMC
  Input / OutputSATA
  • 4x SATA3 (6Gbps) ports
  LAN
  • 4x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
  USB
  • 5x USB 3.0 ports

    (2 rear, 2 onboard header, 1 Type A)
  Video
  • 1x VGA Connector
  Serial Port
  • 1x Serial header
  DOM
  • 2x SATADOM(Disk on Module) support with embedded power
  System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  ManagementSoftware
  • SuperDoctor® 5
  • Intel® Node Manager 3.0
  • Watch Dog
  • NMI
  • SUMandSSM
  • Optional IPMI 1.5 / 2.0
  Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
  ChassisForm Factor
  • 1U Rackmount
  Model
  • 1.7" (43mm)
  Width
  • 17.2" (437mm)
  Depth
  • 29.7" (754mm)
  Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
  Available Color
  • Black
  Front PanelButtons
  • Power On/Off button
  • System Reset button
  LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /

    UID LED
  Expansion SlotsPCI-Express
  • 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
  • 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)





  Drive BaysHot-swap
  • 4x 3.5" Hot-swap drive bays
  System CoolingFans
  • 4x heavy duty fans with optimal fan speed control
  • 4x additional fans optional
  Air Shroud
  • 1x Air Shroud
  Power Supply750W Redundant AC-DC Power Supplies, +12V/+12Vsb outputAC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
  +12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
  12V SB
  • Max: 2.1A
  • Min: 0A
  We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
  VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£300 excluding VAT

  VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
