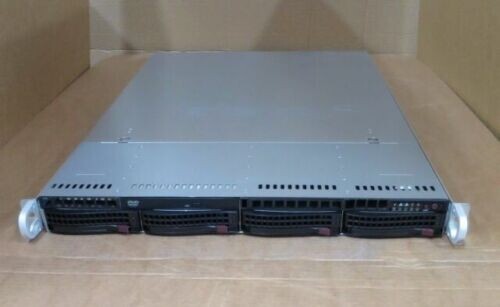

Supermicro CSE-819U X10DRU-i+ CTO 2x E5-2600v3/v4 CPU 24-DIMM 4x 3.5" HDD Bay

Chassis Part number:CSE-819U
Motherboard Part Number:X10DRU-i+ rev 1.01
Backplane Part Number:SAS815TQ

In Good Condition, Full Working Order
Tested
2 Year WarrantyCTO CONFIGURE-TO-ORDER, NO PROCESSOR, NO MEMORY, NO HARD DRIVES INCLUDED - THESE ARE REQUIRED IN ORDER TO OPERATE - WE CAN QUOTE TO SUPPLY IF REQUIRED
Includes:

• 1 xSupermicro CSE-819U 4x 3.5" Bay 1U Server with:
• 2 x E5-2600v3/v4 Processor HeatsinksSNK-P0047PS
• 24 x DDR4 Memory Slots
• 4 x 3.5" SAS/SATA Hot-Swap Hard Drive Bays With 4 x Empty Caddies (Backplane -SAS815TQ)
• Onboard SATA 2.0 & 3.0 RAID (RAID 0, 1, 5, 10)
• 1 x Riser RSC-R1UW-E8R
• 1 x Riser RSC-R1UW-2E16
• 1 x Supermicro AOC-URN2-i2XS 1U Ultra Riser 2-Port PCI-E x8 10Gb SFP+ + 2x NVMe Port
• Motherboard -X10DRU-I+ rev 1.01
• 8 x Fan ModulesFAN-010L4
• 2 x 1000W Power Specification:
  Product SKUsMBD-X10DRU-i+
  • 17" x 16.8" (43.18cm x 42.67cm)
  Processor/CacheCPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s
  Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
  Note
  • † BIOS version 2.0 or above is required
  Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
  System MemoryMemory Capacity
  • 1.5TB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2V
  Error Detection
  • Corrects single-bit errors
  On-Board DevicesChipset
  • Intel® C612
  SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Networking options provided via Ultra Riser
  Graphics
  • Aspeed AST2400 BMC
  Input / OutputSATA
  • 10 SATA3 (6Gbps) port
  LAN
  • 1
  USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
  Video Output
  • 1 VGA port
  Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
  TPM
  • 1 TPM Header & Chip both
  Expansion SlotsPCI-E
  • 1 PCI-E 3.0 x32 Left Riser Slot,
  • 1 PCI-E 3.0 x8 Right Riser Slot,
  • 1 PCI-E 3.0 x40 Ultra Riser Slot
  • See Ultra Riser Compatibility Matrix.
  System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  ManagementSoftware
  • Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog
  Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
  PC Health MonitoringVoltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5+1 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT
  FAN
  • 8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
  Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  LED
  • CPU / System Overheat LED, UID/Remote UID, Memory DIMM ECC error LEDs
  Other Features
  • 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
  Operating EnvironmentOperating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
  Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
  Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
  Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
