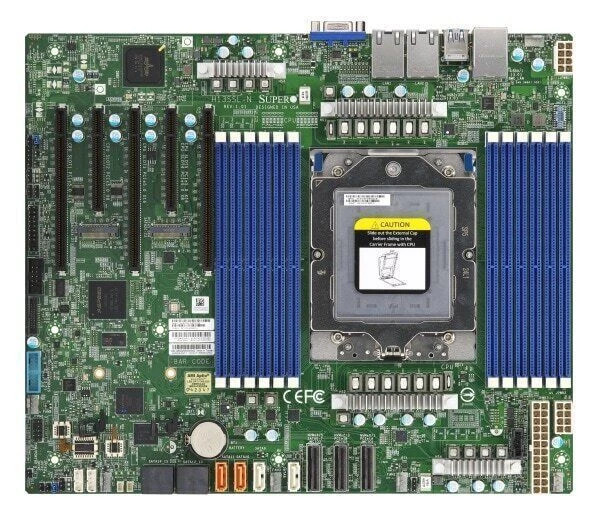

ProcessorCPU- Single Socket SP5
- AMD EPYC™ 9004/9005 系列处理器（AMD AMD EPYC™ 9005 系列插件支持要求板卡版本 2.x）
Core CountNote- Supports up to 400W TDP CPUs
System MemoryMemory- Slot Count: 12 DIMM Slots
- Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
DIMM Sizes- RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory VoltageError Detection- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipsetIPMINetwork Controller- Dual LAN with Broadcom BCM5720 1GBase-T
Input / OutputLAN- 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s) (Realtek RTL8211F PHY (Dedicated for IPMI))
USB- 2 USB 3.0 port(s) (Header)
- 4 USB 3.0 port(s)
VideoSerialDOM- 2 SuperDOM(Disk on Module) port(s) with power connector support
TPMOthers- 2 MCIO (PCIe 5.0 x8) port(s)
- 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
Expansion SlotsPCI-Express (PCIe) Configuration- 3 PCIe 5.0 x16 slots
- 2 PCIe 5.0 x8 slots
M2- 2 M.2 PCIe 5.0 x4 SATA/NVMe slots (M-key 2280/22110)
System BIOSBIOS Type- AMI 32MB SPI Flash EEPROM
BIOS Features- ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
ManagementSoftware- Supermicro Server Manager (SSM)
- Supermicro Power Manager (SPM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- 超级诊断脱机 (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer 自动化助理 (SAA) 新功能！
- IPMI class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Trusted Platform Module (TPM) 2.0
PC Health MonitoringVoltage- +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
LED- BMC/IPMI Heartbeat LED
- UID/remote UID LED
FAN- 6x 4-pin fan headers (up to 6 fans)
