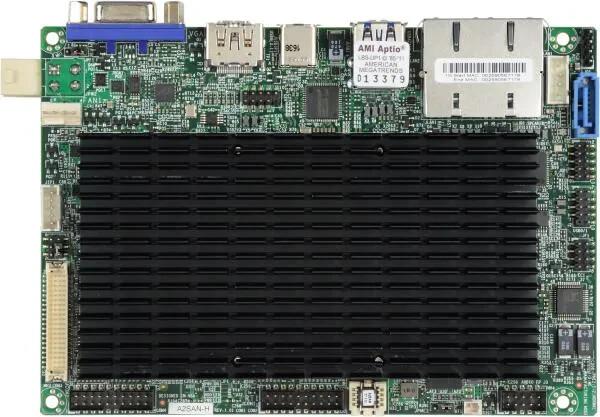

Supermicro MBD-A2SAN-H-B Motherboard & CPU NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-A2SAN-H-BPhysical StatsForm Factor

• 3.5" SBC

Dimension

• 5.7" x 4" (14.6cm x 10.16cm)

ProcessorCPU

• Intel® Atom® Processor E3940
• Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP

Core

• Up to 4 cores, 4 threads / 2MB Cache

Note

System MemoryMemory Capacity

• 1 DIMM slots
• Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MHz

Memory Type

• 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB

DIMM Sizes

• 2GB, 4GB, 8GB

Memory Voltage

• 1.35V

On-Board DevicesChipset

• System on Chip

SATA

• SoC controller for 1 SATA3 (6 Gbps) ports

Audio

• ALC 888S HD Audio

Graphics

• 1 Intel® HD Graphics port(s)

Network Controllers

• Dual LAN with Intel® Ethernet Controller I210IT

Input / OutputSATA

• 1 SATA3 (6Gbps) port(s)

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 4 USB 2.0 port(s) (4 via header)
• 2 USB 3.0 port(s) (2 rear)

Video Output

• 1 VGA port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)

Serial Port

• 6 COM Port(s) (6 header)

TPM

• 1 TPM Chip

Others

• 1 8-bit GPIO header
• 1 SMBus header
• 1 System Fan
• 1 Panel backlight power header
• 1 Speaker
• 1 HD Audio header SlotsPCIe
  • 1 x Full size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
  • 1 x M.2 2280 B-Key for SATA or PCIe SSD (2242/3042 B-key M.2 module is supported by extender bracket)
  M.2
  • M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0
  • Form Factor: 2280
  • Key: B-Key
  System BIOSBIOS Type
  • AMI UEFI
  BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0
  • UEFI 2.5
  • PCI FW 3.0
  ManagementSoftware
  • SuperDoctor® 5, Watchdog
  System Management Software
  • SuperDoctor 5
  Power Configurations
  • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
  PC Health MonitoringVoltage
  • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
  LED
  • Standby alert LED
  Temperature
  • CPU thermal trip support
  FAN
  • 1x 4-pin fan header (up to 1 fan)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
  Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector
  Operating EnvironmentOperating Temperature Range
  • -30°C - 75°C (-22°F - 167°F)
  Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
  Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
  Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
