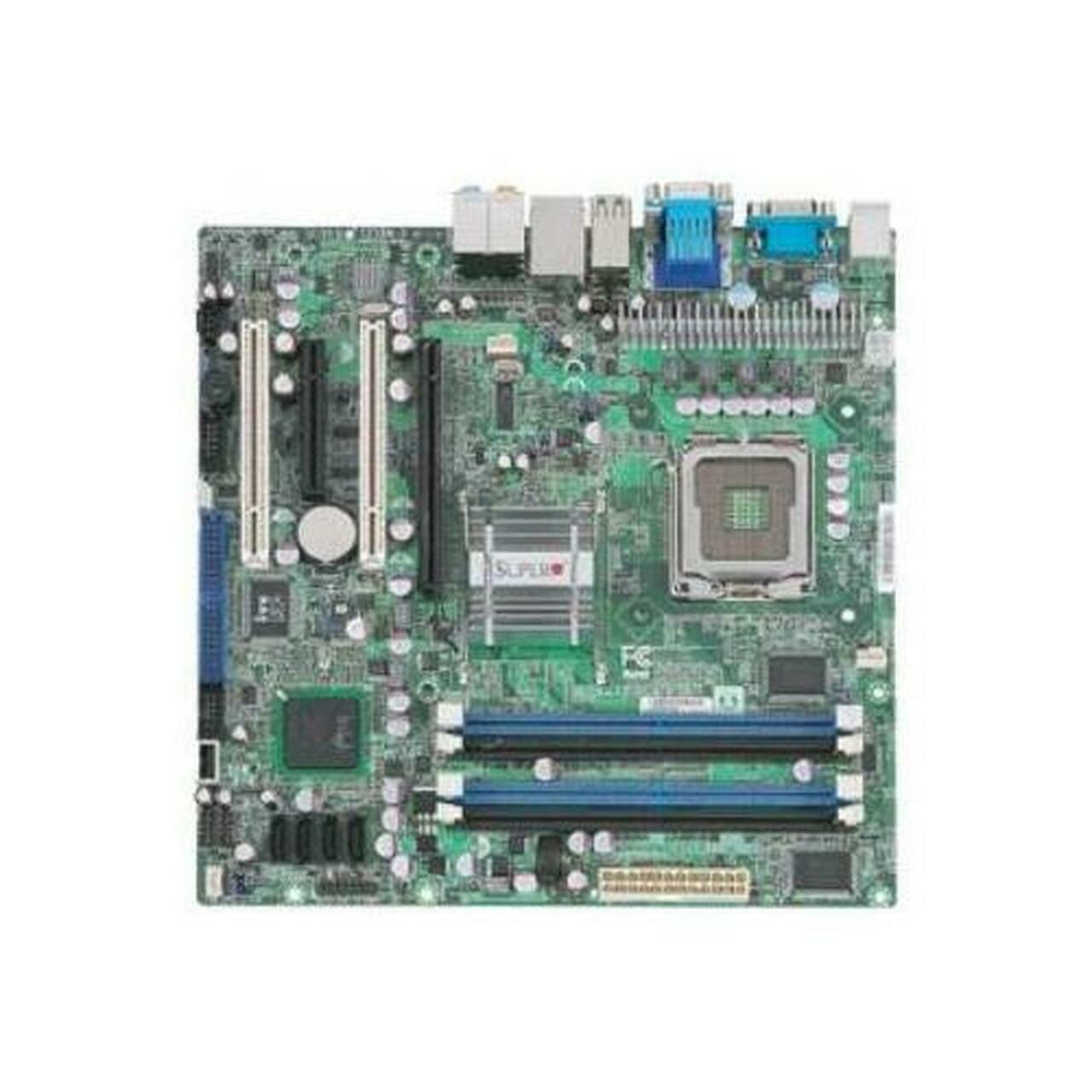

Supermicro MBD-C2SBM-Q-B Motherboard NEW, IN STOCK, 5 Year Warranty
Product SKUs
MBD-C2SBM-Q-B

• C2SBM-Q (Bulk Pack)

Physical StatsForm Factor

• Micro ATX

Dimensions

• 9.6" x 9.6 ", (24.4cm x 24.4cm)

Processor/CacheCPU

• Single LGA775 Socket
• SupportsIntel® Core™2 Extreme QX9000/QX6000series
• SupportsIntel® Core™2 Quad Q9000/Q8000/Q6000series
• SupportsIntel® Core™2 Duo E8000/E7000/E6000/E4000series
• SupportsIntel® Pentium® E5000/E2000series
• SupportsIntel® Celeron® E1000 and 400series

System Bus

• 1333 / 1066 / 800 MHz system bus

System MemoryMemory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered, non-ECC DDR2 800/667MHz memory (Dual Channel)

Memory Type

• DDR2 800/667MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2 GB

Memory Voltage

• 1.8V only

On-Board DevicesChipset

• Intel® Q35
• ICH9DO

Serial ATA

• Intel® ICH9DO SATA2 (3 Gbps) controller built-in
• RAID 0, 1, 5, 10 support (Windows Only)
• RAID 0, 1, 10 support (Linux)

Network Controllers

• 1 x Intel® 82566DM Single Port Gigabit PCI-Express Ethernet
• Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output

Audio

• RealTek ALC883 High Definition 7.1 Channel Audio

Video

• On board graphics

Super I/O

• Winbond 83627DHG chip

Clock Generator

• CK505

Input / OutputSerial ATA

• Four Serial ATA ports ( 3Gbps performance)

IDE

• One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

LAN

• 1x RJ45 LAN port

USB

• 11x USB 2.0/1.1 compliant (6x ports + 2x headers + 1 on-board connectors)
• 6 rear ports, 5 on-board

Audio

• Line-in / Line-out / Microphone Ports

VGA

• On board VGA port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 2x Fast UART 16550 serial port
• 2x Serial Header

OS Compatibility
• Please see ourOS Compatibility ChartChassis ( Optimized for C2SBM-Q )Mid-Tower

• CSE-733E-465B
• CSE-733i-465B
• CSE-733i-645
• CSE-733T-465B
• CSE-733T-645
• To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.

Expansion SlotsPCI-Express

• 1 (x16) PCI-e slot
• 1 (x4) (using x8) PCI-e slot

PCI

• 2x 32-bit 33MHz PCI (5V) slots

System BIOSBIOS Type

• 16Mb SPI Flash EEPROM with Phoenix BIOS®

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

ManagementSoftware

• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode control for AC power recovery
• Internal / External modem remote ring-on
• Suspend to RAM (STR)

PC Health MonitoringVoltage

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
• Adjustable CPU clock frequency ratio (Only available if CPU is supported)

FAN

• Total of three 4-pin fan headers
• 3 x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on / off control
• Support 3-pin PWM fans (without speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan conn.

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) Support
• PECI

LED

• CPU / System Overheat LED
• Standby alert LED

Other Features

• Chassis intrusion Detection
• Chassis intrusion Header
• TPM 1.2

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 0° to 55°C
• Non-operating Temperature: -40° to 85°C
• Operating Relative Humidity: 15% to 95% (non-condensing)
• Non-operating Relative Humidity: 15 to 90% (non-condensing)
