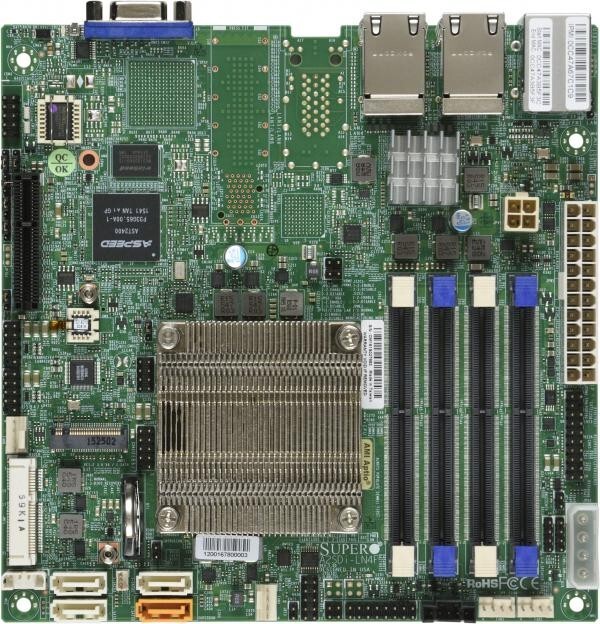

Supermicro MBD-A2SDI-LN4F-B Motherboard NEW, IN STOCK, 5 Year WarrantyBoard only. No other accessories included. Product SKUsMBD-A2SDi-LN4FPhysical StatsForm Factor - 6.7" x 6.7" (17.02cm x 17.02cm)
ProcessorCPU - Intel® Atom® Processor C3850
- Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core - Up to 12 cores, 12 threads / 12MB Cache
System MemoryMemory Capacity - 4 DIMM slots
- Up to 64GB Unbuffered ECC/non-ECC SODIMM, DDR4-2400MT/s
Memory Type - 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 SODIMM Unbuffered
DIMM Sizes Memory Voltage Error Detection - Corrects single-bit errors
On-Board DevicesChipset SATA - SoC controller for 4 SATA3 (6 Gbps) ports
IPMI Graphics - 1 ASPEED AST2400 BMC port(s)
Network Controllers - Quad LAN with Intel® Ethernet Controller I350-AM4, 1GbE
Input / OutputSATA LAN - 4 RJ45 Gigabit Ethernet LAN ports
USB - 4 USB 2.0 port(s) (4 via header)
- 2 USB 3.0 port(s) (2 rear)
Video Output Serial Port DOM - 1 SuperDOM(Disk on Module) ports
TPM Expansion SlotsPCIe - 1 PCIe 3.0 x4
- 1 miniPCIe with mSATA supports (half card only)
M.2 - M.2 Interface: PCIe 3.0 x4; SATA
- Form Factor: 2242, 2280
- Key: M-Key
System BIOSBIOS Type BIOS Features ManagementSoftware - SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,IPMI2.0, Watchdog
System Management Software - SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations - Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health MonitoringVoltage - VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI
LED Temperature FAN - 4x 4-pin fan headers (up to 4 fans)
- Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control)
Other Features - WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
Operating EnvironmentOperating Temperature Range - 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range - -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range - 10% - 85% (non-condensing)
Non Operating Relative Humidity Range - 10% - 95% (non-condensing)
