Key Features (per node) Cloud Computing
Web Cache
Web Hosting, VM
Social Networking 1. Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen. Core™ i3 series,

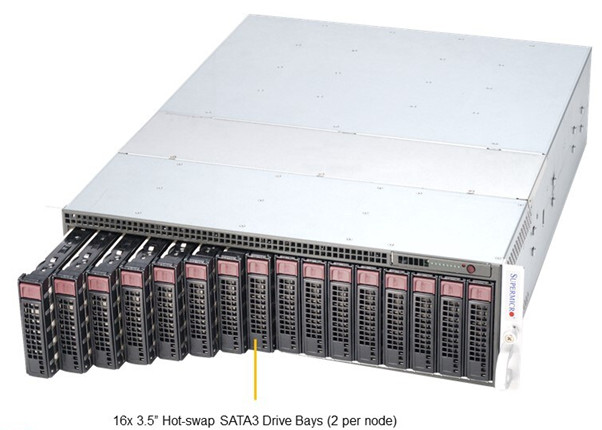

Intel® Celeron® and Intel® Pentium® 2. 2x 3.5" SATA3 by default; 2x 2.5"
SATA3 HDDs w/ Optional kits 3. Up to 64GB ECC UDIMM
DDR4-2400MHz in 4 sockets 4. 2 GbE LAN ports via Intel i350,
1 dedicated IPMI LAN port 5. 1 PCI-E 3.0 x8 and 1 Micro-LP 6. 2 USB 2.0, 1 VGA, 1 COM port,
(with KVM dongle) 7. 1 USB 3.0 (Type A), 1 SATA DOM 8. 4 heavy duty hot-swap 8cm fans with
optimal cooling zone (per system) 9. 1600W Redundant power supplies
Titanium Level Certified (per system)Dimensions and Weight
Height
Width
Depth
Package
- 11.65" (H) x 26.26" (W) x 34" (D)
Weight
- Net Weight: 62.2 lbs (28.21 kg)
- Gross Weight: 88 lbs (39.92 kg)
Parts List - (Items Included) Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSD-F
CSE-938BH-R1K68B 8
1 Super X11SSD-F Motherboard
3U Chassis Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P Air Shroud MCP-310-93804-0B 8 938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF Backplane BPN-SAS-938H 1 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS Riser Card RSC-RR1U-E8 8 RSC-RR1U-E8 Rail set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W Heatsink / Retention SNK-P0047PS+ 8 Customized Passive CPU Heat Sink for Micro Cloud Series Servers Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
