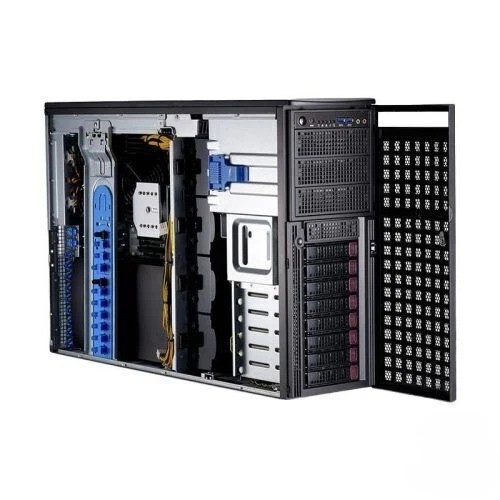

Supermicro SYS-7049GP-TRT 8x3.5”2x1980W 4U Support 4xGPU or LGA3647 CPU

Product Details

Brand:

supermicro

Structure

Tower

model:

SYS-7049GP-TRT

Product situation:

Used

Hard disk backplane:

8*3.5”

HDD:

None

Hard drive bays:

8

Radiator:

YES

Cooling fan:

YES

Processor:

None

Memory

None

RAID Controller:

9361-8I

Network card:

Motherboard comes with its own network card

Rack rails

None

PSU:

1980W X1

Note: The appearance of the chassis may have wear and scratches. The photos on the link are inventory photos, not actual photos. Please carefully browse the details for the actual configuration

Product SKUsSYS-7049GP-TRT

• SuperServer 7049GP-TRT (Black)

Motherboard
Super X11DPG-QTProcessor/CacheCPU

• Dual Socket P (LGA 3647)
• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
  3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W

Cores

• Up to 28 Cores

Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)GPU Support

• Please refer to:Compatible GPU list

System MemoryMemory Capacity

• 16 DIMM slots
• Up to 4TB 3DS ECC class="desc" style="box-sizing: border-box; list-style: none; font-weight: normal; padding-left: 0px; padding-right: 10px; word-break: break-word; color: #222222 !important;">Supports Intel® Optane™ DCPMM††

Memory Type

• ††Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board DevicesChipset
  • Intel® C621 chipset
  SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  Network Controllers
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  Graphics
  • ASPEED AST2500 BMC
  Input / OutputSATA
  • 10 SATA3 (6Gbps) ports
  LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
  USB
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via headers)
  Video
  • 1 VGA port
  Audio
  • 7.1 HD Jacks
  Serial Port/Header
  • 2 COM ports (1 rear, 1 Header)
  System BIOSBIOS Type
  • AMI 32Mb SPI Flash ROM
  ManagementSoftware
  • Intel® Node Manager
  • IPMI 2.0
  • SSM,SPM,SUM
  • SuperDoctor® 5
  PC Health MonitoringCPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
  FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  ChassisForm Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
  Model
  • 18.2" (462mm)
  Width
  • 7.0" (178mm)
  Depth
  • 26.5" (673mm)
  Package
  • 27" (H) x 13" (W) x 38" (D)
  Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
  Available Colors
  • Dark Gray
  Front PanelButtons
  • Power On/Off button
  • System Reset button
  LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat & Power Fail LED
  Ports
  • 2 Front USB 3.0 Ports
  Expansion SlotsPCI-Express
  • 4 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x16 (single-width) slots
  • 1 PCI-E 3.0 x4 (in x8 slot)
  Drive Bays / StorageHot-swap
  • 8 Hot-swap 3.5" drive bays
  • Optional 4x 2.5" NVMe supported
  M.2
  • 1 NVMe based M.2 SSD
  • Form Factors: 2280, 22110
  System CoolingFans
  • 4 Heavy duty fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)
  Heatsink
  • 2 Active heatsink with optimal fan speed control
  Power Supply2200W Redundant Power Supplies with PMBusTotal Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
  AC Input Frequency
  • (W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level
    [Test Report]Operating EnvironmentRoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
