Supermicro X13DEI Dual LGA4677 DDR5 ECC Registered DIMM VGA BMC IPMI M.2 Dual LAN MotherboardServer Motherboard

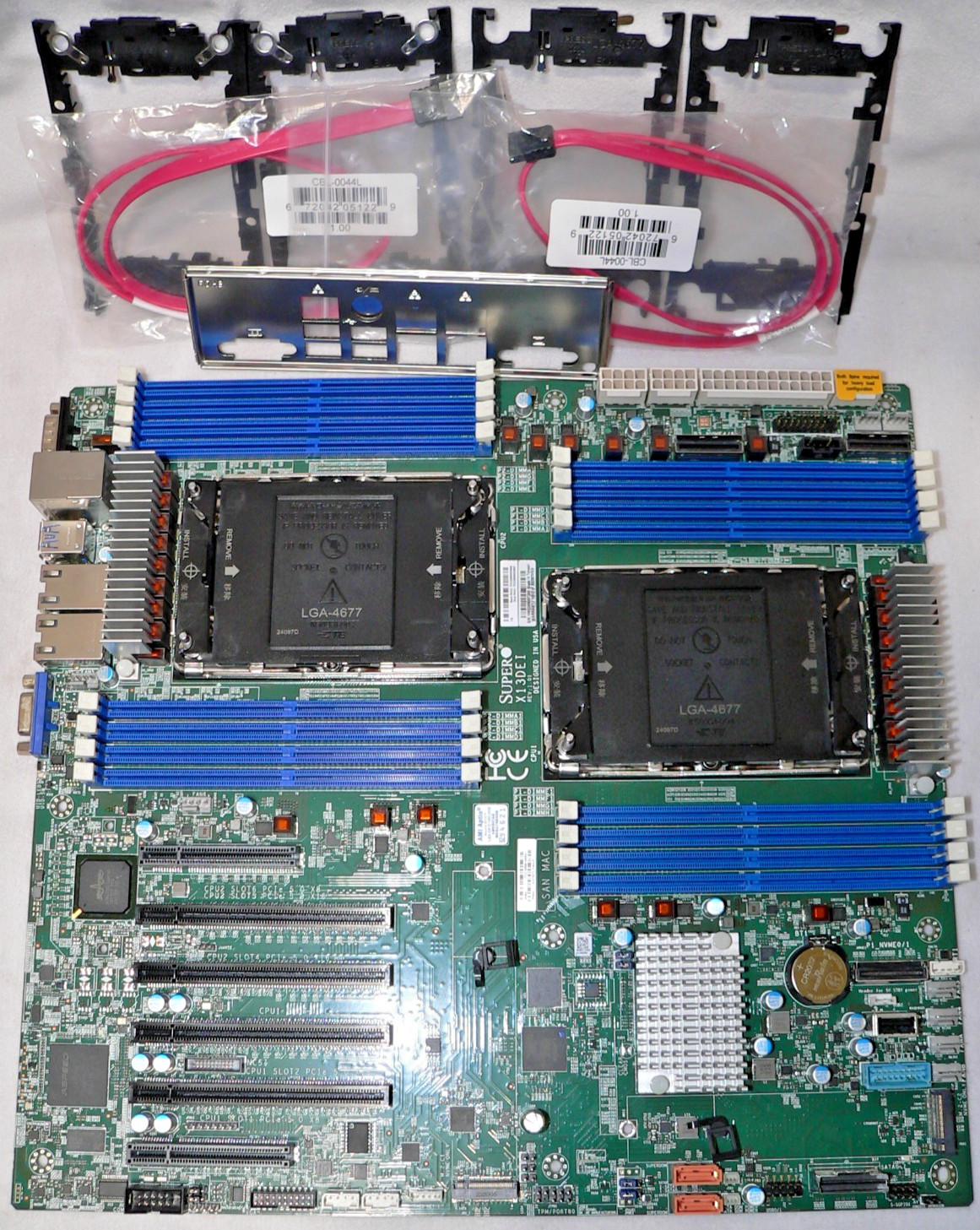

Note:Motherboard updated to latest Bios version 2.8 and latest BMC version 01.05.21 (see pictures). Includes I/O shield, 2 x SATA cables, 4 x CPU Carriers. Ship Fast.
Note: Motherboard supports 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors, please go to Supermicro website for CPU support list.
SPECIFICATIONS:
Product SKUsMBD-X13DEIPhysical StatsForm Factor

• 12.1" x 13.05" (30.74cm x 33.15cm)

ProcessorCPU

• Dual Socket E (LGA-4677)
• 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count

• Up to 64C

Note

• Supports up to 350W TDP CPUs

System MemoryMemory

• Slot Count: 16 DIMM Slots
• Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage

• 1.1V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesSATA

• 8 SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support ; via SlimSAS
• 2 SATA (6Gbps) via Intel® C741; RAID 0/1 support ; Internal Port(s)

IPMI

• ASPEED AST2600 BMC

Network Controller

• Dual LAN with Broadcom BCM5720 1GBase-T

Input / OutputLAN

• 1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

• 2 USB 2 port(s) (Header)
• 2 USB 3 port(s) (Header)
• 4 USB 3 port(s) (Rear)
• 1 USB 2 Type-A port(s)

Video

• 1 VGA D-Sub Connector port(s)

Serial

• 1 COM port(s) (header)
• 1 COM port(s) (rear)

DOM

• 2 SATA DOM (Disk on Module) port(s) with power connector support

TPM

• 1 TPM header

Others

• 3 MCIO port(s)

Expansion SlotsPCI-Express (PCIe) Configuration

• 2 PCIe 5.0 x8 slots
• 4 PCIe 5.0 x16 slots

M2

• 2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110)

System BIOSBIOS Type

• AMI 32MB UEFI

BIOS Features

• Plug and Play (PnP)
• PCI FW 3.2
• ACPI 6.4
• UEFI 2.8A
• SMBIOS 2.8/3.5

ManagementSoftware

• SuperCloud Composer® (SCC)
• Supermicro Server Manager (SSM)
• Supermicro Power Manager (SPM)
• Supermicro Update Manager (SUM)
• Supermicro SuperDoctor® 5 (SD5)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA) New!
• Plug-ins for 3rd Party Software
• IPMI Utilities

SecurityHardware

• Trusted Platform Module (TPM) 2.0

PC Health MonitoringVoltage

• +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,Veore,Vmem

LED

• CPU/system overheat LED
• UID/remote UID LED

Temperature

• CPU thermal trip support
• Monitoring for CPU and chassis environment
• PECI
• Thermal monitor 2 (TM2) support

Fan

• 8x 4-pin fan headers (up to 8 fans)
• 8 fans with tachometer monitoring
• Fan speed control
• Overheat LED indication

Other Features

• ACPI power management
• Chassis intrusion detection
• Control of power-on for recovery from AC power loss
• M.2 NGFF connector
• Node manager support
• UID
