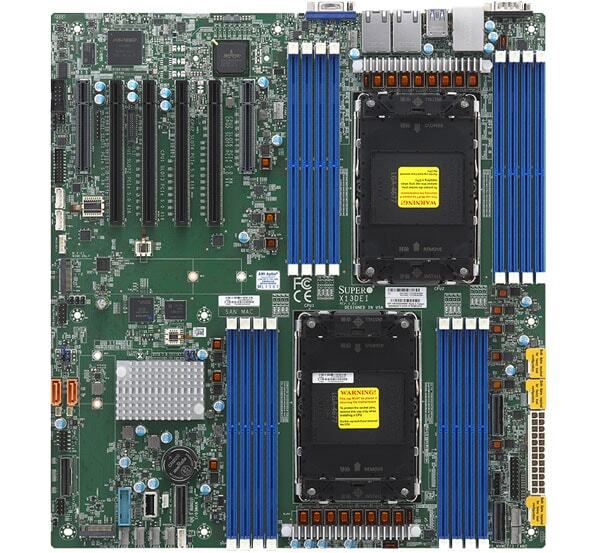

Product SKUsMBD-X13DEI Physical StatsForm Factor Dimension - 12.1" x 13.05" (30.74cm x 33.15cm)
ProcessorCPU - 4th Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core System MemoryMemory Capacity - 16 DIMM slots
- Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type - 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes - 16GB, 32GB, 64GB, 128GB, 256GB
- RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset SATA - Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
IPMI Network Controllers - Dual LAN with Broadcom BCM5720 1GBase-T
Input / OutputSATA - 8 SATA3 (6Gbps) port(s)
- 2 SATA3 (6Gbps) port(s)
LAN - 1 RJ45 Dedicated IPMI LAN port
- 2 RJ45 Gigabit Ethernet LAN ports
USB - 6 USB 3 port(s) (4 rear; 2 via header)
- 3 USB 2 port(s) (1 Type A; 2 via header)
Video Output - 1 VGA D-Sub Connector port(s)
Serial Port - 2 COM Port(s) (1 header; 1 rear)
TPM Others Expansion SlotsPCIe - 2 PCIe 5.0 x8,
- 4 PCIe 5.0 x16
M.2 - M.2 Interface: 2 PCIe 4.0 x2
- Form Factor: 2280/22110
- Key: M-Key
System BIOSBIOS Type BIOS Features - ACPI 6.4
- SMBIOS 2.8/3.5
- UEFI 2.8A
- Plug and Play (PnP)
- PCI FW 3.2
ManagementSoftware - Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),SuperDoctor® 5,Super Diagnostics Offline,KVM with dedicated LAN,IPMI 2.0
SecurityHardware - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
PC Health MonitoringVoltage - System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
LED - UID/Remote UID
- CPU / System Overheat LED
Temperature - Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- PECI
FAN - 8x 4-pin fan headers (up to 8 fans)
- Fan speed control
- Overheat LED indication
- 8x fans with tachometer monitoring
Other Features - UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
