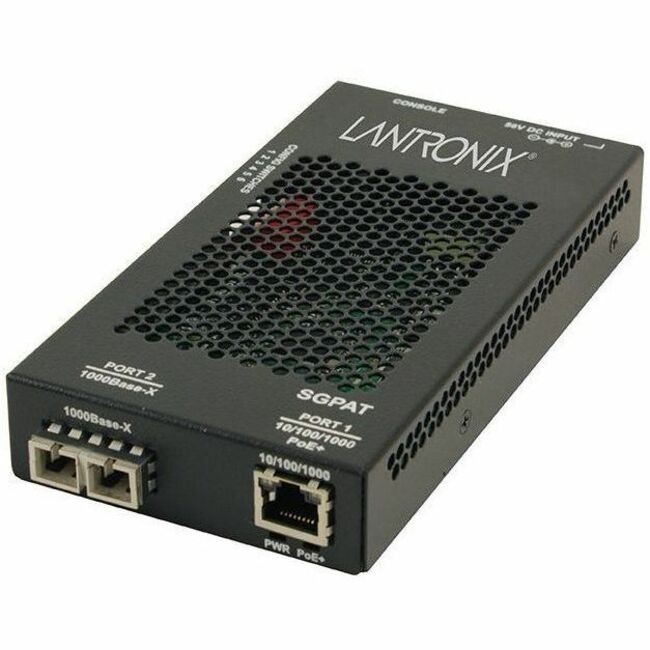

Transition Networks SGPAT1013-105 Transceiver/Media Converter Brand: Transition Networks UPC: 0648177041053 Mfr Part #: SGPAT1013105NA
General Information
Stand-alone Fast & Gigabit Ethernet PoE / PoE+ Media Converter
10/100/1000Base-T PoE+ PSE to 1000Base-X
The SGPAT Series is a 10/100/1000Base-T to 100/1000Base-SX/LX Gigabit Ethernet Media Converter, that easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE power through the copper RJ-45 port.
Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3af PoE and IEEE 802.3at PoE+ standard.
The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.
Media & PerformanceMedia Type Supported:Optical FiberMedia Type Supported:Twisted PairFiber Mode Supported:Multi-modeFiber Optic Cable Wavelength:850 nmMaximum Data Transfer Rate:1000 Mbit/sMaximum Distance Supported:0.55 kmFiber Optic Cable Core/Cladding Specification:62.5/125 µmFiber Optic Cable Core/Cladding Specification:50/125 µm
Network & CommunicationEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TNetwork Technology:1000Base-SX
Power DescriptionPower Source:AC/DCInput Voltage:56 V DCPower Consumption:65.50 W
Physical CharacteristicsForm Factor:Wall MountableForm Factor:DIN Rail MountableForm Factor:StandaloneForm Factor:TabletopForm Factor:Shelf (Approximate):2 lb
SGPAT1013-105 Transceiver/Media Converter
Power Supply - North Information:10/100/1000Base-T PoE+ (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (SC) [62.5/125um: 220m / 722 ft.] [50/125um:550m / 1804 ft.] Link Budget: 8.5dBCertifications & Standards:EN55022 Class A, EN55024, CE Mark, Power Supply is UL listedEnvironmentally Friendly:YesEnvironmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)TAA Compliant:YesNDAA Compliant:Yes Store Policies
