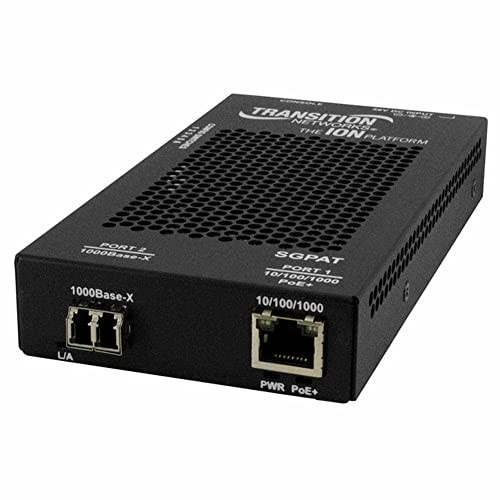

Transition Networks SGPAT1039-105 Transceiver/Media Converter (sgpat1039-105-fna) Transition Networks SGPAT1039-105 Transceiver/Media Converter (sgpat1039-105-fna)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: SGPAT1039-105 Transceiver/Media Converter Power Cord (North America)

Certifications & Standards: EN55022 Class A EN55024 CE

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Product Description

This item is brand-new, factory sealed.

The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.
Key Features and Benefits: Internal AC power supply Over-current protection Under-current detection Minimum load sensing Fault protection input Auto negotiation Auto cross Link pass through Remote fault detectPackage Contents:

• SGPAT1039-105 Transceiver/Media Converter
• Power Cord (North America)

SpecificationPower DescriptionPower SourceAC AdapterPower Consumption65.50 WPhysical CharacteristicsForm Factor

• Wall (Approximate)2 WarrantyLifetimeInterfaces/PortsNumber of LC Ports1Network (RJ-45)YesTotal Number of Ports2PoE Port TypePSENumber of PoE+ (RJ-45) Ports1Number of Network (RJ-45) Ports1General InformationBrand NameTransition NetworksMarketing Information The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected. Product TypeTransceiver/Media ConverterProduct NameSGPAT1039-105 Transceiver/Media ConverterManufacturerLantronix, IncManufacturer Part NumberSGPAT1039-105-FNAProduct ModelSGPAT1039-105Product SeriesSGPATMedia & PerformanceMedia Type Supported
  • Twisted Pair
  • Optical Fiber
  Fiber Mode SupportedMulti-modeFiber Optic Cable Wavelength850 nmFiber Optic Cable Core/Cladding Specification
  • 50/125 µm
  • 62.5/125 µm
  TitleProduct TitleTransition Networks SGPAT1039-105 Transceiver/Media Converter (SGPAT1039105FNA)Network & CommunicationEthernet TechnologyGigabit EthernetNetwork Technology
