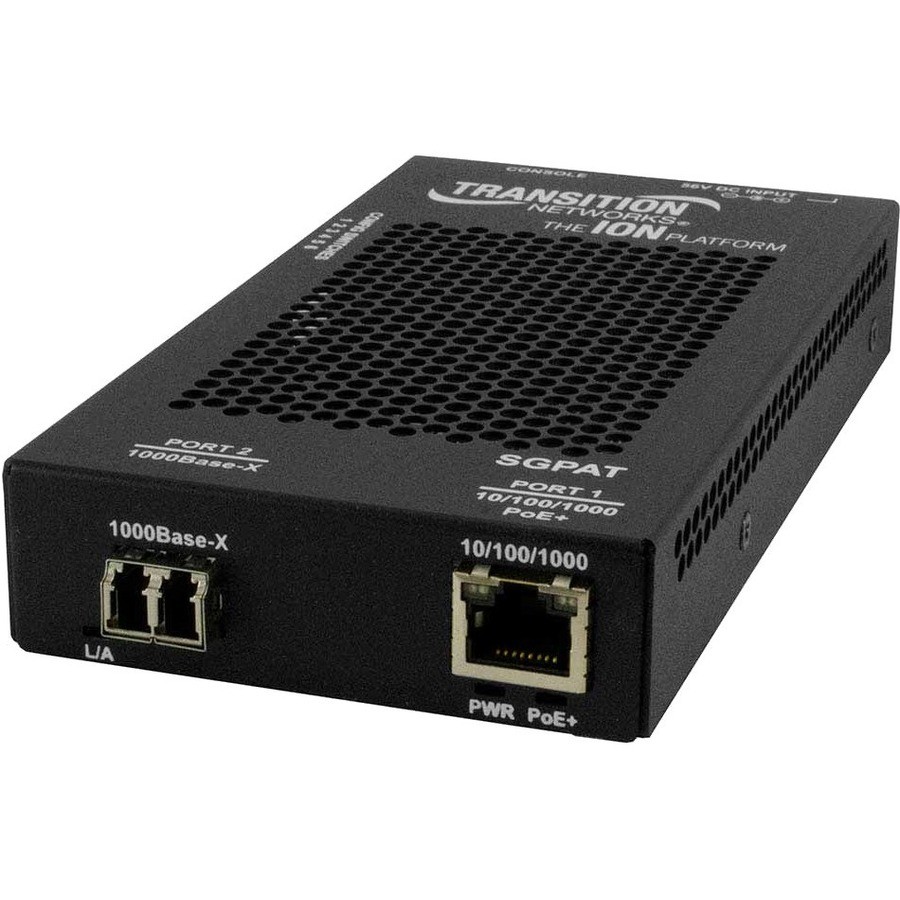

Transition Networks SGPAT1039-105 Transceiver/Media Converter SGPAT1039105FNA

Price: US $400.17

SGPAT1039-105 FED ONLY Transition Networks SGPAT1039-105 Transceiver/Media Converter SGPAT1039105FNA Brand: Transition Networks UPC: 0648177042920 Mfr Part #: SGPAT1039105FNA

General Information

The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port.

Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard.

The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberFiber Mode Supported:Multi-modeFiber Optic Cable Wavelength:850 nmFiber Optic Cable Core/Cladding Specification:50/125 µmFiber Optic Cable Core/Cladding Specification:62.5/125 µm

Network & CommunicationEthernet Technology:Gigabit EthernetNetwork Technology:1000Base-SXNetwork Technology:10/100/1000Base-T

Power DescriptionPower Source:AC AdapterPower Consumption:65.50 W

Physical CharacteristicsForm Factor:Wall MountableForm Factor:Rail-mountableForm Factor:StandaloneForm (Approximate):2 lb

SGPAT1039-105 Transceiver/Media Converter

Power Cord (North America)

Certifications & Standards:
