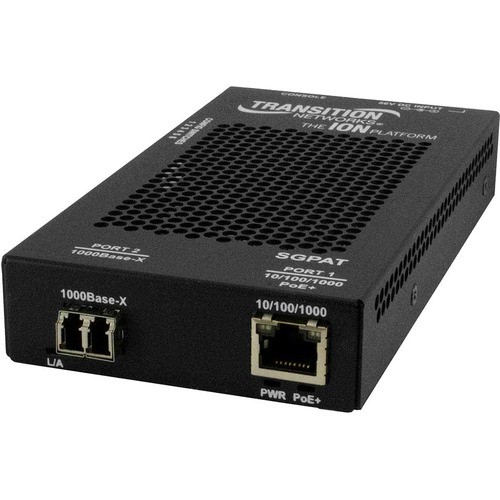

Transition Networks SGPAT1039-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - AC Adapter - Wall Mountable, Rail-mountable, Standalone, Desktop
The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.
ManufacturerLantronix, Inc Manufacturer Part NumberSGPAT1039-105-FNA Brand NameTransition Networks Product SeriesSGPAT Product ModelSGPAT1039-105 Product NameSGPAT1039-105 Transceiver/Media Converter Product TypeTransceiver/Media Converter Interfaces/Ports Total Number of Ports2 Network (RJ-45)Yes Number of PoE+ (RJ-45) Ports1 PoE Port TypePSE Number of LC Ports1 Number of Network (RJ-45) Ports1 Media & Performance Media Type SupportedTwisted Pair,Optical Fiber Fiber Mode SupportedMulti-mode Fiber Optic Cable Wavelength850 nm Fiber Optic Cable Core/Cladding Specification50/125 µm,62.5/125 µm Network & Communication Ethernet TechnologyGigabit Ethernet Network Technology1000Base-SX,10/100/1000Base-T Power Description Power SourceAC Adapter Power Consumption65.50 W Physical Characteristics Form FactorWall Height1" Width3.3" Depth4.8" Weight (Approximate)2 lb Miscellaneous Package Contents SGPAT1039-105 Transceiver/Media Converter Power Cord (North America) Certifications & Standards EN55022 Class A EN55024 CE Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) Warranty Limited WarrantyLifetime WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
