TRENDnet 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports,TI-BG50611,Multi-Gigabit,4 x 2.G PoE++ Ports, 1 x 10G RJ-45 Port,1 x 10G SFP+ Port,Lifetime Protection, Black TRENDnet 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports,TI-BG50611,Multi-Gigabit,4 x 2.G PoE++ Ports, 1 x 10G RJ-45 Port,1 x 10G SFP+ Port,Lifetime Protection, Black
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports Quick Installation Guide Removable Terminal Blocks DIN-Rail And Wall Mount Kit
Application/Usage:
IP Camera
VoIP Phone
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

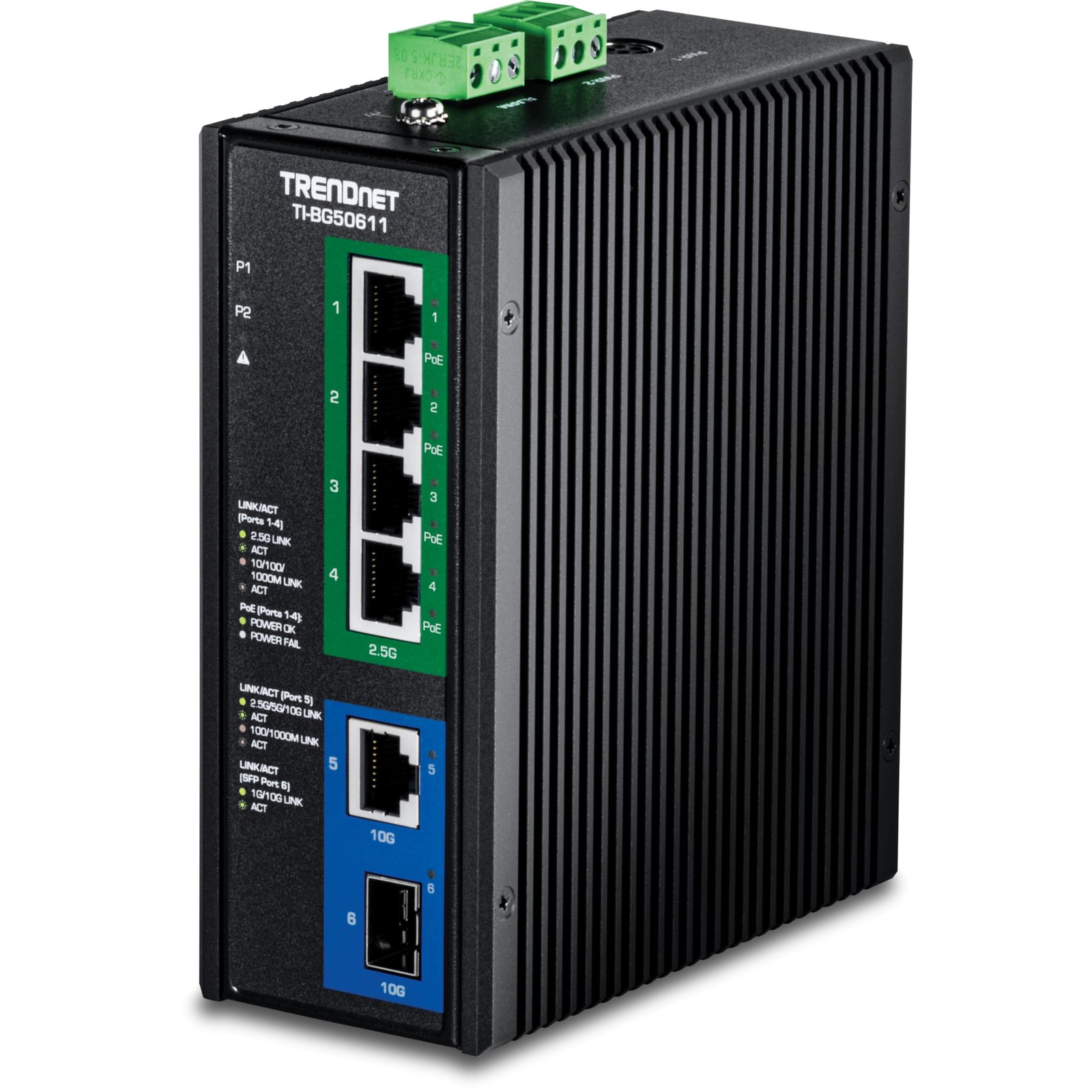

TRENDnet's 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports, model TI-BG50611, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial multi-gigabit PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). This hardened industrial PoE++ switch features four Ethernet 2.5G PoE++ ports, a 10G Ethernet port, and a 10G SFP+ port for longdistance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial multigigabit PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.
PoE++
A 240W PoE power budget supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.
Multi-Gigabit
Equipped with four 2.5G Ethernet ports, one 10G Ethernet port, and one 10G SFP+ port that provides highspeed network connection.
Industrial Hardened Design
Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F).
FEATURES | PoE Power Budget
A 240W PoE power budget on this multi-gig DIN-Rail PoE++ switch supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.
Fast PoE
With Fast PoE, the industrial multigig PoE++ switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up.
Network Ports
4 x 2.5G PoE++ ports, 1 x 10G RJ-45 port, and 1 x 10G SFP+ port.
DIN-Rail/Wall Mounts
Metal enclosure with included DIN-Rail and wall mount hardware.
IP50 Housing
IP50 rated metal housing protects the industrial multi-gigabit PoE++ switch from most environments with dust particles.
Switching Capacity
60Gbps switching capacity.
Redundant Power
Dual power inputs for redundancy with overload current protection (power supplies sold separately, models TI-S48048, TI-S24052, 48VDC3000).
Alarm Relay
Industrial PoE++ switch's alarm relay is triggered by power failure of primary and/or redundant power.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.
Rated for Extreme Environments
Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (- 40° - 167° F) for harsh environments.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
Package Contents:
- 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports
- Quick Installation Guide
- Removable Terminal Blocks
- DIN-Rail And Wall Mount Kit
SpecificationManagement & ProtocolsManageableNoPower DescriptionRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Plug/Connector TypeTerminal BlockPower Source
PoE Budget240 WFrequency
Input Voltage
- 48 V DC
- 57 V DC
- 120 V AC
- 230 V AC
PoE (RJ-45) PortYesPower Consumption10.20 WPhysical CharacteristicsProduct MaterialMetalForm Factor
- DIN Rail Mountable
- Wall Mountable
Weight (Approximate)1.39 WarrantyLifetimeI/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFP+Number of SFP+ Slots1General InformationBrand NameTRENDnetMarketing Information TRENDnet's 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports, model TI-BG50611, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial multi-gigabit PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). This hardened industrial PoE++ switch features four Ethernet 2.5G PoE++ ports, a 10G Ethernet port, and a 10G SFP+ port for longdistance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial multigigabit PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls. PoE++ A 240W PoE power budget supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power. Multi-Gigabit Equipped with four 2.5G Ethernet ports, one 10G Ethernet port, and one 10G SFP+ port that provides highspeed network connection. Industrial Hardened Design Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F). FEATURES | PoE Power Budget A 240W PoE power budget on this multi-gig DIN-Rail PoE++ switch supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power. Fast PoE With Fast PoE, the industrial multigig PoE++ switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up. Network Ports 4 x 2.5G PoE++ ports, 1 x 10G RJ-45 port, and 1 x 10G SFP+ port. DIN-Rail/Wall Mounts Metal enclosure with included DIN-Rail and wall mount hardware. IP50 Housing IP50 rated metal housing protects the industrial multi-gigabit PoE++ switch from most environments with dust particles. Switching Capacity 60Gbps switching capacity. Redundant Power Dual power inputs for redundancy with overload current protection (power supplies sold separately, models TI-S48048, TI-S24052, 48VDC3000). Alarm Relay Industrial PoE++ switch's alarm relay is triggered by power failure of primary and/or redundant power. Jumbo Frame Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance. Rated for Extreme Environments Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (- 40° - 167° F) for harsh environments. Shock and Vibration Resistant Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6). Product TypeEthernet SwitchProduct Name6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G PortsManufacturerTRENDnetManufacturer Part NumberTI-BG50611Product ModelTI-BG50611TitleProduct TitleTRENDnet 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports,TI-BG50611,Multi-Gigabit,4 x 2.G PoE++ Ports, 1 x 10G RJ-45 Port,1 x 10G SFP+ Port,Lifetime Protection, Black (TIBG50611)Technical InformationFeatures
- 4 x 2.5 Gigabit Ethernet PoE++
- 1 x 10 Gigabit Ethernet Network
- 1 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports5Media & PerformanceEthernet Technology
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
Media Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3an
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
ReliabilityMTBF83000 Hour Shipping
