• Tripp
• Lite SMART2500XLHG SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade
• Line-Interactive UPS, Extended Run, SNMPWEBCARD Option, Full Isolation,
• USB, DB9 Serial
• 2200VA line-interactive extended-run tower UPS

• UL 60601-1 Approved for use within the Patient Care Vicinity

• Approved to IEC60601-1-2:2014, 4th Ed.

• Lowers cumulative leakage current of connected equipment to under 100 µA

• Floating AC output prevents noise coupling

UL

60601-1 compliance is required

for UPS systems within patient care areas. Get complete, compliant power

protection with Tripp Lite’s SMART2500XLHG SmartPro® Medical UPS

System. The SMART2500XLHG provides a high load capacity 2200VA/1920W,

full UL 60601-1 3rd edition compliance. Protects connected medical

equipment against data loss, downtime and equipment damage due to power

outages, voltage fluctuations and transient surges. It features a USB

port, input locking clamp, equipotential earth bonding lug, 4 NEMA

5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet

options. The SMART2500XLHG offers a complete power protection solution

for clinical labs, diagnostic imaging, ophthalmology, medical equipment,

imaging and other devices requiring medical grade protection. With

built-in Faraday shielding, the SMART2500XLHG provides full line

isolation and reduces the cumulative leakage current of connected

equipment to less than 100 μA for optimal safety in patient care areas.

Full isolation also provides continuous noise filtering and enhanced

common mode surge suppression. Featuring advanced line-interactive

operation, it provides regulated 120V nominal output without using

battery power during brownouts and overvoltages. Large internal

batteries support connected equipment during blackouts and optional

external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended

runtime tailored to your application. The SMART2500XLHG features a USB

communication port that works with included PowerAlert software to

provide UPS and site power monitoring plus automatic file saves and safe

unattended shutdown of connected equipment in the event of a prolonged

power failure.Application Usage

This UPS contains a lead acid battery designed to be connected

continuously to an AC power source, except during brief power outages.

It is not intended for frequent charge/discharge cycles, such as mobile

cart applications where the UPS is often disconnected from the power

source•Ideal UPS protection for applications in patient-care vicinities where

UL 60601-1 3rd edition listed medical electrical equipment is required

•Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line

•Floating AC output prevents noise coupling from noisy hospital ground circuits

•Full line isolation prevents shock potential and operational problems in sensitive electronic equipment

•Provides connected equipment with continuous power during short and long duration loss of commercial power

•Expandable runtime is available with the addition of one or more external battery packs (BP48V24-2U and BP24V60RT-3U)

•Line-interactive voltage regulation corrects brownouts and

overvoltages from 83V to 143V back to usable 120V output levels without

using battery power

•Resistant to electrostatic discharge

•Supports loads up to 2200VA/1920W

•13 min. half-load runtime (1100VA/960W), 4 min. full load runtime (2200VA/1920W)

•Input: IEC320-C20 inlet with locking clamp; Output: 4 NEMA 5-15/20R and 4 IEC C13

•Built-in USB, DB9 (RS-232) and optional SNMPWEBCARD accessory monitoring options

•PowerAlert unattended shutdown software and complete cabling included

•Offers line isolation and continuous noise filtering

•940-joule surge protection rating

•5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace

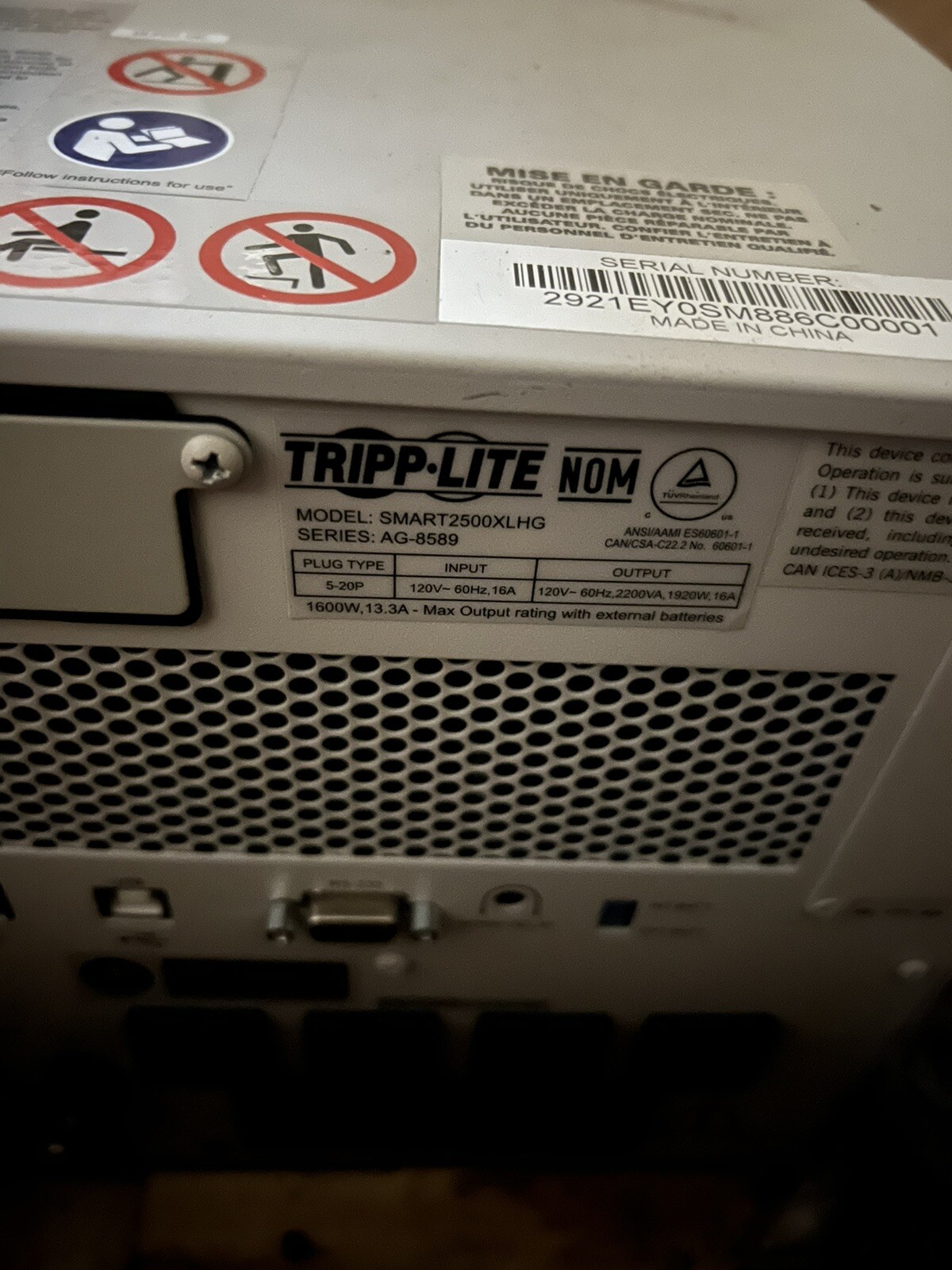

•Battery replacement door and back panel grounding lug

•Relay I/O card allows users to communicate UPS status and events via 6 configurable contact closure outputs
