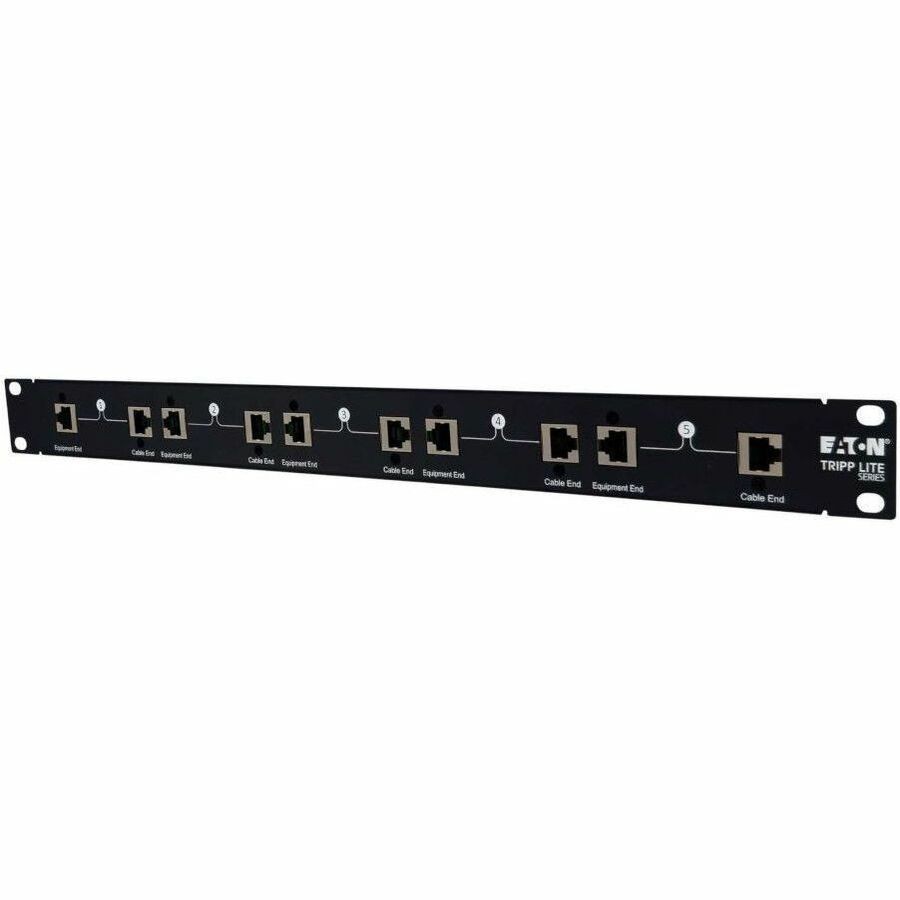

Tripplite B110SPPOECA5 In-Line PoE++ Surge Protector 1Gbps Tripplite B110SPPOECA5 In-Line PoE++ Surge Protector 1Gbps
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: B110-SPPOEC-A5 In-Line PoE++ Surge Protector Grounding Wire, 1 ft. (0.3 m) Grounding Wire Screw 4 x Rack-mounting Screws Installation Instructions
Certifications & Standards: IEC 61000 CE (Europe) IEEE 802.3af PoE IEEE 802.3at PoE+ UKCA
TAA Compliant: Yes
Application/Usage:
A/V Equipment
Camera
Wireless Access Point
Network Switch
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Product Description
This item is brand-new, factory sealed.
Features | 1U In-Line Surge Protector Keeps Your PoE Equipment Safe
Ideal for home/corporate IP security/building cameras, wireless access points, network switches and other appropriate network/PoE devices, the B110-SPPOEC-A5 protects connected Power over Ethernet (PoE) equipment from damage caused by electrostatic discharge (ESD) and power surges. Just connect it between your source, such as an Ethernet switch, and up to five PoE devices using Cat5e/6 cables. The 1U rack panel streamlines circuit protector placement for your entire system, typically located in the rear of a 19-inch rack for input/output lines.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Both mid-span and end-span PoE are supported. The B110-SPPOEC-A5 meets the following IEC/EN regulations: IEC 61000-4-2 for ESD (8k/15kV), IEC 61000-4-4 for EFT (2kV, 5KHz/100KHz) and IEC 61000-4-5 for (2KA 8/20µs, 6KV 8/20µs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately
This PoE++ in-line surge protector meets 802.3af, 802.3at and 802.3bt Type 4 IEEE standards, while supporting data transmission speeds up to 1 Gbps. No software or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient rack installation in 1U of space.
TAA-Compliant for GSA Schedule Purchases
The B110-SPPOEC-A5 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- B110-SPPOEC-A5 In-Line PoE++ Surge Protector
- Grounding Wire, 1 ft. (0.3 m)
- Grounding Wire Screw
- 4 x Rack-mounting Screws
- Installation Instructions
SpecificationPower DescriptionMaximum Surge Current2 kAPhysical CharacteristicsProduct Material
FeaturesPlug & PlaySupported Ethernet Speed128 MBEnvironmental ConditionsMaximum Storage Temperature122°F (50°C)Maximum Operating Temperature104°F (40°C)Minimum Storage Temperature5°F (-15°C)Minimum Operating Temperature32°F (0°C) Shipping
