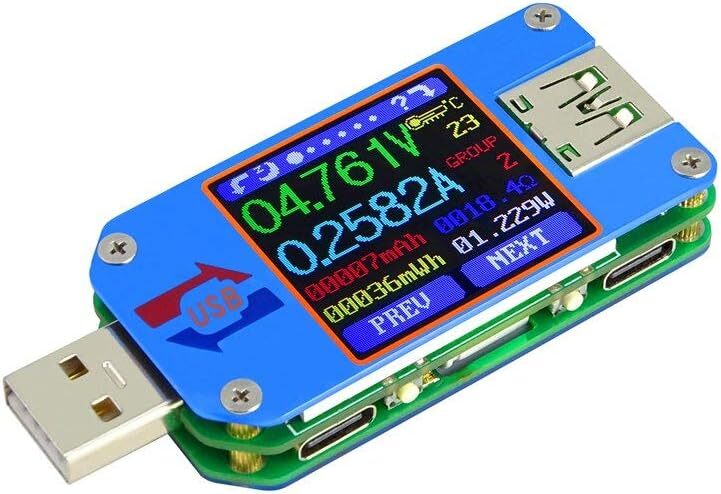

UM25C USB Meter Tester Voltage Current Bluetooth Battery Power Charger Voltmeter Ammeter Multimeter Tester, 1.44 Inch Color LCD Display USB 2.0 Type- C Cable Resistance Load Impedance Meter

Product Description

Technical Parameter:
Model :UM25C
Display screen: 1.44 Inch color LCD display
Voltage Current measurement range: 4-24.000V, 0-5.0000A
Voltage Current measurement resolution: 0.001V, 0.0001A
Capacity accumulation Energy sccumulation rannge: 0-99999mAh, 0-99999mWh
Voltage Current measurement accuracy: ±(0.5‰+2digits), ±(1‰+4digits)
Time measuremen range: 0-99h59min59s
Load impedance range: 0.8-9999.9 Ohm
Temperature range: -10～100 degree centigrade /0～200 Fahrenheit degree
Screen brightness setting: 0-5 levels
Auto screen off time: 0-9mins
Voltage Current graphing range: 0-24.000V, 0-5.0000A
Refresh rate: 2Hz
Quick charge recognition mode: QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG
Size: 71.2mmx30.5mmx12.4mm
Note:
1.UM25C is conmmunication version by Bluetooth connection.
2. PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 14 kinds language, chinese, english and Russia .... )
3, User manual, PC software installation instruction and PC software and Android APP download
link: forum.avhy.com
4, For Android APP :
A: APP only support android 5.0 and above . B: Allow APP to do in the background, not be cleaned.
C: allow APP self-starting.
D: Allow APP stay after screen locked, not be cleaned.
E: for desktop, when you use the bluetooth adapter to make bluetooth connection, Please don’t use the adapter own driver, and use the windows system bluetooth driver, otherwise the module can’t make SSP series port communication.
If you have installed the adaptor driver, you can uninstall it and unplug the adaptor, then plug in again, the system will install it automatically.
USB Load Module Feature:
Work Voltage Current: 5V, 1A/2A
Power: 10W-20W
Resistance: 5 Ohm -2.5 Ohm Swithcable
