UM25C USB Test Meter Voltage Current Bluetooth Battery Power Charger Multimeter For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

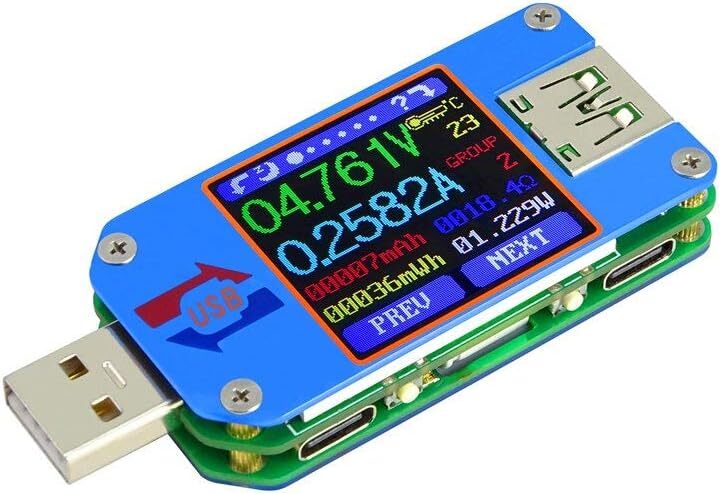

UM25C USB Test Meter Voltage Current Bluetooth Battery Power Charger Multimeter
Price: CN $26.95
Store CategoriesStore Categories
Programmable battery monitor
Battery State of Charge LED
Battery voltmeter ammeter LCD
AC Combo meter
Step-down Power Supply Module
Battery Tester With CT
DC Charge Discharge Meter
Multi Meter
Battery monitor bluetooth
Home automation
Wire tracker tracer
US Stock
UK Items
Model :UM25C Display screen: 1.44 Inch color LCD display Voltage Current measurement range: 4-24.000V, 0-5.0000A Voltage Current measurement resolution: 0.001V, 0.0001A Capacity accumulation Energy sccumulation rannge: 0-99999mAh, 0-99999mWh Voltage Current measurement accuracy: ±(0.5‰+2digits), ±(1‰+4digits) Time measuremen range: 0-99h59min59s Load impedance range: 0.8-9999.9 Ohm Screen brightness setting: 0-5 levels Auto screen off time: 0-9mins Voltage Current graphing range: 0-24.000V, 0-5.0000A Refresh rate: 2Hz Quick charge recognition mode: QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG Size: 71.2mmx30.5mmx12.4mm Note: 1.UM25C is conmmunication version by Bluetooth connection. 2. PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 14 kinds language, chinese, english and Russia .... ) 3, User manual, PC software installation instruction and PC software and Android APP download link: forum.avhy.com 4, For Android APP : A: APP only support android 5.0 and above . B: Allow APP to do in the background, not be cleaned. C: allow APP self-starting. D: Allow APP stay after screen locked, not be cleaned. E: for desktop, when you use the bluetooth adapter to make bluetooth connection, Please don’t use the adapter own driver, and use the windows system bluetooth driver, otherwise the module can’t make SSP series port communication. If you have installed the adaptor driver, you can uninstall it and unplug the adaptor, then plug in again, the system will install it automatically. USB Load Module Feature: Work Voltage Current: 5V, 1A/2A Power: 10W-20W
