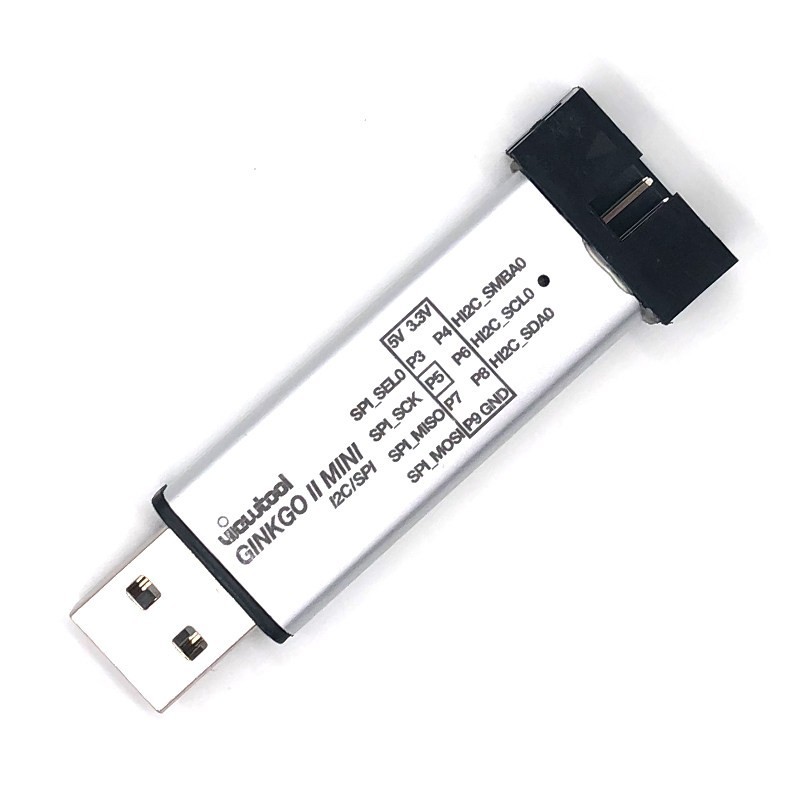

USB to SPI Mini Adapter Module GPIO/UART Android Raspberry PiMicro Wire Ginkgo2
- SPI busdevices, chip control and debugging
- Testing ofSPI-interface sensors
- Programming ofSPI memory (EEPROM, Flash)
- Slave mode toassist in the development of SPI master programmes
- Pulse counter
- Analoguevoltage measurement, GPIO input/output control
- PWM signaloutput
- USB to dualserial port/TTL (compatible with RS485 bus mode)
- Supports thefour major operating systems: Linux, macOS, Windows and Android; compatiblewith Raspberry Pi; supports PMPbus and SMBus, as well as MicroWire;
- Powered viaUSB bus, requiring no external power supply; provides 5V and 3.3V output with acurrent of up to 500mA, featuring short-circuit protection;
- Can functionas an SPI bus host (Host/Master) or slave (Slave);
- Hardware SPIfrequency up to 36 MHz, freely adjustable;
- Supportscontrol of the nRF24L01 chip and MFRC522 card reader chip, with accompanyingopen-source software;
- Multiple setsof free host software to meet the practical needs of different users, withseamless integration with LabVIEW;
- SupportsUSB-to-UART bus conversion, as well as GPIO input/output control and otherfunctions;
- A single PCcan connect to multiple SPI adapters for simultaneous operation (supporting upto 100);
- Supports datatransmission in Block mode, software mode, full-duplex mode, half-duplex modeand single-bus mode;
- Users canupdate and upgrade the software free of charge; the same hardware can beconfigured to perform different functions via software updates (e.g. convertingan SPI adapter to a CAN or I2C adapter);
- Fully openlow-level interfaces for data retrieval, enabling secondary development;provides detailed function documentation and application examples for variousprogramming languages (LabVIEW, C#, VC++, Qt, Python, LabWindows/CVI, C++Builder, VB, VB.NET, Delphi, LabVIEW), along with secondary developmenttemplates, sample code and documentation;
- Customisationof hardware, silk-screen printing, drivers and application software isavailable, with a minimum order of 100 units for hardware customisation and 10units for software customisation;
Listof features：
Features
USB-SPI
USB-UART
USB-GPIO
USB-XXX
- USBbus-powered, USB 2.0 communication interface;
- Extremelyportable;
- SPI bus rateup to 36 Mbps; maximum data transfer rate between the SPI bus and the PC up to800 KByte/s;
- 3 GPIOchannels, configurable as input or output pins; all pins are TTL-levelcompatible;
- 1 UARTchannel, capable of outputting RS485 bus control signals (DE), with a maximumbaud rate of 2.25 Mbps;
- Theaforementioned peripheral devices may or may not also function as pin limits;
- Safe voltagerange: 0 ~5V;
- Item size:66.5mm×20.5mm×8.5mm; Weight: 9g
- Operatingtemperature range: -40°C ~85°C;
