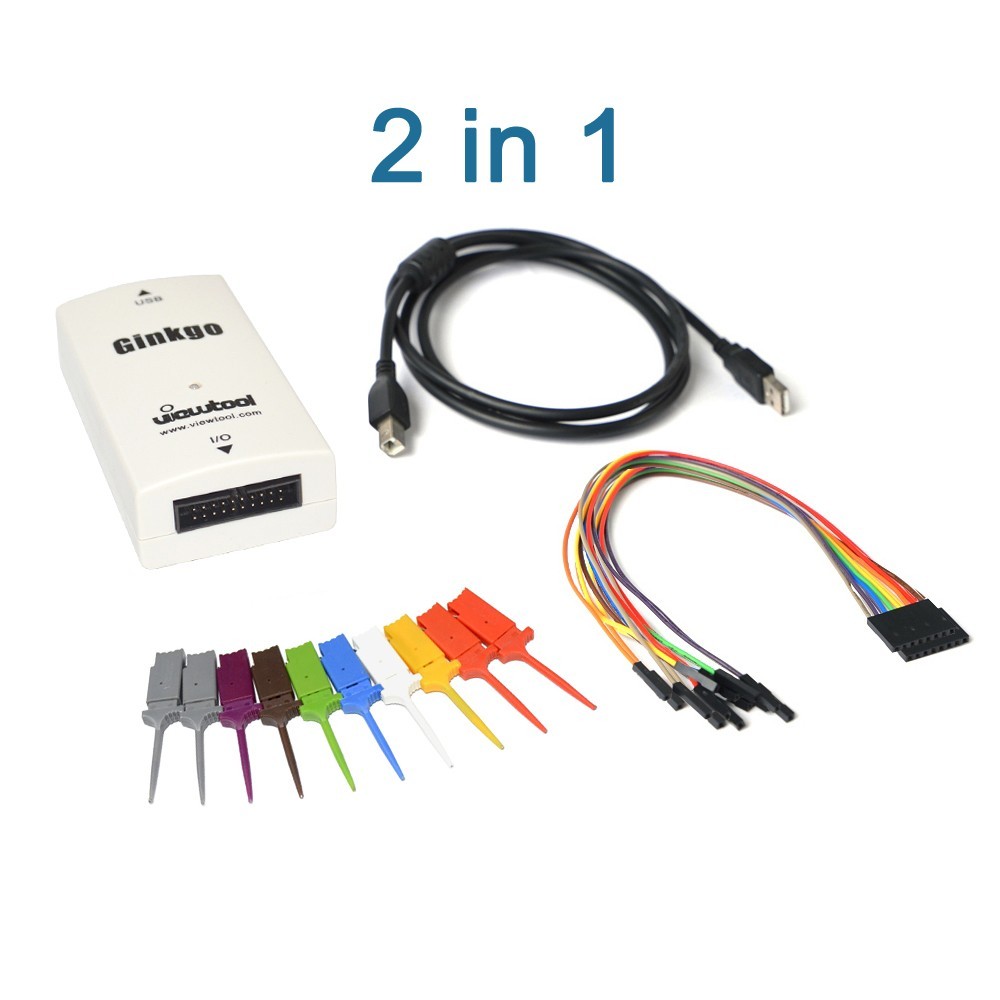

Ginkgo USB to I2C/IIC/SPI Adapter Pi
The windowsdriver of Ginkgo series product has passed microsoft driver signaturecertificate, it's not necessary to use "Disable driver signatureenforcement" in all windows system.
- Control anddebugging of I2C and SPI bus devices and chips;
- Testing ofsensors with I2C and SPI interfaces;
- Reading andwriting data to I2C and SPI memory (EEPROM, Flash);
- Faultdetection and repair of I2C bus devices;
- Control ofPMBus and SMBus bus interface chips;
- Assisting inthe development of I2C and SPI master programmes via slave mode;
- Pulse counter;
- Analoguevoltage measurement and GPIO input/output control;
- PWM signaloutput;
- USB to dualserial port/TTL conversion (compatible with RS485 bus mode);
* This adaptersupports both USB-I2C and USB-SPI functions simultaneously. The USB-CANfunction has been removed; please do not flash any other firmware, as this willprevent the device from functioning correctly. If you accidentally flash otherfirmware, please use the bootloader to restore the original firmware;
Features:
- Supports thethree major operating systems: Windows, Linux and MAC OS;
- SupportsAndroid and Raspberry Pi;
- USBbus-powered, requiring no external power supply; provides 5V and 3.3V poweroutputs with a maximum current of 500mA and short-circuit protection;
- Can functionas an I2C and SPI bus host (Host/Master) or slave (Slave), enablingofferirectional adaptation between USB and I2C/SPI buses;
- 2-channelhardware I2C (standard mode) and 8-channel software I2C (GPIO mode); hardware I2Cfrequency up to 1.2 MHz, software I2C frequency up to 400 kHz, with freelyadjustable Frequencies;
- 5-channel chipselect signal outputs, with frequencies up to 36 MHz, freely adjustable;
- Supports PMBusand SMBus, providing dedicated interface libraries for both buses;
- Supportscontrol of the nRF24L01 chip and the MFRC522 card reader chip, withaccompanying open-source software;
- Multiple setsof free host software to meet the practical needs of different users,seamlessly integrating with LabVIEW;
- SupportsUSB-SDI12, USB-EasyScale and USB-UART bus conversion, as well as functions suchas counter, PWM output, ADC sampling and GPIO input/output control;
- MultipleUSB-I2C/SPI adapters can be connected to a single PC for simultaneous operation(supports up to 100);
- Supports blockmode data transmission, as well as software mode, full-duplex mode, half-duplexmode and single-bus mode;
- SupportsUSB-RS485, outputting RS485 bus control signals (DE), with a maximum baud rateof 2.25 Mbps;
- Users canupdate and upgrade the software free of charge;
- Fully openlow-level interface functions are available for secondary development, withdetailed function documentation and application examples provided for variousprogramming languages and platforms (LabVIEW, C#, VC, Qt, Python,LabWindows/CVI, C++ Builder, VB, VB.NET, Delphi, CodeBlocks, GCC, Eclipse,Android Studio…);
Performance:
- USBbus-powered, USB 2.0 communication interface;
- 2-channelhardware I2C (standard mode), 8-channel software I2C (GPIO mode); hardware I2Cdata rate: 1.2 Mbps; software I2C data rate: 400 Kbps; bus speed freelyadjustable;
- SPI bus datarate up to 36 Mbps; data exchange rate between the SPI bus and the PC up to 800KByte/s;
- 8-channel ADC(12-bit) for measuring analogue voltage signals (0～3.3 V), with a maximumsampling rate of 1 MHz;
- 16 GPIO pins,configurable as input or output pins; all pins are TTL-level compatible;
- 4 pulsecounter input channels, capable of counting both rising and falling edges;
- 2 UARTs,capable of outputting RS485 bus control signals (DE), with a maximum baud rateof 2.25 Mbps;
- 8 PWM signaloutputs, with adjustable duty cycle (0%～100%) and adjustable output frequency (1 Hz～20MHz);
- 16 EasyScalebus signal outputs, with adjustable bus timing;
- 2 SDI12 busoutputs (requires an external transceiver), with dedicated command transmissionand reception functions specifically for SDI12;
- Safe voltagerange: 0～5 V;
- Size:103mm×53mm×28mm; Weight: ≈200g
- Operatingtemperature range: -40 °C～85 °C;
